EAN-Nr.

4011334029519

Packaging

10 Pieces

Entry for small connector, com-tech 4505

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Must-have accessories

See all (14)

Centre plate for loudspeaker soc. out., S.1/B.3/B.7, p. white glossy

Centre plate for loudspeaker soc. out., S.1/B.3/B.7, p. white, matt, plastic

Centre plate for loudspeaker soc. out., B.3/B.7, ant., matt

Centre plate for loudspeaker soc. out., B.7, al., matt, lacq.

Centre plate for loudspeaker soc. out., R.1/R.3, p. white glossy

Centre plate for loudspeaker soc. out., R.1/R.3, black glossy

Accessories/spare parts for domestic switching devices 1 products available

Technical characteristics

Rated operational voltage Ue

230 - 230 V

Frequency

50 - 60 Hz

230 V incandescent and halogen lamp

2,300 W

Switch off delay time

40 s
Switch on delay time

10 s

Storage/transport temperature

-30 - +60 °C

Cross-section flexible conductor

1 - 4 mm²
Cross-section rigid conductor

1 - 4 mm²

Installation mode

With pipe clamp for mast fixing, Installation possible on flush-mounted box, For wall and mast assembly
Type of connection

With screw terminals

Switching current

10 A

Height

71 mm
Width

80 mm
Depth

35.30 mm

Downloads

Product Image 4505

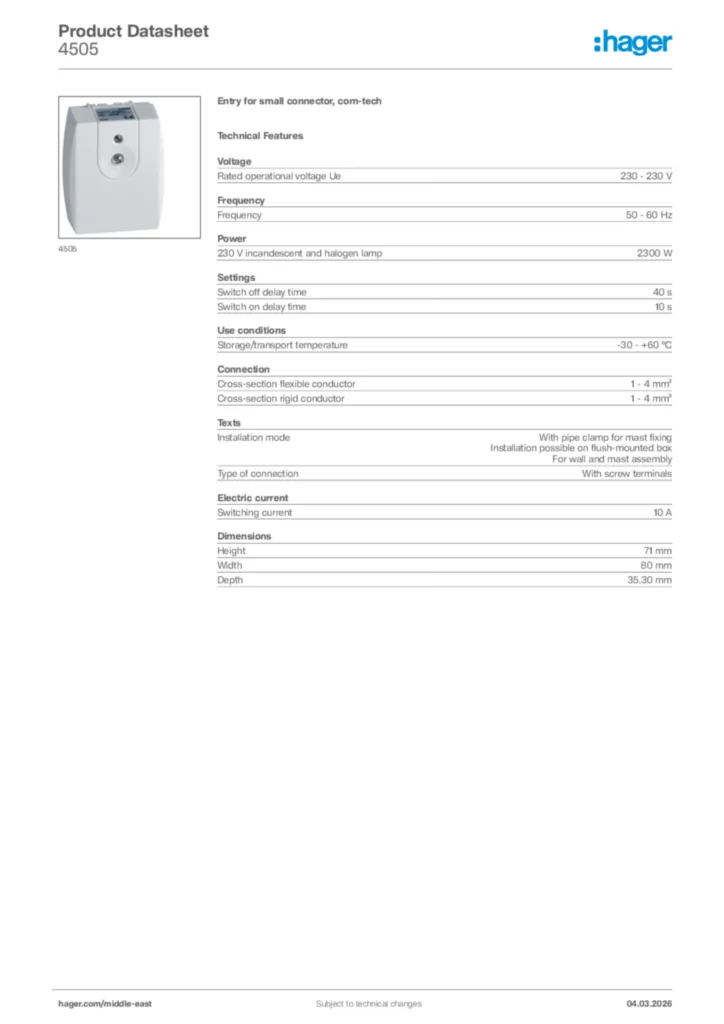

Product datasheet

Hager Product data sheet 4505

Entry for small connector, com-tech

PDF
Declaration of conformity

Declaration of conformity International 2023-02-13

PDF

312,31 kB
