SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m. 44713515
EAN-Nr.
4011334390435
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (7)
Mandatory accessories
-
13303505Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
13293515Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
6719323505Surface-mtd housing 2gang hor., frame surface-mtd, W.1 ECO, grey/light grey matt
-
6118913505W.1 ECO 1G box empty grey
-
6719333505Surface-mtd housing 2gang vert., frame surface-mtd, W.1 ECO, grey matt
-
13293505Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
13283505Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
Technical characteristics
Dimensions
-
Width71 mm
-
Height71 mm
-
Depth67 mm
Safety
-
Ingress Protection (IP) classIP20
Electric current
-
Switching current10 A
Use conditions
-
Operating temperature-15 - 30 °C
Materials
-
MaterialThermoplastic
-
ColourGrey
Texts
-
FunctionUnlocking by 1/4 rotation
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

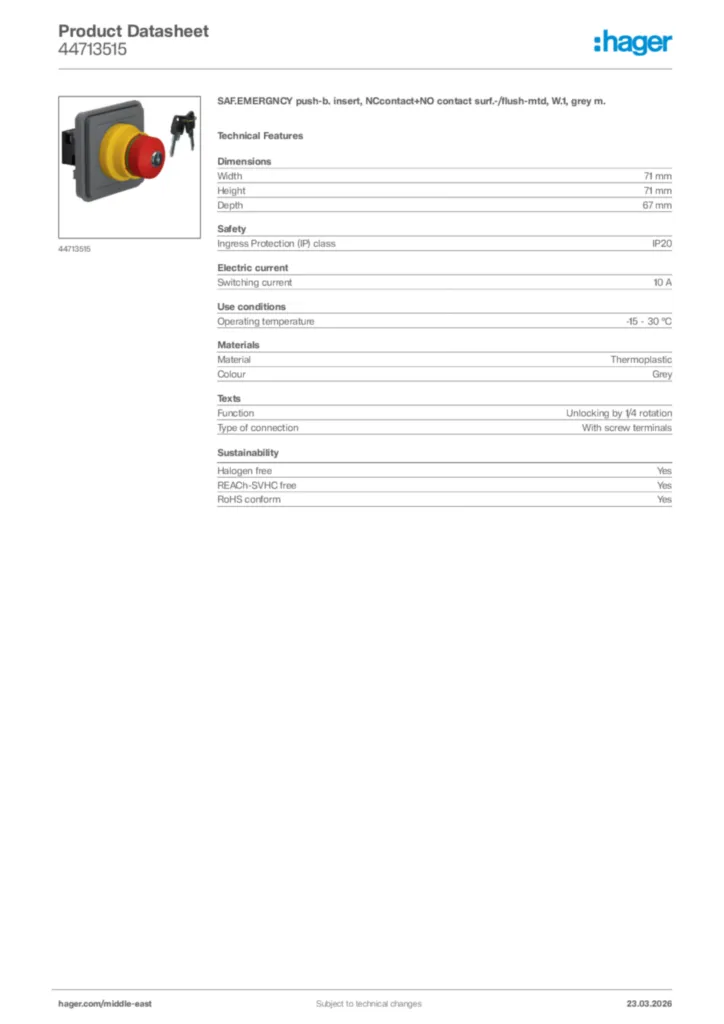

Product datasheet
Hager Product data sheet 44713515
SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
PDF -
Technical appendix (single product)
Splash-protected range W.1 - Chemical resistance (EN, 07-2021)
Technical appendix (single product) en-GB 2015-07-13
PDF518,42 kB -
Declaration of conformity
Declaration of conformity International 2021-11-04
PDF82,21 kB
Declaration of conformity International 2022-04-26
PDF164,12 kB
More documentation
