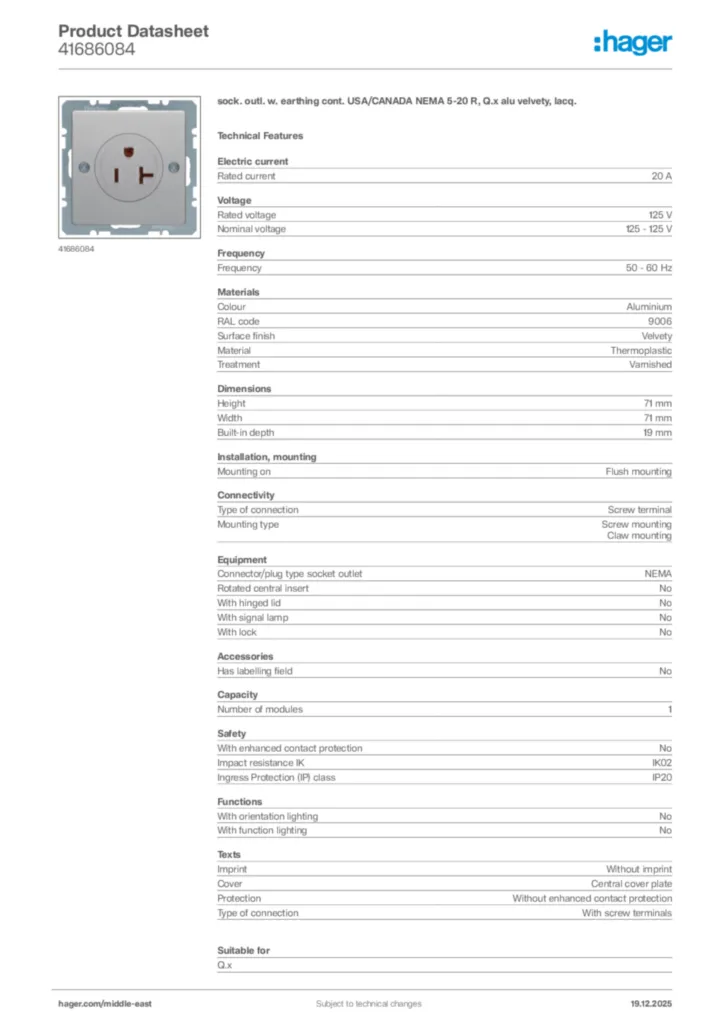

sock. outl. w. earthing cont. USA/CANADA NEMA 5-20 R, Q.x alu velvety, lacq. 41686084
EAN-Nr.
4011334446552
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 143 products available
Referenced by
-
10136016Frame 3gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10226014Frame 2gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10156014Frame 5gang with labelling field vertical Q.1 alu velvety, lacquered
-
10146014Frame 4gang with labelling field vertical Q.1 alu velvety, lacquered
-
10136014Frame 3gang with labelling field vertical Q.1 alu velvety, lacquered
-
10126014Frame 2gang with labelling field vertical Q.1 alu velvety, lacquered
-
10116014Frame 1gang with labelling field Q.1 alu velvety, lacquered
-
10156016Frame 5gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10146016Frame 4gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10126019Frame 2gang vert., lab. field, Q.1, p. white velvety
-
10246019Frame 4gang hor., lab. field, Q.1, p. white velvety
Technical characteristics
Electric current
-
Rated current20 A
Voltage
-
Rated voltage125 V
-
Nominal voltage125 - 125 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishVelvety
-
MaterialThermoplastic
-
TreatmentVarnished
Dimensions
-
Height71 mm
-
Width71 mm
-
Built-in depth19 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletNEMA
-
Rotated central insertNo
-
With hinged lidNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsQ.x
