SCHUKO soc.out.,lab.field,enhncd contact prot.,screw-in lift term.,S.1/B.3/7,wh. 41491909
EAN-Nr.
4011334234203
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 150 products available
Referenced by
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
10159939Frame 5gang, S.1, al. matt
-
10159949Frame 5gang, S.1, ant., matt
-
10113001Frame 1gang, B.3, al. brown/ant. matt, al. anodised
-
10113004Frame 1gang, B.3, al./ant. matt, al. anodised
-
10113005Frame 1gang, B.3, al. black/ant. matt, al. anodised
-
10113016Frame 1gang, B.3, al. gold/ant. matt, al. anodised
-
10113025Frame 1gang, B.3, al. black/p. white matt, al. anodised
-
10113046Frame 1gang, B.3, al. gold/p. white matt, al. anodised
-
10113904Frame 1gang, B.3, al./p. white matt, al. anodised
-
10123001Frame 2gang, B.3, al. brown/ant. matt, al. anodised
-
10123004Frame 2gang, B.3, al./ant. matt, al. anodised
-
10123005Frame 2gang, B.3, al. black/ant. matt, al. anodised
-
10123016Frame 2gang, B.3, al. gold/ant. matt, al. anodised
-
10123021Frame 2gang, B.3, al. brown/p. white matt, al. anodised
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10143005Frame 4gang, B.3, al. black/ant. matt, al. anodised

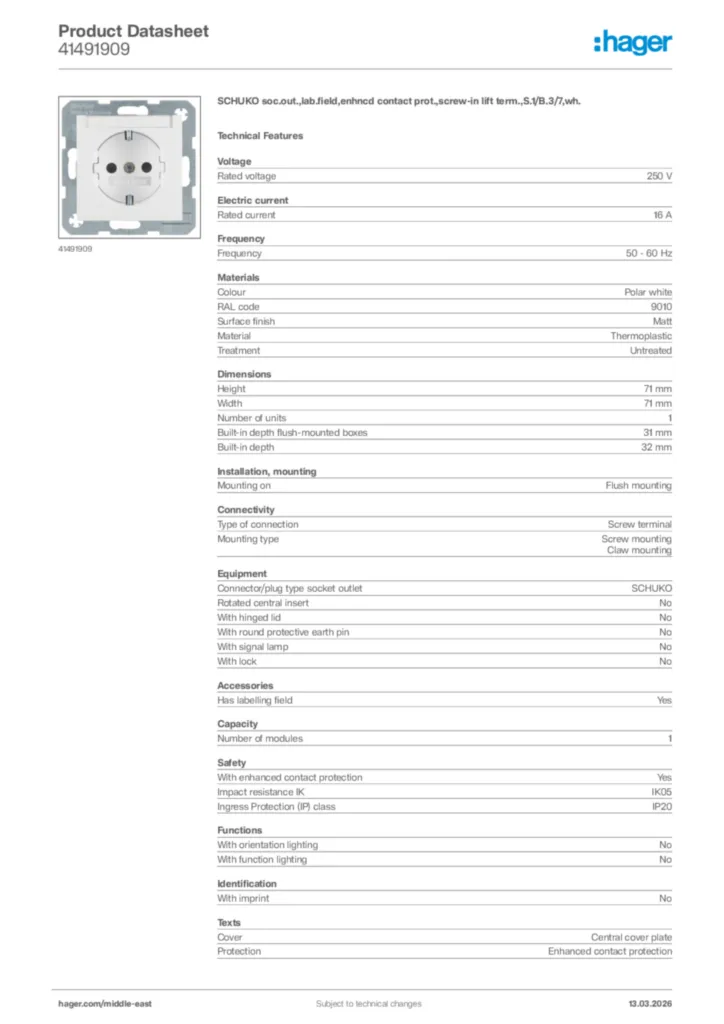

Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldYes
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
More documentation
Discover our other products of this range
-
5
-
1
47438982SCHUKO soc. out., S.1, white glossy -
2
47238982SCHUKO soc. out., enhncd contact prot., S.1, white glossy -
3
41438982SCHUKO soc. out., screw-in lift terminals, S.1, white glossy -
4
41238982SCHUKO soc. out., enhncd contact prot., screw-in lift terminals, S.1, white gl. -
5
47431404SCHUKO soc. out., B.7, al., matt, lacq.
