SCHUKO soc.out.,mounting orient. var. in 45°step,screw-in lift ,1930/glass,wh 414520
EAN-Nr.
4011334215271
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 21 products available
Referenced by
-
138109Frame 1gang, 1930, p. white glossy
-
138131Frame 3gang, 1930, black glossy
-
138139Frame 3gang, 1930, p. white glossy
-
138121Frame 2gang, 1930, black glossy
-
138129Frame 2gang, 1930, p. white glossy
-
1094Glass cover end plate f. rot. switch/spring-return push-button, clear gl.
-
1095Glass cover centre plate f. rot. switch/spring-return push-button, clear gl.
-
1090Glass cover plate for rot. switch/spring-return push-button, clear glossy
-
138201Frame, 1gang for centre plate Ø 58 mm, 1930, black glossy
-
138209Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
-
138101Frame 1gang, 1930, black glossy
-
138169Frame 1gang, 1930 Porzellan, porcelain, p. white glossy
-
138141End frame, 1930, black glossy
-
138149Eend frame, 1930, p. white glossy
-
138151Centre frame, 1930, black glossy
-
138159Centre frame, 1930, p. white glossy
-
109200Glass end frame, clear glossy
-
109300Glass centre frame, clear glossy
-
1102Glass frame 2gang, clear glossy
-
1091Glass frame 1gang, clear glossy
Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialDuroplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth42 mm
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertYes
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsSerie 1930 / Serie Glas
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

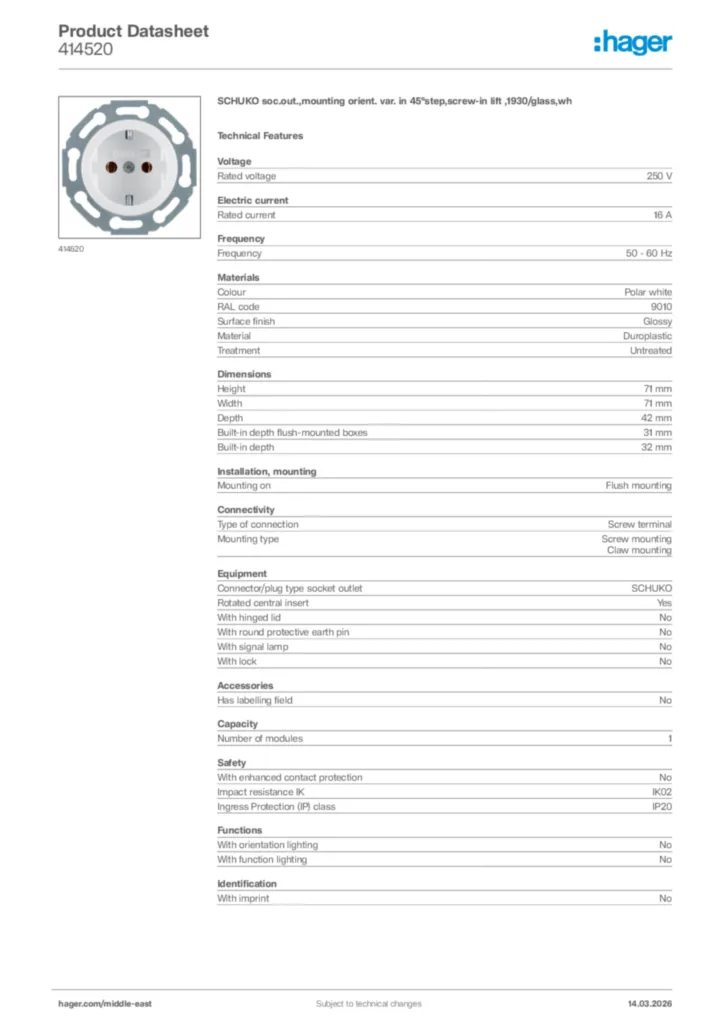

Hager Product data sheet 414520
