SCHUKO soc.out. LED,labfield,enhncd contact prot.,screw-in lift term.,S1/B3/7,wh 41108989
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Polar white
Polar white
White
Complete your system
Compatible products
-
Referenced by 149 products available
Referenced by
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
10159939Frame 5gang, S.1, al. matt
-
10159949Frame 5gang, S.1, ant., matt
-
10113001Frame 1gang, B.3, al. brown/ant. matt, al. anodised
-
10113004Frame 1gang, B.3, al./ant. matt, al. anodised
-
10113005Frame 1gang, B.3, al. black/ant. matt, al. anodised
-
10113016Frame 1gang, B.3, al. gold/ant. matt, al. anodised
-
10113025Frame 1gang, B.3, al. black/p. white matt, al. anodised
-
10113046Frame 1gang, B.3, al. gold/p. white matt, al. anodised
-
10113904Frame 1gang, B.3, al./p. white matt, al. anodised
-
10123001Frame 2gang, B.3, al. brown/ant. matt, al. anodised
-
10123004Frame 2gang, B.3, al./ant. matt, al. anodised
-
10123005Frame 2gang, B.3, al. black/ant. matt, al. anodised
-
10123016Frame 2gang, B.3, al. gold/ant. matt, al. anodised
-
10123021Frame 2gang, B.3, al. brown/p. white matt, al. anodised
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10143005Frame 4gang, B.3, al. black/ant. matt, al. anodised
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldYes
Capacity
-
Number of modules1
Controls and indicators
-
Type of lighting for the installation devicesIntegrated operating control light
Safety
-
With enhanced contact protectionYes
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingYes
Identification
-
With imprintNo
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

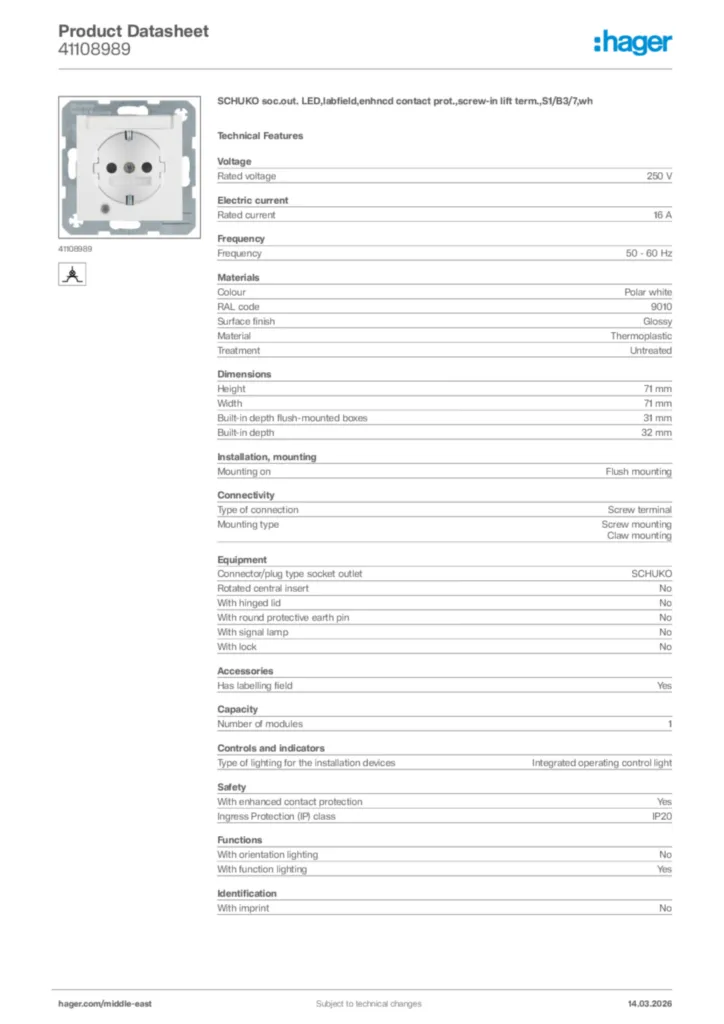

Product datasheet
Hager Product data sheet 41108989
SCHUKO soc.out. LED,labfield,enhncd contact prot.,screw-in lift term.,S1/B3/7,wh
PDF -
Declaration of performance
Declaration of performance en-GB 2026-02-20
PDF630,03 kB
