SCHUKO soc.out. LEDorient.,enhncd contact prot.,screw-in lift term.,R.classic,wh 41092089
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Polar white
Black
Polar white
Complete your system
Must-have accessories
138209
Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
Compatible products
-
Referenced by 166 products available
Referenced by
-
10122216Frame 2gang, R.3, glass black
-
10142289Frame 4gang, R.3, p. white glossy
-
10112245Frame 1gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10142245Frame 4gang, R.3, black glossy
-
10112209Frame 1gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10142209Frame 4gang, R.3, glass p. white
-
10112216Frame 1gang, R.3, glass black
-
10132274Frame 3gang, R.3, al./p. white
-
10132284Frame 3gang, R.3, al./black
-
10122284Frame 2gang, R.3, al./black
-
10112284Frame 1gang, R.3, al./black
-
10142274Frame 4gang, R.3, al./p. white
-
10112274Frame 1gang, R.3, al./p. white
-
10132216Frame 3gang, R.3, glass black
-
10142216Frame 4gang, R.3, glass black
-
10132289Frame 3gang, R.3, p. white glossy
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Controls and indicators
-
Type of lighting for the installation devicesIntegrated orientation light
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingYes
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsR.x, Serie R.classic
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

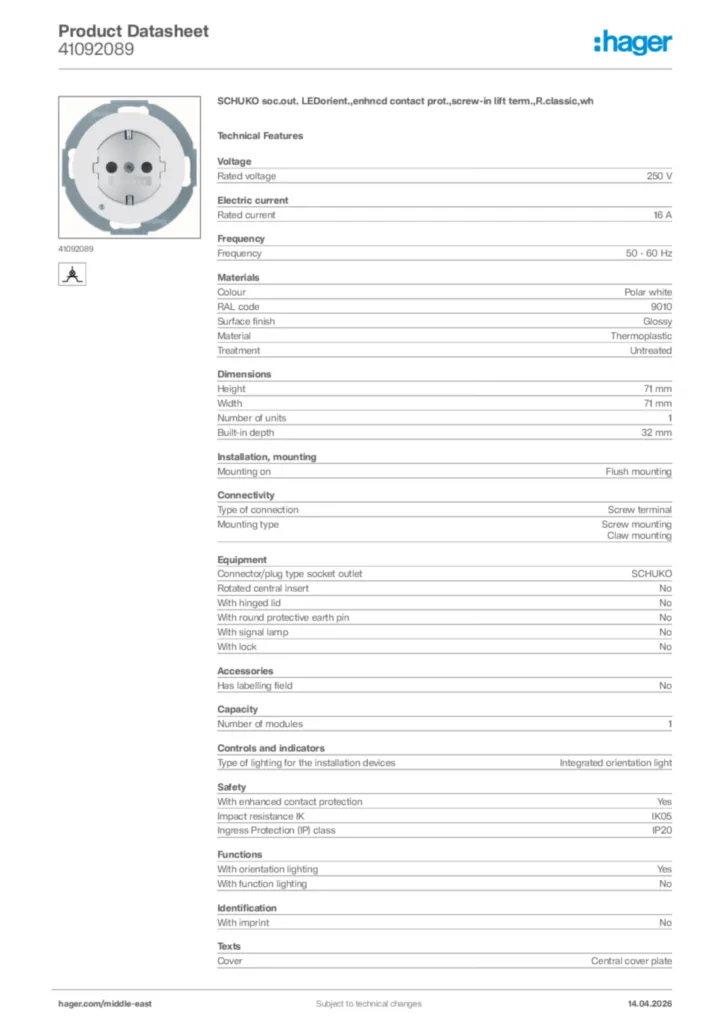

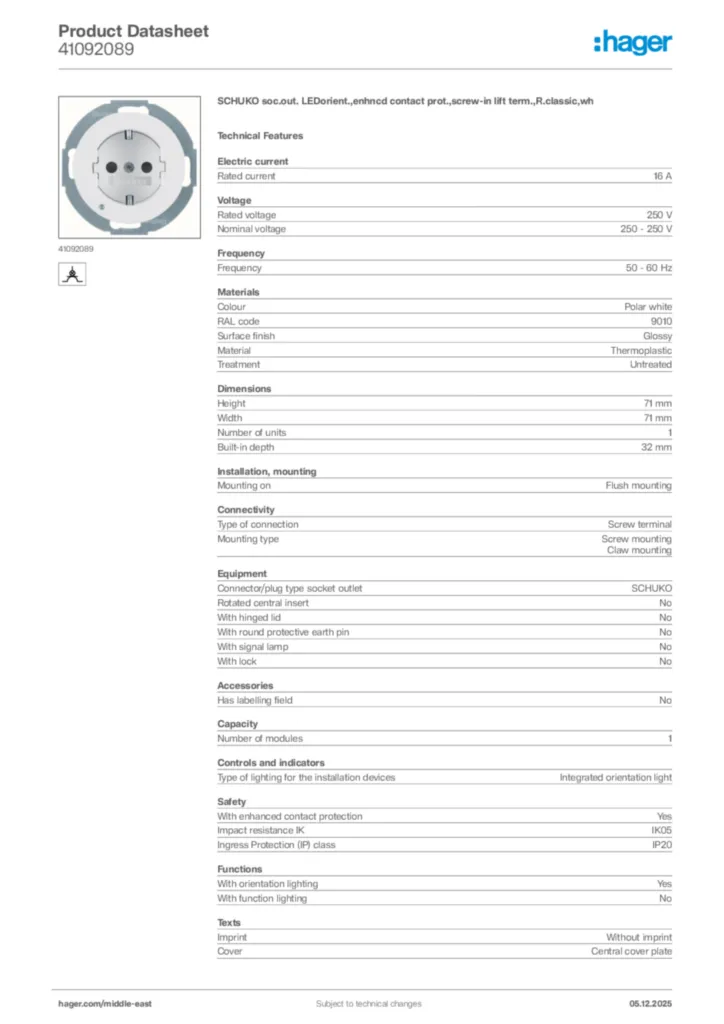

Hager Product data sheet 41092089
SCHUKO soc.out. LEDorient.,enhncd contact prot.,screw-in lift term.,R.classic,wh
PDF -
Installation manual
Manual for 4109xx - SCHUKO socket outlet with LED orientation light (DE-EN, 2021-02)
Installation manual en-GB, de-DE 2023-01-06
PDF217,42 kB -
Declaration of performance
Declaration of performance en-GB 2026-02-20
PDF630,03 kB
