Group spring-return push-button 2p, with neutral-pos., Serie 1930/Glas/R.classic 383803
EAN-Nr.
4011334489191
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 42 products available
Referenced by
-
10122009Frame 2gang, R.classic, glass p. white
-
1094Glass cover end plate f. rot. switch/spring-return push-button, clear gl.
-
10112074Frame 1gang, R.classic, al./p. white, luminium anodised
-
10122016Frame 2gang, R.classic, glass black
-
10122074Frame 2gang, R.classic, al./p. white, luminium anodised
-
10112014Frame 1gang, R.classic, stainless steel/p. white, metal matt finish
-
10122014Frame 2gang, R.classic, stainless steel/p. white, metal matt finish
-
10112004Frame 1gang, R.classic, stainless steel/black, metal matt finish
-
10122004Frame 2gang, R.classic, stainless steel/black, metal matt finish
-
10122084Frame 2gang, R.classic, al./black, al. anodised
-
10112016Frame 1gang, R.classic, glass black
-
10112009Frame 1gang, R.classic, glass p. white
-
10122045Frame 2gang, R.classic, black glossy
-
10112045Frame 1gang, R.classic, black glossy
-
10122089Frame 2gang, R.classic, p. white glossy
-
10112089Frame 1gang, R.classic, p. white glossy
-
138131Frame 3gang, 1930, black glossy
-
138139Frame 3gang, 1930, p. white glossy
-
138121Frame 2gang, 1930, black glossy
-
138129Frame 2gang, 1930, p. white glossy
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Control/operation elementShort rotary handle
-
Number of poles2
Materials
-
MaterialMetal, Plastic
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth42 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons0
-
Type of push buttonGroup push button
-
With feedback signal contactNo
Connectivity
-
Type of connectionScrew terminal
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
-
Related SystemsSerie 1930 / Serie Glas, Serie R.classic
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

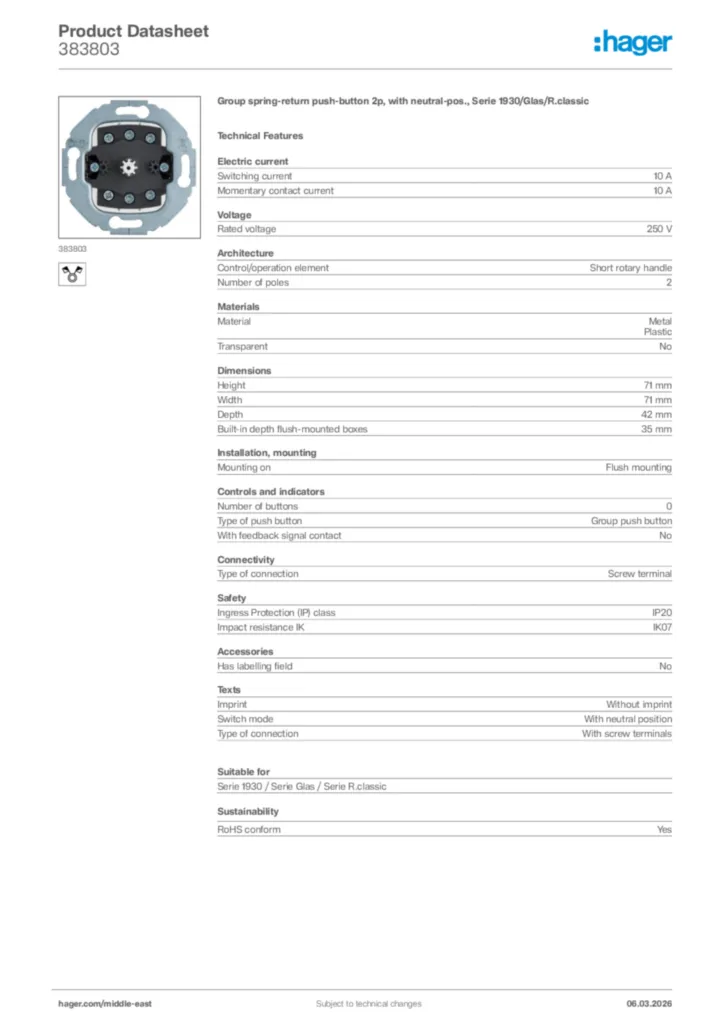

Product datasheet
Hager Product data sheet 383803
Group spring-return push-button 2p, with neutral-pos., Serie 1930/Glas/R.classic
PDF -
Declaration of conformity
EU Declaration of conformity
dc25-1007
PDF270,43 kB
