VGA socket outlet with screw-in lift terminals, Q.x, alu velvety, lacquered 3315416084
EAN-Nr.
4011334443773
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 10 products available
Complete your system
-
10146084
Frame 4gang Q.1 alu velvety, lacquered
-
10156084Frame 5gang Q.1 alu velvety, lacquered
-
10126094Frame 2gang Q.3 alu velvety, lacquered
-
10136094Frame 3gang Q.3 alu velvety, lacquered
-
10116094Frame 1gang Q.3 alu velvety, lacquered
-
10146094Frame 4gang Q.3 alu velvety, lacquered
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10116084Frame 1gang Q.1 alu velvety, lacquered
-
10126084Frame 2gang Q.1 alu velvety, lacquered
-
10136084Frame 3gang Q.1 alu velvety, lacquered
Technical characteristics
Connection
-
Connector/plug typeVGA
-
Conductor cross-section1.50 - 1.50 mm²
-
Number of connections1
Frequency
-
Frequency video160 MHz
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishVelvety
-
MaterialMetal, Plastic
-
TreatmentVarnished
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth23.50 mm
-
Built-in depth flush-mounted boxes13 mm
Connectivity
-
Mounting typeScrew mounting
Equipment
-
ShieldedYes
-
With dust coverNo
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK02
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

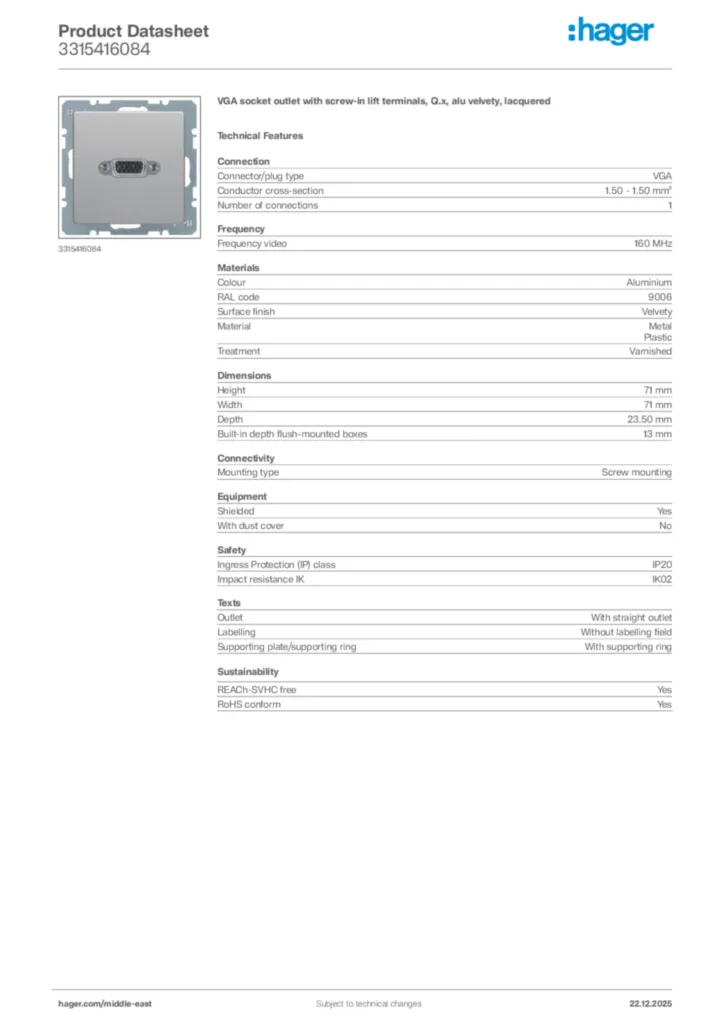

Hager Product data sheet 3315416084
VGA socket outlet with screw-in lift terminals, Q.x, alu velvety, lacquered
PDF -
Installation manual
Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2020-12)
Installation manual en-GB, de-DE 2023-01-06
PDF3,31 MB
Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2023-03)
Installation manual en-GB, de-DE 2023-04-13
PDF3,31 MB
More documentation
