EAN-Nr.

4011334390206

Packaging

1 piece

Illuminated change-over switch insert rocker urf.-/flushmtd,lens,W.1,p.wh. 30863522

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Must-have accessories

See all (7)

Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey

Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey

Surface-mtd housing 2gang hor., frame surface-mtd, W.1 ECO, grey/light grey matt

W.1 ECO 1G box empty grey

Surface-mtd housing 2gang vert., frame surface-mtd, W.1 ECO, grey matt

Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt

Hood/lens for circuit control device 3 products available
Illumination insert for domestic switching devices 1 products available

Technical characteristics

Switching current

10 A
Rated current

10 A

Mounting on

Flush mounting, Surface mounting

Rated voltage

250 V

Colour

Polar white
RAL code

9010
Surface finish

Matt
Material

Thermoplastic
Treatment

Untreated

Assembly arrangement

Control element

Mounting type

Screw mounting

Number of buttons

1

Built-in depth

12 mm
Built-in depth flush-mounted boxes

0

Ingress Protection (IP) class

IP55

Installation mode

For screw fastening
Type of connection

With N-terminal, With plug-in terminals
Lighting

With blue 230 V LED unit, For illumination
Switch mode

Change-over

Downloads

Product Image 30863522

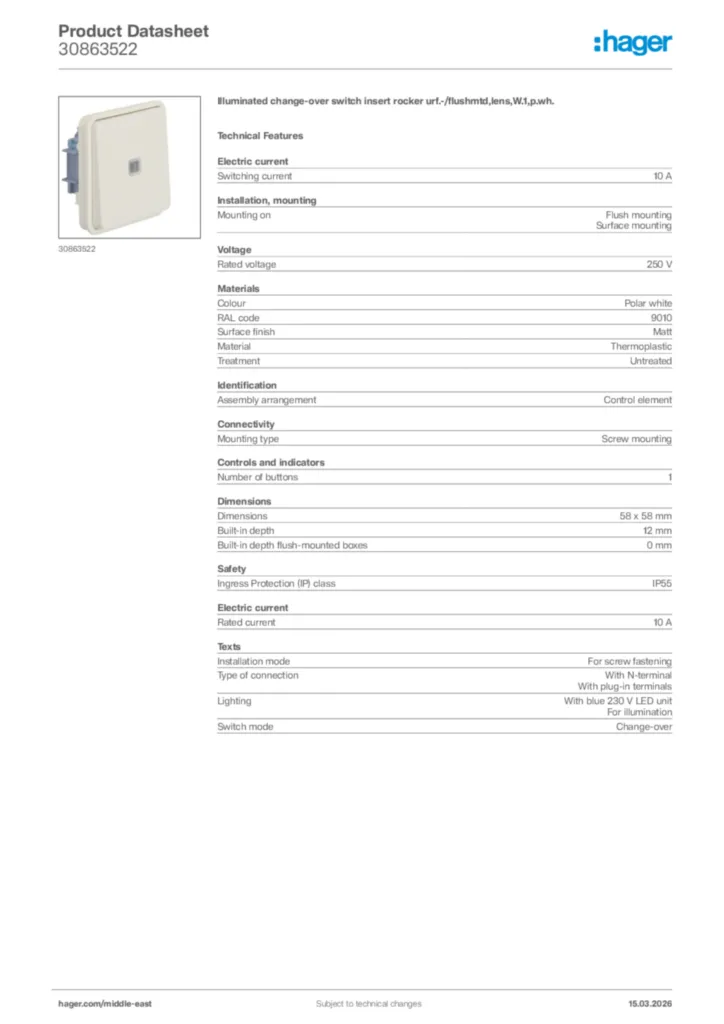

Product datasheet
