Switch insert rocker 2gang surf.-/flush-mtd, comm. input term., W.1, grey matt 30553515
EAN-Nr.
4011334390213
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (7)
Mandatory accessories
-
13303505Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
13293515Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
6719323505Surface-mtd housing 2gang hor., frame surface-mtd, W.1 ECO, grey/light grey matt
-
6118913505W.1 ECO 1G box empty grey
-
6719333505Surface-mtd housing 2gang vert., frame surface-mtd, W.1 ECO, grey matt
-
13293505Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
13283505Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
Technical characteristics
Electric current
-
Switching current10 A
-
Rated current10 A
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Voltage
-
Rated voltage250 V
Materials
-
ColourGrey
-
RAL code7011, 7038
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Identification
-
Assembly arrangementControl element
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons2
Dimensions
-
Built-in depth12 mm
-
Built-in depth flush-mounted boxes0
Safety
-
Ingress Protection (IP) classIP55
Architecture
-
Control/operation elementDouble rocker
Texts
-
Installation modeFor screw fastening
-
Type of connectionWith plug-in terminals
-
Switch modeSeries
Downloads
-

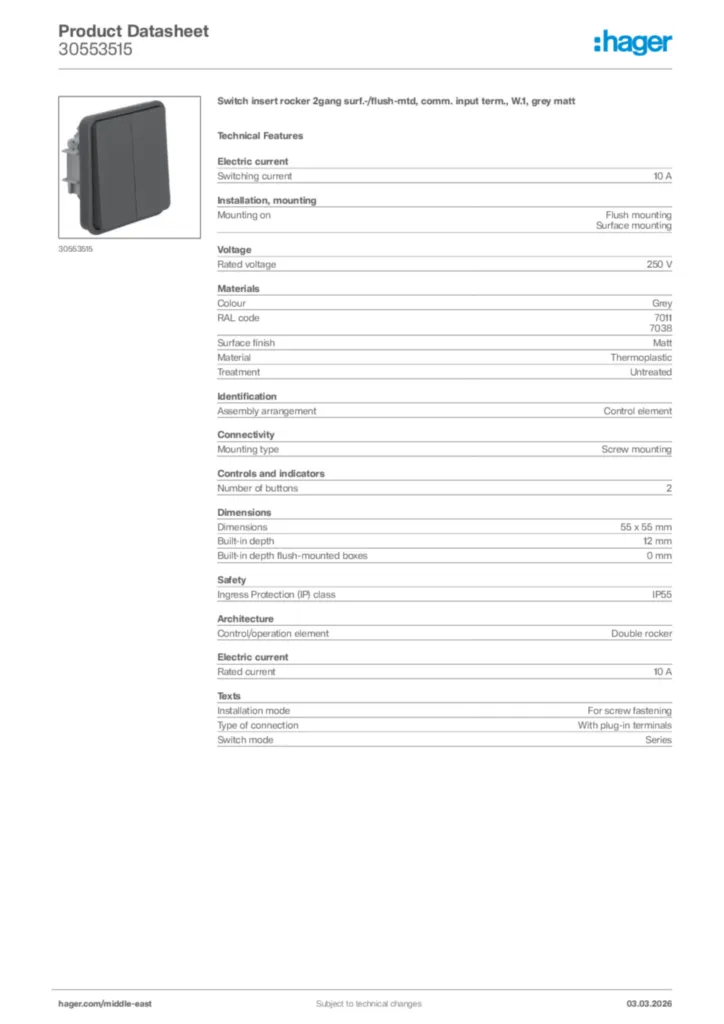

Product datasheet
