On/off switch insert 2p rocker+imprint "0" und "1" surf.-/flush-mtd, W.1,grey m. 30423515

EAN-Nr.

4011334390251

Packaging

10 Pieces

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Must-have accessories

See all (7)

Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey

Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey

Surface-mtd housing 2gang hor., frame surface-mtd, W.1 ECO, grey/light grey matt

W.1 ECO 1G box empty grey

Surface-mtd housing 2gang vert., frame surface-mtd, W.1 ECO, grey matt

Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt

Technical characteristics

Switching current

10 A
Rated current

10 A

Mounting on

Flush mounting, Surface mounting

Rated voltage

250 V

Colour

Grey
RAL code

7011
Surface finish

Matt
Material

Thermoplastic
Treatment

Untreated

Assembly arrangement

Control element

Mounting type

Screw mounting

Number of buttons

1

Built-in depth

12 mm
Built-in depth flush-mounted boxes

0

Ingress Protection (IP) class

IP55

Control/operation element

Single rocker

Installation mode

For screw fastening
Type of connection

With N-terminal, With plug-in terminals
Switch mode

Change-over contact/Change-over switch

Downloads

Product Image 30423515
Product datasheet

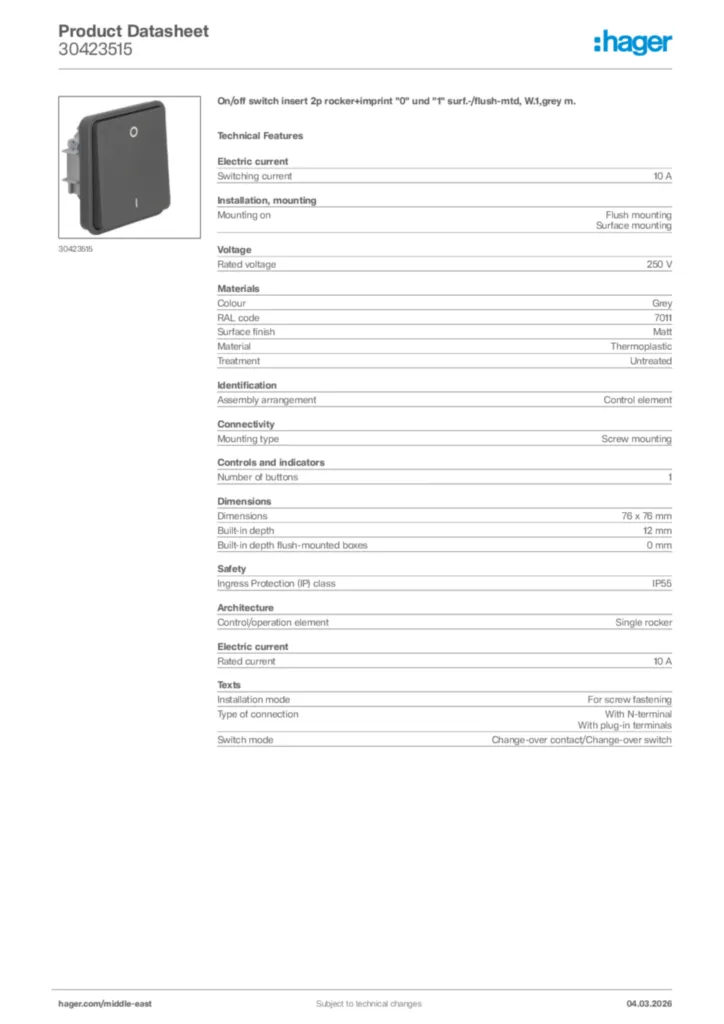

Hager Product data sheet 30423515

On/off switch insert 2p rocker+imprint "0" und "1" surf.-/flush-mtd, W.1,grey m.

PDF
Technical appendix (single product)

Splash-protected range W.1 - Chemical resistance (EN, 07-2021)

Technical appendix (single product) en-GB 2015-07-13

PDF

518,42 kB
Declaration of conformity

Declaration of conformity International 2021-11-03

PDF

82,41 kB

Declaration of conformity International 2022-04-26

PDF

164,12 kB

More documentation
