Rocker switch off, Module inserts 3031
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (102)
Optional accessories
-
Illumination insert for domestic switching devices 9 products available -
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 599 products available
Mandatory accessories
-
16286079Rocker imprinted symbol for bell, lab. field, lens, Q.x, p. white velvety
-
16206066Rocker imprinted symbol for door opener, Q.x, ant. velvety, lacq.
-
16206056Rocker imprinted symbol for bell, Q.x, ant. velvety, lacq.
-
16206046Rocker imprinted symbol for light, Q.x, ant. velvety, lacq.
-
16206069Rocker imprinted symbol for door opener, Q.x, p. white velvety
-
16206059Rocker imprinted symbol for bell, Q.x, p. white velvety
-
16206049Rocker imprinted symbol for light, Q.x, p. white velvety
-
16211404Rocker, lens, B.7, al., matt, lacq.
-
16211606Rocker, lens, B.3/B.7, ant., matt
-
16211909Rocker, lens, S.1/B.3/B.7, p. white, matt, plastic
-
16218982Rocker, lens, S.1, white glossy
-
16286074Rocker w. 2 lenses attached and labelling field, Q.x, alu velvety, lacquered
-
16286076Rocker imprinted symbol for bell, lab. field, lens, Q.x, ant. velvety, lacq.
-
16266089Rocker, lab. field, Q.x, p. white velvety
-
14267009Rocker, lab. field, K.1, p. white glossy
-
16266084Rocker with labelling field, Q.x, aluminium velvety, lacquered
-
16266086Rocker, lab. field, Q.x, ant. velvety, lacq.
-
14267006Rocker, lab. field, K.1, ant. matt, lacq.
-
16611949Rocker f.accessible const., guide f.mouth-held rod, lens, S.1/B.3/B.7, p.wh.m.plas.
-
16202025Rocker imprinted symbol for bell, R.1/R.3, black glossy
Complete your system
-
1675Neon lamp unit N terminal, light control, grey
-
167504Neon lamp unit N terminal, light control, orange
-
1686LED unit 230 V, for switches/push-buttons, light control, white
-
168601LED unit 230 V, for switches/push-buttons, light control, black
-
1687LED unit for switches/push-buttons, light control, blue
-
1676Glow lamp unit N-terminal, light control, brown
-
167602Glow lamp unit N-terminal, light control, yellow
-
167601
Glow lamp unit N-terminal, light control, green
-
167603Glow lamp unit N-terminal, light control, red
Referenced by
-
10239959Frame 3gang hor., lab. field, S.1, al. matt
-
10119959Frame 1gang, lab. field, S.1, al. matt
-
10119969Frame 1gang, lab. field, S.1, ant., matt
-
10128912Frame 2gang vert., lab. field, S.1, white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10129919Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
-
10129959Frame 2gang vert., lab. field, S.1, al. matt
-
10129969Frame 2gang vert., lab. field, S.1, ant., matt
-
10138912Frame 3gang vert., lab. field, S.1, white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10139919Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
-
10228912Frame 2gang hor., lab. field, S.1, white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10229919Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
-
10229959Frame 2gang hor., lab. field, S.1, al. matt
-
10229969Frame 2gang hor., lab. field, S.1, ant., matt
-
10238912Frame 3gang hor., lab. field, S.1, white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10239919Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
-
10239969Frame 3gang hor., lab. field, S.1, ant., matt
Technical characteristics
Electric current
-
Switching current10 AX (100W LED (SBL))
-
Rated current10 A
Installation, mounting
-
Mounting onFlush mounting
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
MaterialMetal, Plastic
Identification
-
Assembly arrangementBasic element
Connectivity
-
Mounting typeClaw mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth31 mm
-
Built-in depth flush-mounted boxes35 mm
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Architecture
-
Control/operation elementSingle rocker
Connection
-
Connector/plug typePlug-in terminal
Texts
-
Installation modeWith spreader claws, For screw fastening
-
Type of connectionWith plug-in terminals
-
LightingFor lighting and monitoring circuit
-
Switch modeOff
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

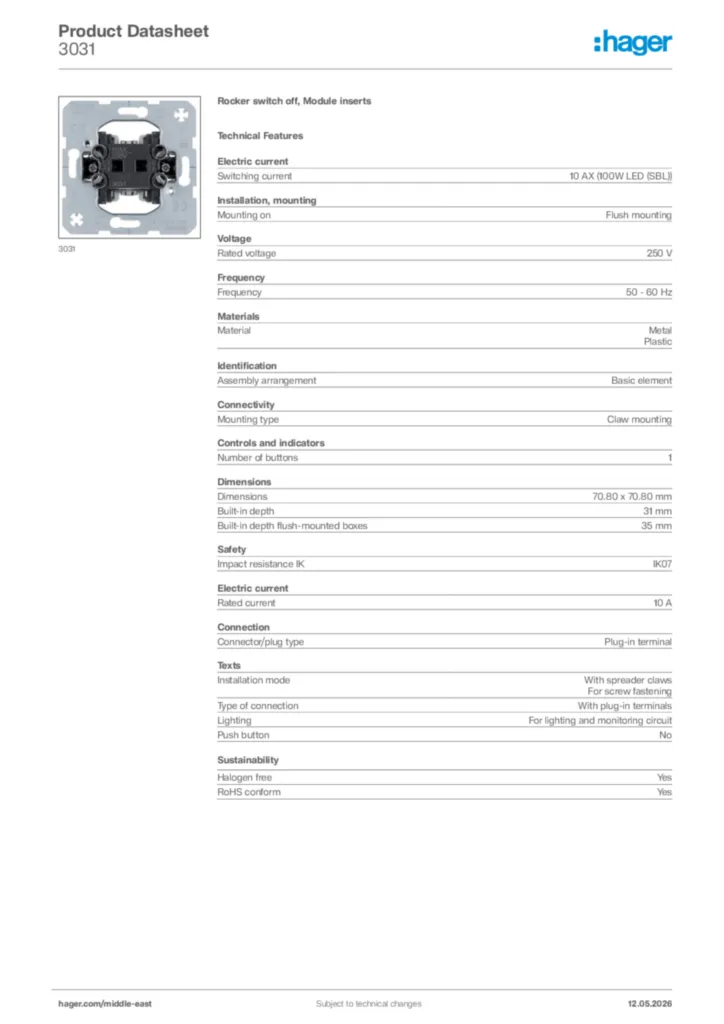

Hager Product data sheet 3031
Rocker switch off, Module inserts
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
