Univ. rot. dim. w. centre pl. (R, L, C, LED), soft-l., Serie 1930/Glass, pw gl. 294410
EAN-Nr.
4011334510109
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Electrical accessories/spare parts for luminaires 1 products available -
Dimmer 1 products available
Compatible products
-
Referenced by 23 products available
Referenced by
-
138109Frame 1gang, 1930, p. white glossy
-
138131Frame 3gang, 1930, black glossy
-
138139Frame 3gang, 1930, p. white glossy
-
138121Frame 2gang, 1930, black glossy
-
138129Frame 2gang, 1930, p. white glossy
-
294510
Extension unit insert f. uni rot. dim. comf., soft-l., 1930/Glass/R.cl., pw gl.
-
1094Glass cover end plate f. rot. switch/spring-return push-button, clear gl.
-
1095Glass cover centre plate f. rot. switch/spring-return push-button, clear gl.
-
1090Glass cover plate for rot. switch/spring-return push-button, clear glossy
-
138201Frame, 1gang for centre plate Ø 58 mm, 1930, black glossy
-
138209Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
-
138101Frame 1gang, 1930, black glossy
-
138169Frame 1gang, 1930 Porzellan, porcelain, p. white glossy
-
138141End frame, 1930, black glossy
-
138149Eend frame, 1930, p. white glossy
-
138151Centre frame, 1930, black glossy
-
138159Centre frame, 1930, p. white glossy
-
109200Glass end frame, clear glossy
-
109300Glass centre frame, clear glossy
-
1102Glass frame 2gang, clear glossy
Technical characteristics
Voltage
-
Operating voltage230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialMetal, Plastic
Dimensions
-
Diameter axis4 mm
-
Built-in depth24 mm
-
Height71 mm
-
Width71 mm
-
Depth45 mm
Architecture
-
Control/operation elementPush & rotative switch
Lighting
-
Dimmable 230 V LED lamp3 - 100 W
Texts
-
Dimming principlePhase cut-on, cut-off or LED phase cut-on according to load type, self-learning
-
FuseShort-circuit and overload-proof (electronic fuse)
-
VoltageVoltage test possible without dismantling
-
Installation modeWith spreader claws
-
Type of connectionWith screw terminals
-
Extension unit inputWith extension unit input for push-button (NO contact) With single-surface operation, With input for extension units insert for universal rotary dimmer
-
Operation and controlNo Bluetooth interface
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

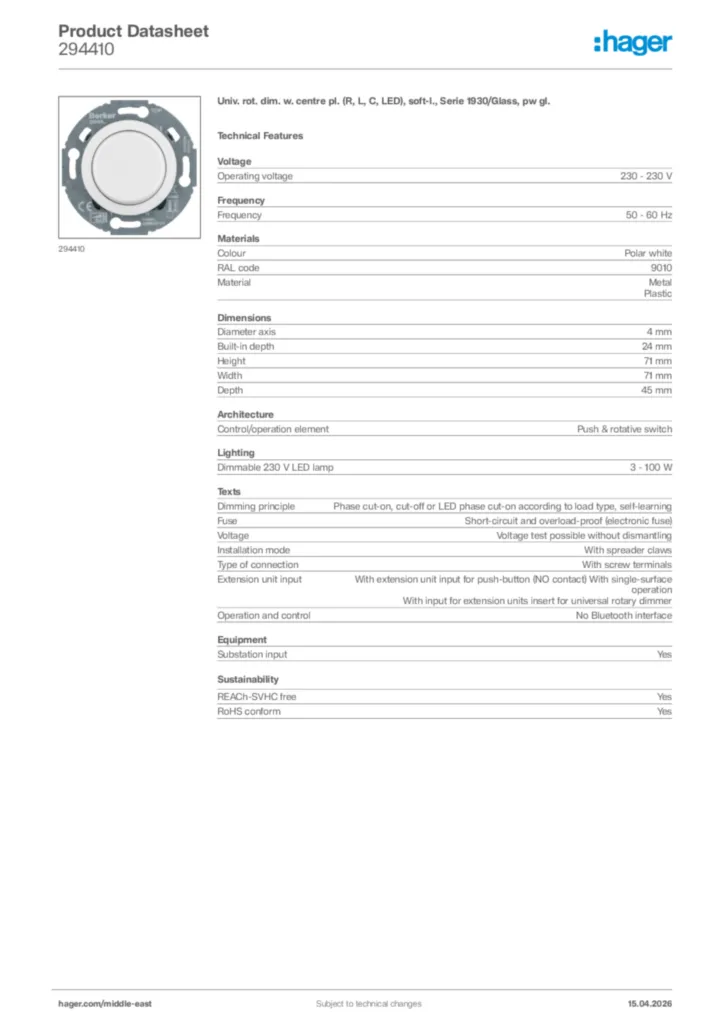

Hager Product data sheet 294410
Univ. rot. dim. w. centre pl. (R, L, C, LED), soft-l., Serie 1930/Glass, pw gl.
PDF -
Installation manual
Manual for 2944xx-296110 - Universal rotary dimmer comfort (EN, 2019-04)
Installation manual en-GB 2020-01-01
PDF544,40 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,00 MB
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,00 MB
