FI-SZ-SCH UP 2844
EAN-Nr.
4011334288831
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Architecture
-
Number of poles2
Voltage
-
Rated voltage230 V
-
Type voltage supplyAC
Frequency
-
Frequency50 - 60 Hz
Electric current
-
Rated current16 A
-
Breaking and opening capacity Idm3 kA
-
Rated residual operating current Idn30 mA
-
Withstand not tripping on 8 - 20 μs wave0.25 kA
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 40 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
Capacity
-
Number of modules0
Dimensions
-
Depth45 mm
-
Built-in depth32 mm
Connection
-
Cross-section of input and output with screws, for massive conductors1.5 - 2.5 mm²
Texts
-
Installation modeFor flush-mounted and hollow wall mounting, Without spreader claws
-
ProtectionTo protect downstream loads
-
TypeType A for alternating currents and pulsating direct currents
-
Type of connectionWith plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

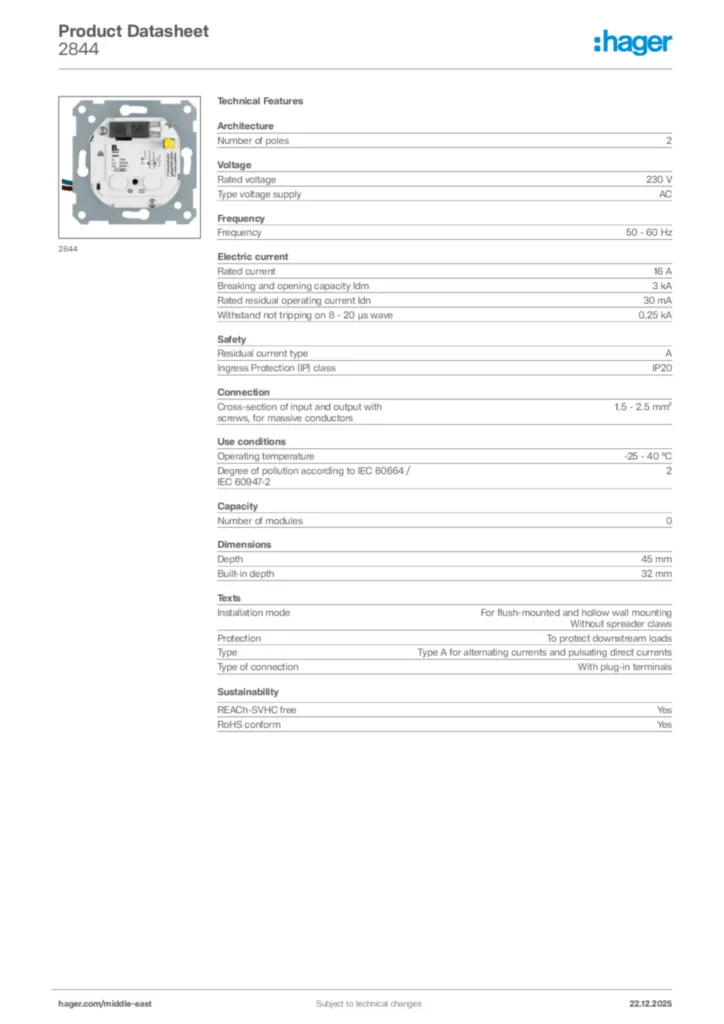

Hager Product data sheet 2844
