230 V USB charging socket outlet, 2gang, 3.0A, angular supporting ring, pw. 260209
EAN-Nr.
4011334467830
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (16)
Compatible products
-
Referenced by 498 products available
Mandatory accessories
-
10331909Centre plate TAE cut-out, push-out, S.1/B.3/B.7, p. white, matt, plastic
-
10331606Centre plate TAE cut-out, push-out, B.3/B.7, ant., matt
-
10331404Centre plate TAE cut-out, push-out, B.7, al., matt, lacq.
-
10338919Centre plate TAE cut-out, S.1/B.3/B.7, p. white glossy
-
10338912Centre plate TAE cut-out, S.1, white glossy
-
10382089Centre plate TAE cut-out, R.1/R.3/R.classic, p. white glossy
-
10382045Centre plate TAE cut-out, R.1/R.3/R.classic, black glossy
-
1040Centre plate TAE cut-out, push-out, 1930/glass, p. white glossy
-
104001Centre plate TAE cut-out, push-out, 1930/glass/R.classic, black glossy
-
10336089Centre plate TAE cut-out, Q.x, p. white velvety
-
10336086Centre plate TAE cut-out, Q.x, ant. velvety, lacq.
-
10336084 -
10357009Centre plate TAE cut-out, K.1, p. white glossy
-
10357006Centre plate TAE cut-out, K.1, ant. matt, lacq.
-
10357003Centre plate TAE cut-out, K.5, al., al. anodised
-
10357004Centre plate TAE cut-out, K.5, stainless steel, metal matt finish
Referenced by
-
10239959Frame 3gang hor., lab. field, S.1, al. matt
-
10119959Frame 1gang, lab. field, S.1, al. matt
-
10119969Frame 1gang, lab. field, S.1, ant., matt
-
10128912Frame 2gang vert., lab. field, S.1, white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10129919Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
-
10129959Frame 2gang vert., lab. field, S.1, al. matt
-
10129969Frame 2gang vert., lab. field, S.1, ant., matt
-
10138912Frame 3gang vert., lab. field, S.1, white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10139919Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
-
10228912Frame 2gang hor., lab. field, S.1, white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10229919Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
-
10229959Frame 2gang hor., lab. field, S.1, al. matt
-
10229969Frame 2gang hor., lab. field, S.1, ant., matt
-
10238912Frame 3gang hor., lab. field, S.1, white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10239919Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
-
10239969Frame 3gang hor., lab. field, S.1, ant., matt
Technical characteristics
Connectivity
-
Type of connectionScrew terminal
-
Connector/plug type USBA
Voltage
-
Input voltage230 - 230 V
-
Output voltage5 - 5 V
Dimensions
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes34 mm
Equipment
-
Number of outputs2
Accessories
-
Has labelling fieldNo
-
With miniature fuseNo
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
Power
-
Output power15 W
-
Power consumption standby0.15 W
Electric current
-
Rated current0.20 A
-
Output current3,000 mA
Texts
-
Connectors jacksWith 2 USB sockets type A
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Type of connectionWith screw terminals
-
ProtectionWithout enhanced contact protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

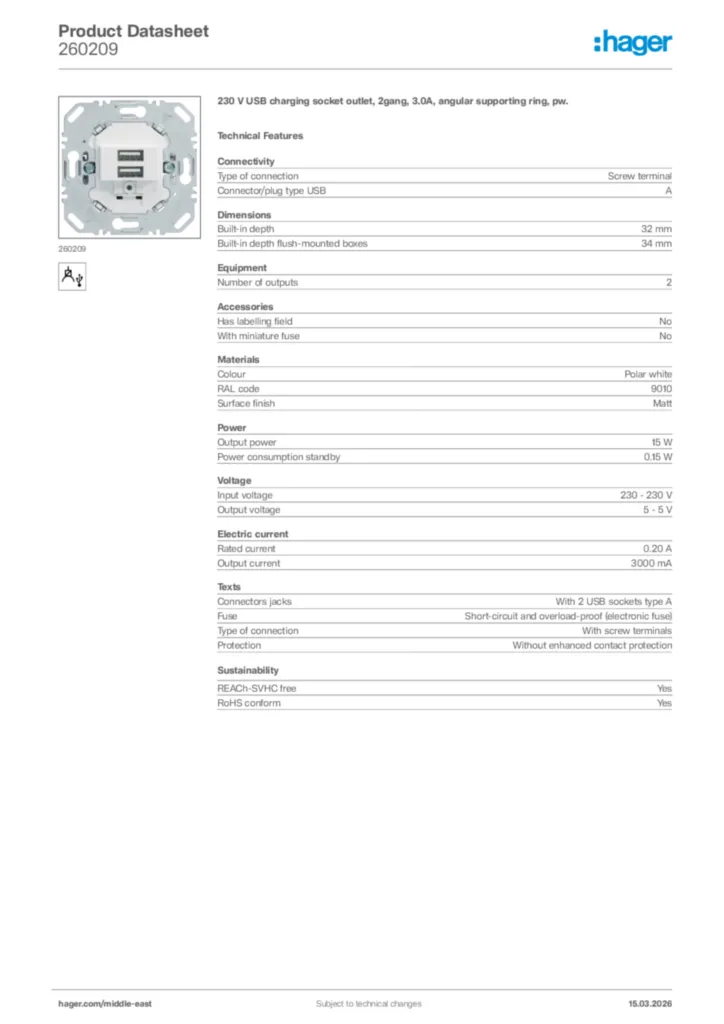

Hager Product data sheet 260209
230 V USB charging socket outlet, 2gang, 3.0A, angular supporting ring, pw.
PDF -
Installation manual
Manual for 2602xx-92610xx-92620xx - 230 V USB charging socket (DE-EN-NL, 2020-09)
Installation manual en-GB, de-DE, nl-NL 2015-02-02
PDF2,67 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-29
PDF178,20 kB
Declaration of conformity
Declaration of conformity International 2022-12-16
PDF182,67 kB
Declaration of conformity International 2021-06-16
PDF112,25 kB
