Thermostat, NO contact,Cen. plate,f. heat.,rocker switch,ext.temp.sen.,K5,al. 20347103
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 16 products available
Referenced by
-
13097003Frame l. cut-out, K.5, al., al. anodised
-
13097004Frame l. cut-out, K.5, stainless steel, metal matt finish
-
13137003Frame 1gang, K.5, al., al. anodised
-
13137004Frame 1gang, K.5, stainless steel, metal matt finish
-
13237003Frame 2gang vert., K.5, al., al. anodised
-
13237004Frame 2gang vert., K.5, stainless steel, metal matt finish
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
Technical characteristics
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current10 A
-
Max. switching current10 A
Voltage
-
Nominal voltage230 - 230 V
Power supply
-
Supply voltage230 V AC
Frequency
-
Frequency50 - 60 Hz
Settings
-
Comfort temperature setpoint10 - 50 °C
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishMatt
-
MaterialMetal, Plastic
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth54.5 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference1 K
-
Type of thermostatRegulator of heating floor
-
Type of probeFloor heating probe
Connection
-
Type of contacts1NO
Safety
-
Ingress Protection (IP) classIP20
Compatibility
-
Type of HVAC controlHeating
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

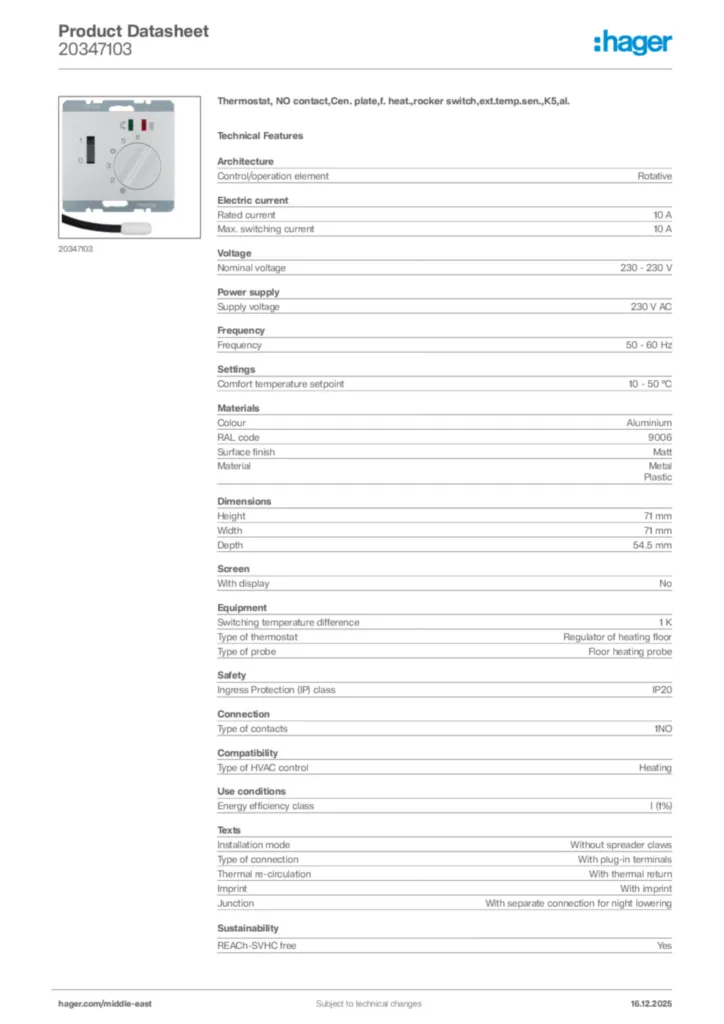

Hager Product data sheet 20347103
Thermostat, NO contact,Cen. plate,f. heat.,rocker switch,ext.temp.sen.,K5,al.
PDF -
Installation manual
Manual for 2034xx - Thermostat, NO contact, with centre plate, for underfloor heating (EN, 2014-08)
Installation manual en-GB 2015-08-27
PDF472,14 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-06-11
PDF276,87 kB
Declaration of Conformity
Declaration of conformity International 2021-06-11
PDF272,42 kB
