Floor thermostat w. NO cont., Centre pl., rocker switch, Q.x alu velvety, lacq. 20346084
EAN-Nr.
4011334446873
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 143 products available
Referenced by
-
10136016Frame 3gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10226014Frame 2gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10156014Frame 5gang with labelling field vertical Q.1 alu velvety, lacquered
-
10146014Frame 4gang with labelling field vertical Q.1 alu velvety, lacquered
-
10136014Frame 3gang with labelling field vertical Q.1 alu velvety, lacquered
-
10126014Frame 2gang with labelling field vertical Q.1 alu velvety, lacquered
-
10116014Frame 1gang with labelling field Q.1 alu velvety, lacquered
-
10156016Frame 5gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10146016Frame 4gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10126019Frame 2gang vert., lab. field, Q.1, p. white velvety
-
10246019Frame 4gang hor., lab. field, Q.1, p. white velvety
Technical characteristics
Electric current
-
Rated current10 A
-
Switching current10 A
Voltage
-
Nominal voltage230 - 230 V
-
Rated voltage230 V
Frequency
-
Frequency50 - 60 Hz
Settings
-
Comfort temperature setpoint10 - 50 °C
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishVelvety
-
MaterialMetal, Plastic
-
TreatmentVarnished
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth60 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference1 K
-
Type of thermostatRegulator of heating floor
-
Type of probeBimetal
Connection
-
Type of contacts1NO
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

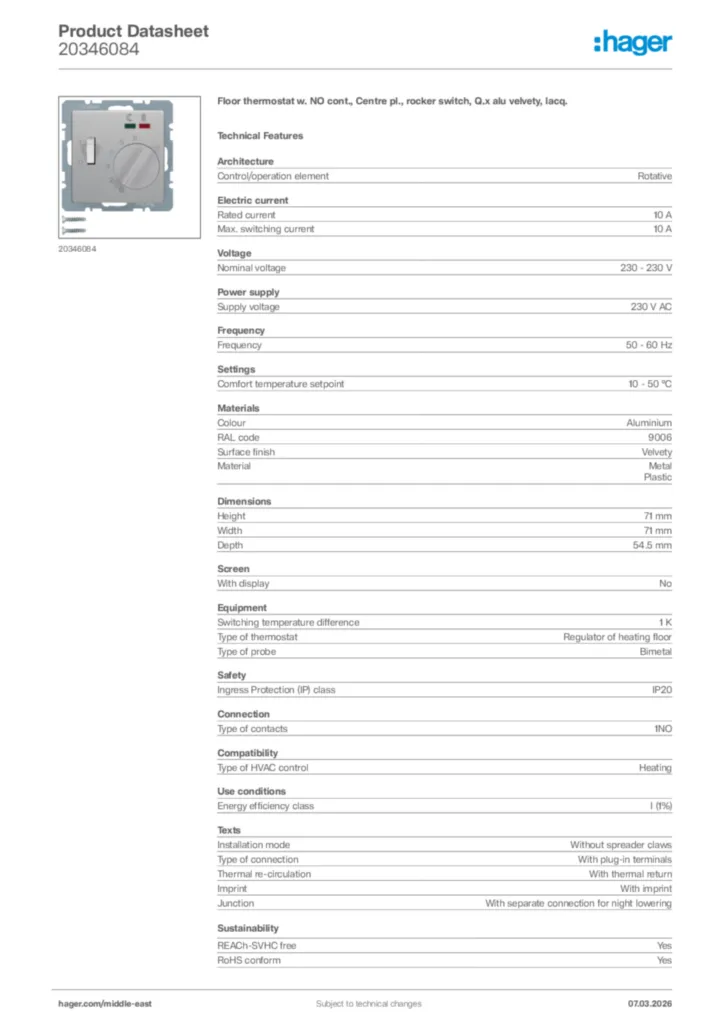

Product datasheet
Hager Product data sheet 20346084
Floor thermostat w. NO cont., Centre pl., rocker switch, Q.x alu velvety, lacq.
PDF -
Installation manual
Manual for 2034xx - Thermostat, NO contact, with centre plate, for underfloor heating (EN, 2014-08)
Installation manual en-GB 2015-08-27
PDF472,14 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-06-11
PDF276,87 kB
Declaration of Conformity
Declaration of conformity International 2021-06-11
PDF272,42 kB
