Thermostat, NC contact, centre plate, rocker switch, B.3/B.7, ant., matt 20301606
EAN-Nr.
4011334309451
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 174 products available
Referenced by
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10143001Frame 4gang, B.3, al. brown/ant. matt, al. anodised
-
10133904Frame 3gang, B.3, al./p. white matt, al. anodised
-
10133046Frame 3gang, B.3, al. gold/p. white matt, al. anodised
-
10133025Frame 3gang, B.3, al. black/p. white matt, al. anodised
-
10133016Frame 3gang, B.3, al. gold/ant. matt, al. anodised
-
10133005Frame 3gang, B.3, al. black/ant. matt, al. anodised
-
10133004Frame 3gang, B.3, al./ant. matt, al. anodised
-
10133001Frame 3gang, B.3, al. brown/ant. matt, al. anodised
-
10123904Frame 2gang, B.3, al./p. white matt, al. anodised
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10123001Frame 2gang, B.3, al. brown/ant. matt, al. anodised
-
10113005Frame 1gang, B.3, al. black/ant. matt, al. anodised
-
10113016Frame 1gang, B.3, al. gold/ant. matt, al. anodised
-
10113025Frame 1gang, B.3, al. black/p. white matt, al. anodised
-
10113046Frame 1gang, B.3, al. gold/p. white matt, al. anodised
-
10113904Frame 1gang, B.3, al./p. white matt, al. anodised
-
10123005Frame 2gang, B.3, al. black/ant. matt, al. anodised
-
10123021Frame 2gang, B.3, al. brown/p. white matt, al. anodised
-
10123016Frame 2gang, B.3, al. gold/ant. matt, al. anodised
Technical characteristics
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current10 A
-
Switching current10 A
-
Max. switching current10 A
Voltage
-
Nominal voltage250 - 250 V
-
Rated voltage250 V
Power supply
-
Supply voltage230 V AC
Frequency
-
Frequency50 - 60 Hz
Settings
-
Comfort temperature setpoint5 - 30 °C
Materials
-
ColourAnthracite
-
RAL code7016
-
Surface finishMatt
-
MaterialMetal, Plastic
-
TreatmentVarnished
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth50.90 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference0.50 K
-
Type of thermostatRoom thermostat
-
Type of probeBimetal
-
With heaterYes
Connection
-
Type of contacts1NC
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

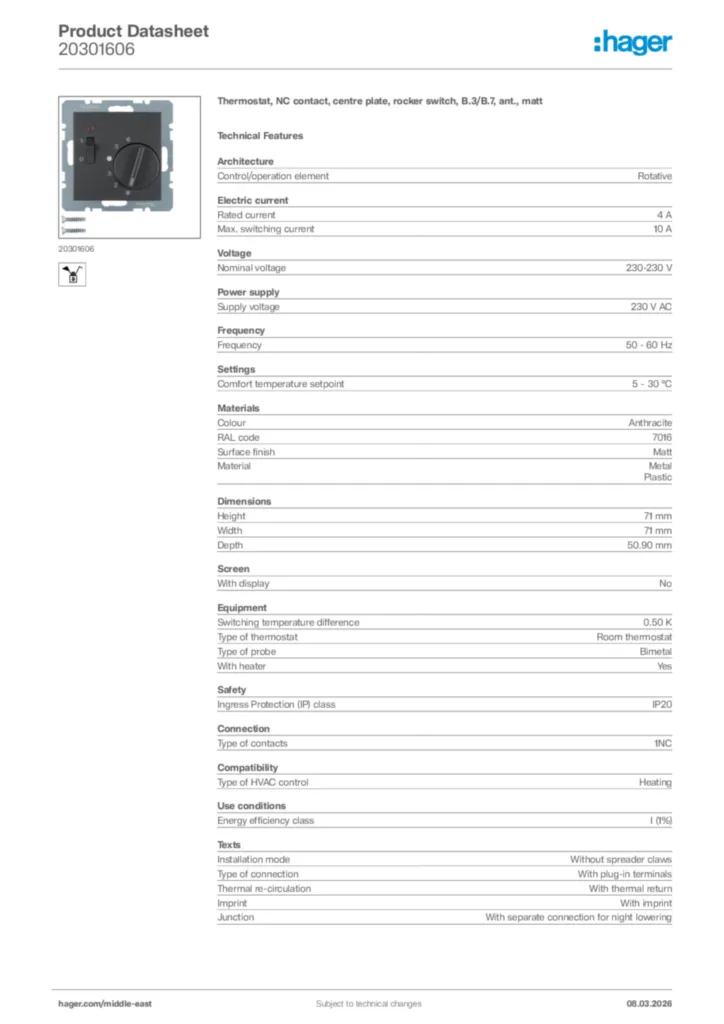

Product datasheet
