Relay switch centre plate for hotel card, S.1, al., matt, lacq. 16408984
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage230 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementHotel card
-
Number of poles1
Power
-
230 V incandescent and halogen lamp1,500 W
-
Fluorescent lamps in duo circuit1,500 W
Materials
-
ColourAluminium
-
Surface finishMatt
-
MaterialMetal, Plastic
-
TreatmentVarnished
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth57.30 mm
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons0
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP20
Accessories
-
Has labelling fieldNo
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

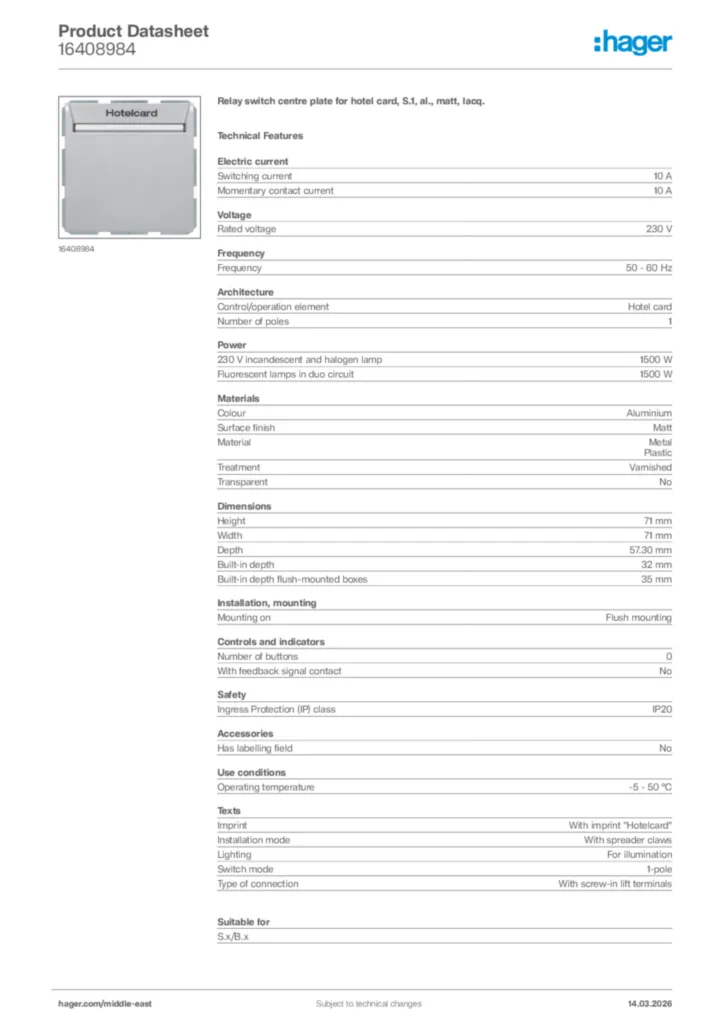

Product datasheet
Hager Product data sheet 16408984
Relay switch centre plate for hotel card, S.1, al., matt, lacq.
PDF -
Installation manual
Manual for 1640xx-1641xx - Relay switch for hotel card (DE-EN-NL, 2014-05)
Installation manual en-GB, de-DE, nl-NL 2014-05-28
PDF785,61 kB
Manual for 1640xx-1641xx - Relay switch for hotel card (DE-EN-NL, 2020-11)
Installation manual en-GB, de-DE, nl-NL 2020-11-13
PDF905,09 kB
Manual for 1640xx-1641xx - Relay switch for hotel card (EN 2014-05)
Installation manual en-GB 2017-09-08
PDF730,88 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-09-23
PDF307,54 kB
Declaration of Conformity
Declaration of conformity International 2021-09-23
PDF335,19 kB
More documentation
