    • catalog.pagelevel.title_breadcrumb.home
    • Catalog
    • Wiring accessories
    • Berker Q.1
    • Frames and surface-mounted housings - Berker Q.1
    • 10316086
    EAN
    4011334386148
    Packaging
    5
    • Frames and surface-mounted housings - Berker Q.1

    Frame 3gang surface-mtd, surface-mtd, ant. velvety, lacq. 10316086

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Frame 3gang surface-mtd, surface-mtd, ant. velvety, lacq.

    10316086

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Capacity
    • Number of modules
      3
    Materials
    • Colour
      Anthracite
    • RAL code
      7021
    • Surface finish
      Velvety
    • Material
      Duroplastic
    • Treatment
      Untreated, Varnished
    Dimensions
    • Height
      85 mm
    • Width
      225 mm
    • Depth
      35 mm
    • Built-in depth
      33.50 mm
    Equipment
    • With cable entry
      Yes
    Installation, mounting
    • Mounting-/Connection Position
      Horizontal, Vertical
    • Mounting on
      Surface mounting
    Accessories
    • With frame cover
      No
    Safety
    • Ingress Protection (IP) class
      IP20
    • Related Systems
      Q.x
    • Related Series
      Q.1

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Surface-mtd housing 3gang, S.1, p. white glossy (English)
    PDF
    8,97 MB
    REACH declaration 10316086
    PDF
    RoHS report 10316086
    PDF

    Downloads

    • Image 10316086  | Hager

      Product Image 10316086

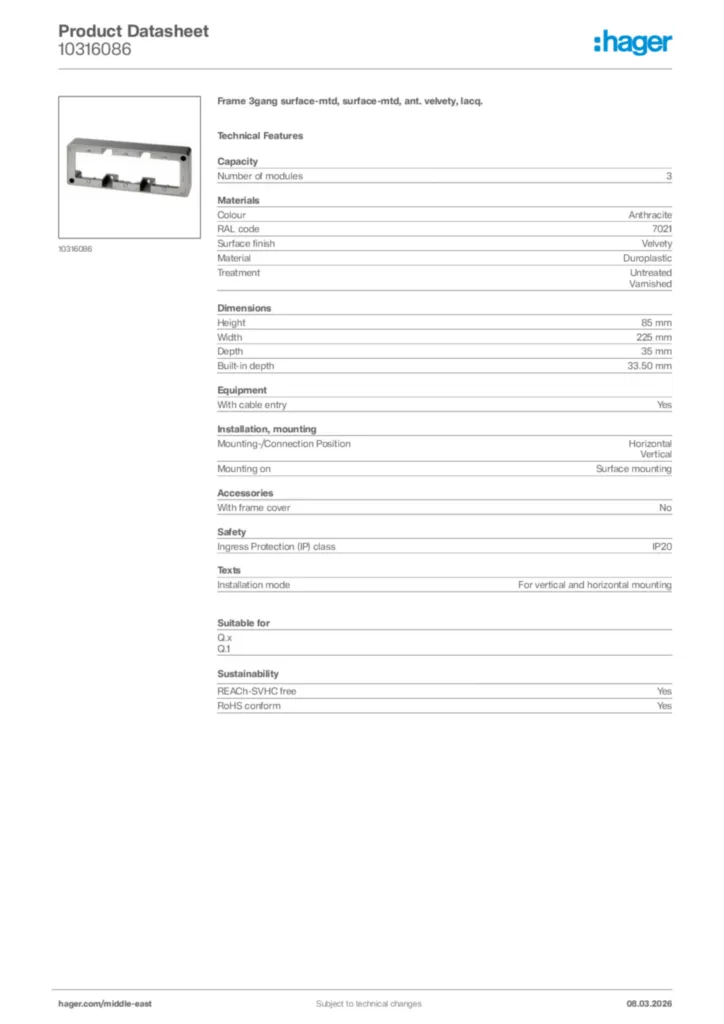

    • Product datasheet

      Image Hager Product data sheet 10316086  | Hager

      Hager Product data sheet 10316086

      Frame 3gang surface-mtd, surface-mtd, ant. velvety, lacq.

      PDF
    • Declaration of conformity

      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      dc26-1234

      PDF
      372,46 kB
