The Hager Emergency switch, 1/4‑turn, 2‑module, provides rapid power cut-off for circuits up to 10 A at 50-60 Hz. The quarter‑turn action ensures fast, unmistakable operation in emergencies. Click mounting and 40 mm flush depth speed installation. Robust metal/plastic build (IK02) with matt RAL7011 finish suits modern panels. Non‑illuminated design for reliable shutdown in residential or light commercial areas.
EAN
3250617198707
VPE
1 piece
cubyko single push-button 10A 250V IP55 IK05 Grey flush/surface WXF611
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text

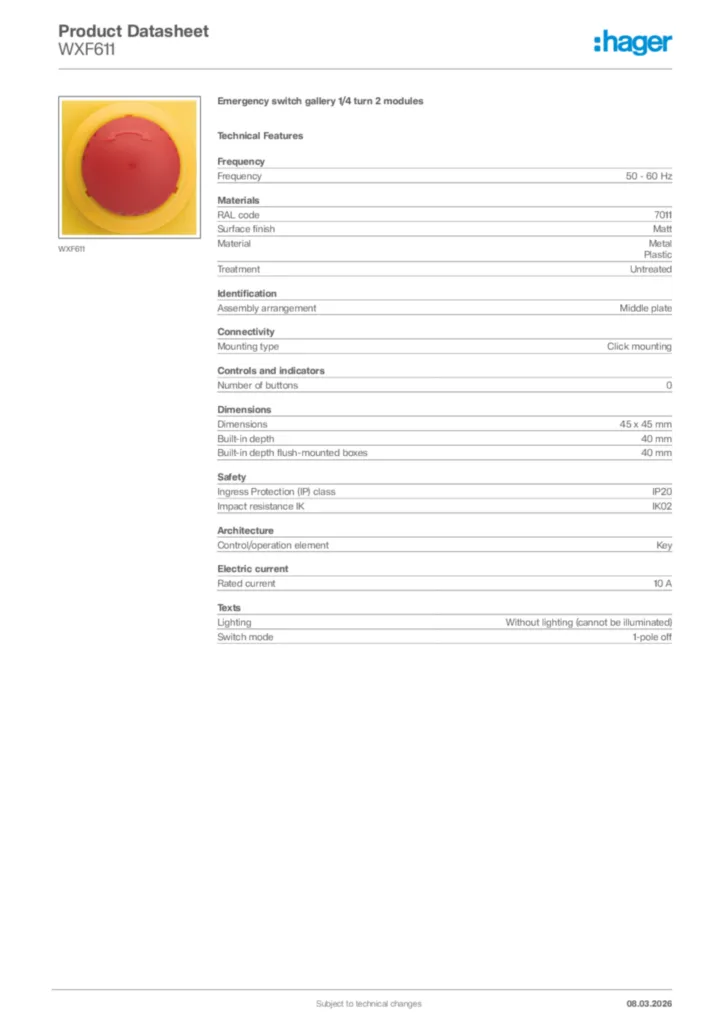

Technical characteristics
Electric current
-
Rated current IN10 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
RAL code7011
-
Surface finishMatt
-
MaterialMetal, Plastic
-
TreatmentUntreated
Identification
-
Assembly arrangementMiddle plate
Accessories
-
Has labelling fieldNo
Connectivity
-
Mounting typeClick mounting
Controls and indicators
-
Number of buttons0
Dimensions
-
Built-in depth40 mm
-
Built-in depth flush-mounted boxes40 mm
Safety
-
Impact resistance IKIK02
Texts
-
LightingWithout lighting (cannot be illuminated)
-
Push buttonNo
Architecture
-
Control/operation elementKey
