Enclosure,vector,IP5x VE412F

EAN
3250616457065
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure,vector,IP5x

VE412F

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Cover strip 2 products available
  • Accessor­ies/s­pare parts for terminals 2 products available
  • Cable entry sleeve 2 products available
  • Cable gland 1 products available
  • Cable gland shroud 1 products available
  • Cross-­con­nector for terminal block 1 products available

Complete your system

  • Cover strip
  • Accessor­ies/s­pare parts for terminals
  • Cable entry sleeve
  • Cable gland
  • Cable gland shroud
  • Cross-­con­nector for terminal block
  • VZ415

    Blanking strip, universal, 12M, RAL 7035
    0.00 €  / *
  • P012

    Cover strips, universal, for 12 module
    0.00 €  / *
  • VZ744

    Adapter, vector, for control terminal
    0.00 €  / *
  • VZ711

    Temrinal base, volta, for distributor size 12M, golf, vector, accessory
    0.00 €  / *
  • VZ758

    Bushing line, vector, IP54, metric
    0.00 €  / *
  • VZ754

    Coupling bushing, vector, PG21, RAL7035, Set: 10 pieces
    0.00 €  / *
  • VZ020M

    Cable gland, vector, IP65, M20, plastic
    0.00 €  / *
  • VZ021V

    Enclosure, vector, sealing plug, for pressure balance screw joint M2
    0.00 €  / *
  • VZ728

    Carrier, vector, with PE/N-terminal 1x25
    0.00 €  / *

Technical properties

Connec­tion
  • Number of conduit inlets
    12
Voltage
  • Nominal voltage
    400 - 400 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    63 A
Equip­ment
  • Number of rails
    4
  • Number of rows
    4
  • Number of section in width
    1
  • With lock
    No
  • Has mounting plate
    No
Capa­city
  • Number of modules
    48
Func­tions
  • With conduit inlets
    Yes
Dimen­sions
  • Height
    677 mm
  • Width
    310 mm
  • Depth
    151 mm
  • Number of width units
    48
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    0
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Poly­styrene (PS)
  • RAL code
    7035
  • Colour
    Light grey
  • Ultra­vi­olet-res­istant
    No
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK08
  • Ingress Protec­tion (IP) class
    IP65
  • Locking type
    Snap on lock, Without lock
  • Glow wire test
    750 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

Certifications and documents

PEP document en-GB 2022-09-20
PDF
343,24 kB

Downloads

  • Image VE412F | Hager Africa

    Product Image VE412F

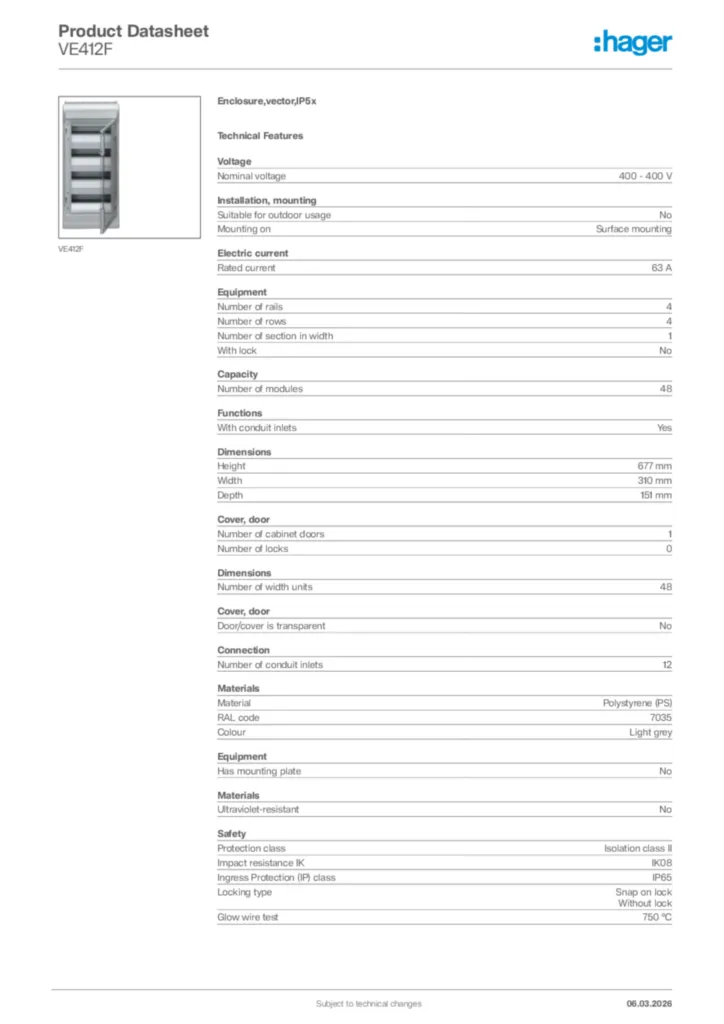

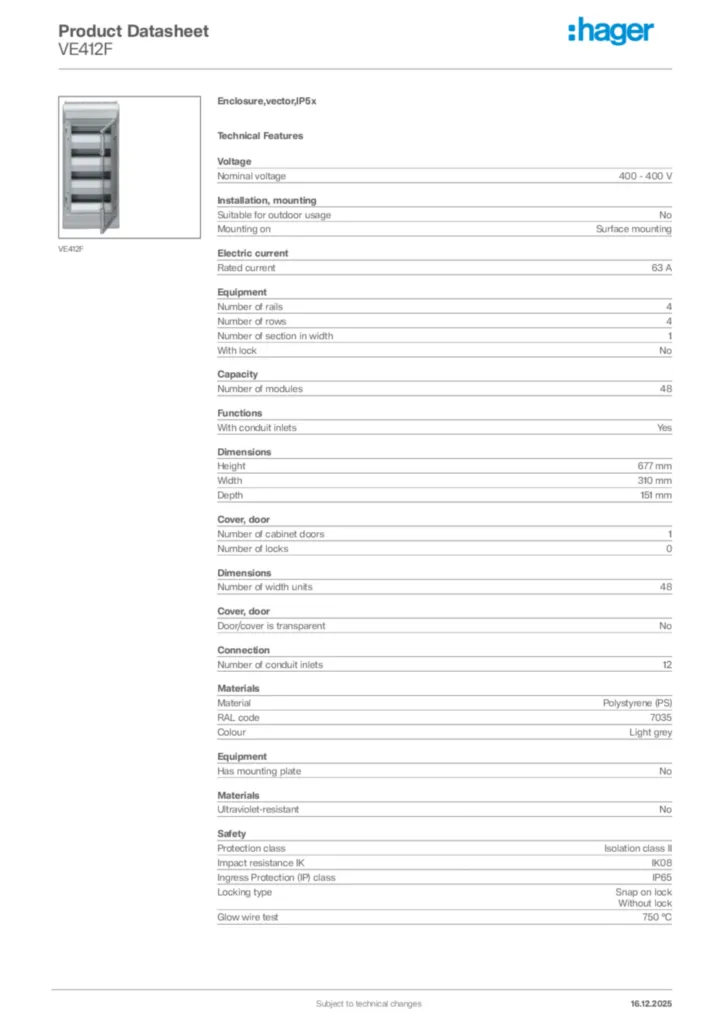

  • Product datasheet

    Image Hager Product data sheet VE412F | Hager Africa

    Hager Product data sheet VE412F

    Enclosure,vector,IP5x

    PDF

  • Installation manual

    Image Installation manual International 2020-01-01 | Hager Africa

    Installation manual International 2020-01-01

    PDF
    1,90 MB
    Image Installation manual International 2022-02-07 | Hager Africa

    Installation manual International 2022-02-07

    PDF
    4,24 MB

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2022-11-14

    PDF
    257,02 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2022-12-19

    PDF
    258,36 kB
