    EAN
    3250616453067
    Packaging
    1 Piece
    • vector enclos­ures

    Enclosure, vector, IP5x, 10M VE110F

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure, vector, IP5x, 10M

    VE110F

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (11)
    • Cover strip 3 products available
    • Single- and multi-­pole 1 products available
    • Accessor­ies/s­pare parts for terminals 2 products available
    • Cable entry sleeve 2 products available
    • Lock system 1 products available
    • Cable gland 1 products available

    Complete your system

    • Cover strip
    • Single- and multi-­pole
    • Accessor­ies/s­pare parts for terminals
    • Cable entry sleeve
    • Lock system
    • Cable gland
    • Cable gland shroud
    • VZ415

      Blanking strip, universal, 12M, RAL 7035
      0.00 €  / *
    • P012

      Cover strips, universal, for 12 module
      0.00 €  / *
    • VZ413

      Blanking strip, universal, 6M, RAL 7035
      0.00 €  / *
    • VZ428

      Terminal, Volta, additional terminal, 3Ph+N, 63A
      0.00 €  / *
    • VZ744

      Adapter, vector, for control terminal
      0.00 €  / *
    • VZ711

      Temrinal base, volta, for distributor size 12M, golf, vector, accessory
      0.00 €  / *
    • VZ758

      Bushing line, vector, IP54, metric
      0.00 €  / *
    • VZ754

      Coupling bushing, vector, PG21, RAL7035, Set: 10 pieces
      0.00 €  / *
    • VZ311

      Key lock, vector, with 2 keys
      0.00 €  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic
      0.00 €  / *
    • VZ021V

      Enclosure, vector, sealing plug, for pressure balance screw joint M2
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      6
    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      10
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      210 mm
    • Width
      237 mm
    • Depth
      114 mm
    • Number of width units
      10
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Poly­styrene (PS)
    • RAL code
      7035
    • Colour
      Light grey
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP65
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration VE110F
    PDF
    Hager RoHS report VE110F
    PDF

    Downloads

    • Image VE110F | Hager Africa

      Product Image VE110F

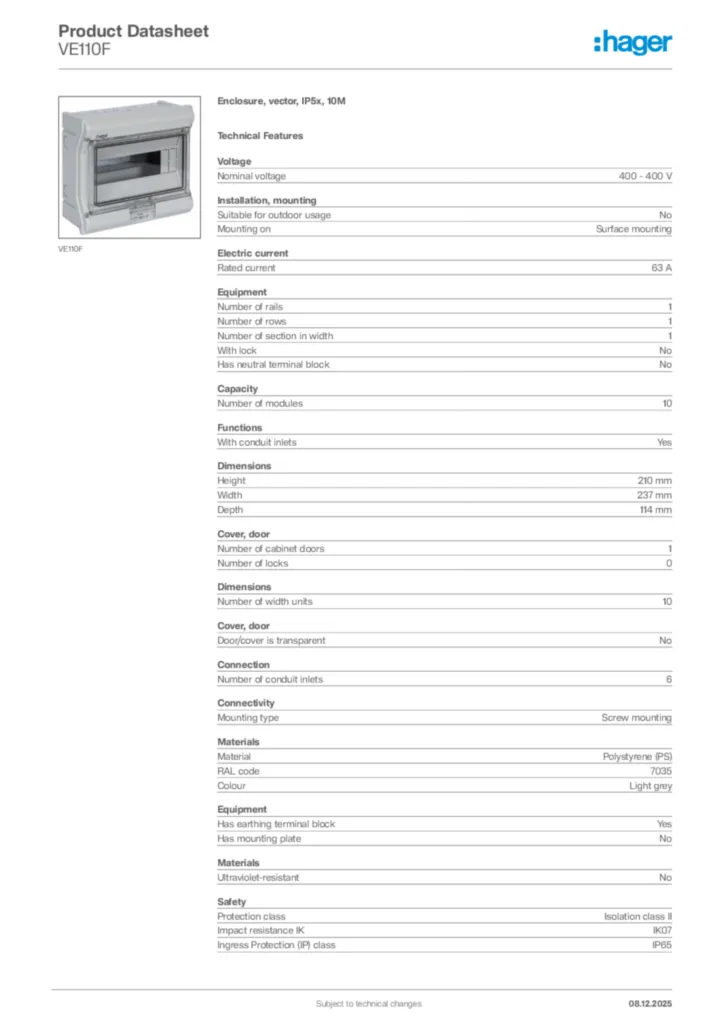

    • Product datasheet

      Image Hager Product data sheet VE110F | Hager Africa

      Hager Product data sheet VE110F

      Enclosure, vector, IP5x, 10M

      PDF

    • Installation manual

      Image Installation manual International 2022-02-07 | Hager Africa

      Installation manual International 2022-02-07

      PDF
      4,31 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-11-14

      PDF
      257,02 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-12-19

      PDF
      258,36 kB
