Dimmer 3 outputs KNX, 1/10V TX211A
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Operating voltage over bus21 - 32 V
-
System supply voltage30 V DC Via bus
Electric current
-
Rated current IN50 A
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Operating temperature0 - 45 °C
Connection
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Connector/plug typeDRA (DIN-rail Adapter)
Equipment
-
Number of outputs3
-
Type of dimmer1 - 10 V
-
With batteryNo
Capacity
-
Number of modules4
Power
-
230 V incandescent and halogen lamp2300 W
-
Power of variator0 - 2300 W
Connectivity
-
With bus system KNX radioNo
-
Type of connectionScrew terminal
Settings
-
Supported configuration modeETS
Texts
-
Type of connectionWith screw terminals
Data act compliance
-
Is generating dataYes
-
Data typesBasic information, Dimming level control, On/Off status, Scenes
-
Data formatsMODBUS (RTU)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
Materials
-
RAL code7035
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

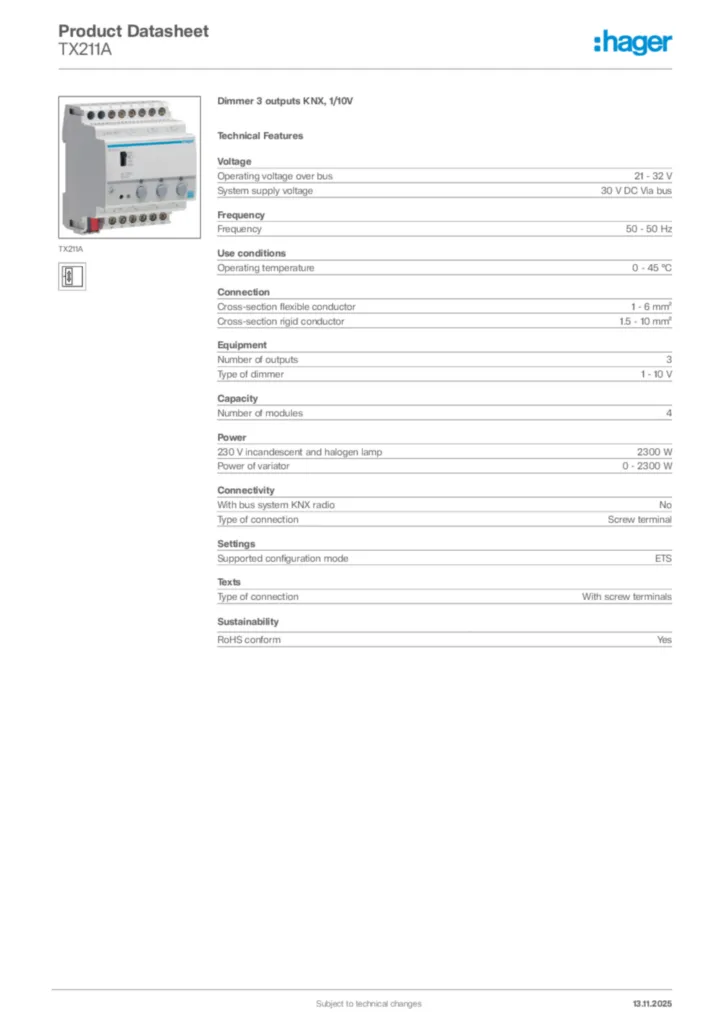

Product datasheet
Hager Product data sheet TX211A
Dimmer 3 outputs KNX, 1/10V
PDF -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2026-07-17
PDF404,30 kB
