    KNX-DALI 2 actuator, 4 channels, broadcast, KNX Secure, easy, RGB(T)W TYAS664D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    KNX-DALI 2 actuator, 4 channels, broadcast, KNX Secure, easy, RGB(T)W

    TYAS664D

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Power supply for bus system 3 products available
    • Surge protec­tion device for data network­s/MCR tech­no­logy 1 products available
    • Inter­face for bus system 1 products available
    • System inter­face/­media gateway for bus system 2 products available
    • Connec­tion/branching terminal for bus system 1 products available
    • Area/line coupler for bus system 1 products available

    Complete your system

    • Power supply for bus system
    • Surge protec­tion device for data network­s/MCR tech­no­logy
    • Inter­face for bus system
    • System inter­face/­media gateway for bus system
    • Connec­tion/branching terminal for bus system
    • Area/line coupler for bus system
    • TXA111

      Power supply 30V DC 320 mA
      0.00 €  / *
    • TXA112

      Power supply 30V DC 640 mA
      0.00 €  / *
    • TXA114

      Power supply 1x 30V DC KNX + 1x 24V DC
      0.00 €  / *
    • TG029

      Surge protection device, KNX
      0.00 €  / *
    • TYFS122

      Modular USB KNX Secure Interface
      0.00 €  / *
    • TYFS120

      KNX/IP Secure interface, 1 module
      0.00 €  / *
    • TYFS121

      Router KNX/IP Secure, 1 module
      0.00 €  / *
    • TG008

      Connectors for twisted pair termination red/black
      0.00 €  / *
    • TYFS130

      Line Coupler, KNX Secure
      0.00 €  / *

    Technical properties

    Equip­ment
    • Web server
      No
    • Number of chan­nels
      4
    • Max. number of devices per channel
      24
    Voltage
    • Oper­ating voltage
      230 - 240 V
    • Oper­ating voltage over bus
      21 - 32 V
    • Type voltage supply
      AC
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Controls and indic­ators
    • With LED indic­a­tion
      Yes
    Dimen­sions
    • Width
      44 mm
    • Depth
      43 mm
    • Number of width units
      6
    Connec­tion
    • Connect­or/plug type
      DRA (DIN-rail Adapter)

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Heating actuator 6 channels KNX, with regulation, 24/230V (English)
    PDF
    266,23 kB
    REACH declaration TYAS664D
    PDF
    RoHS report TYAS664D
    PDF

    Downloads

    • Image TYAS664D | Hager Africa

      Product Image TYAS664D

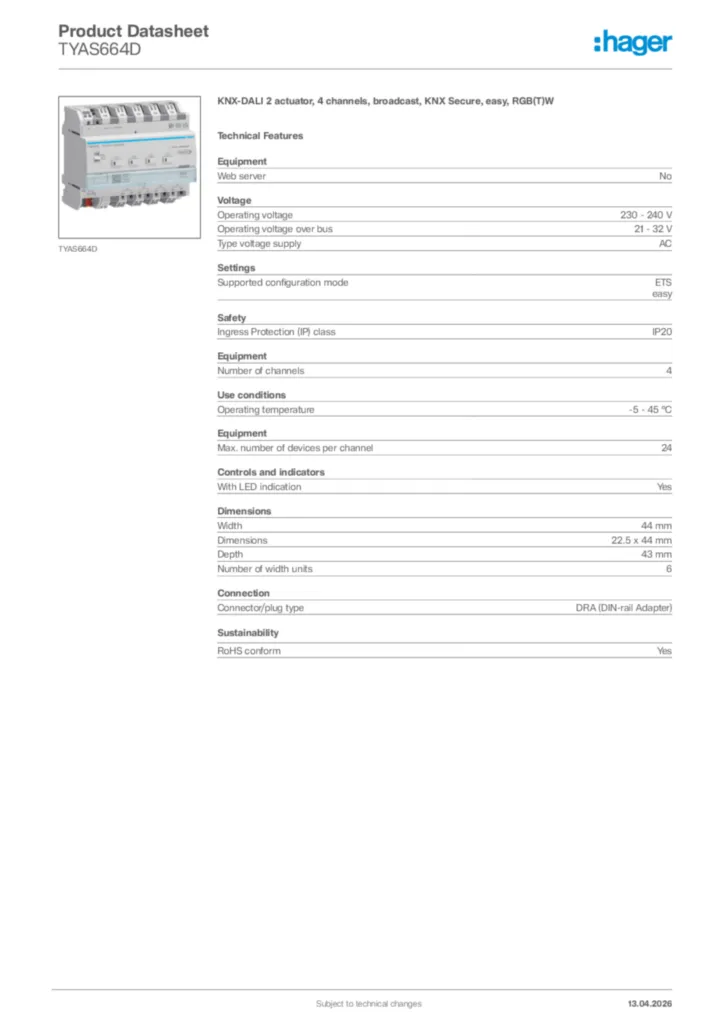

    • Product datasheet

      Image Hager Product data sheet TYAS664D | Hager Africa

      Hager Product data sheet TYAS664D

      KNX-DALI 2 actuator, 4 channels, broadcast, KNX Secure, easy, RGB(T)W

      PDF

    • Manual

      Image Manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, ar, zh-CN 2025-09-23 | Hager Africa

      Manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, ar, zh-CN 2025-09-23

      PDF
      5,67 MB
      Image Manual en-GB 2025-08-13 | Hager Africa

      Manual en-GB 2025-08-13

      PDF
      1,52 MB

    • Tool

      Image Firmware | Hager Africa

      Firmware

      Tool en-GB 2024-07-19

      ZIP
      306,83 kB

    • KNX product database

      Image ETS database for TYAS664D | Hager Africa

      ETS database for TYAS664D

      KNX product database International 2024-03-28

      KNXPROD
      508,40 kB

    • Application Guide

      Image Application Guide de-DE 2015-09-24 | Hager Africa

      Application Guide de-DE 2015-09-24

      PDF
      1,85 MB
      Image Application Guide en-GB 2015-09-24 | Hager Africa

      Application Guide en-GB 2015-09-24

      PDF
      1,83 MB
      Image Application Guide fr-FR 2015-09-24 | Hager Africa

      Application Guide fr-FR 2015-09-24

      PDF
      1,87 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Africa

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-04-04

      PDF
      313,34 kB
      Image UKCA Declaration Of Conformity | Hager Africa

      UKCA Declaration Of Conformity

      Declaration of conformity en-GB 2024-04-04

      PDF
      270,54 kB
