The Hager Flush mounted radio output 3A 230V with 2 inputs is a mains-powered KNX Radio receiver (category 2) for hidden installation behind inserts. It switches up to 3A/690 W (500 W incandescent/halogen) at 230 V, with bidirectional 433 MHz communication and manual override. Two inputs enable local control. Factory reset, screw lift terminals, IP20, -10…50°C. Ideal for retrofitting lighting and small loads.

EAN

3250618502107

Packaging

1 Piece

Flush-mounted KNX radio output 200W 2-wire + 2 inputs 230V bidirectional TRM693AU

Technical properties
Environmental value
Documentations
More products

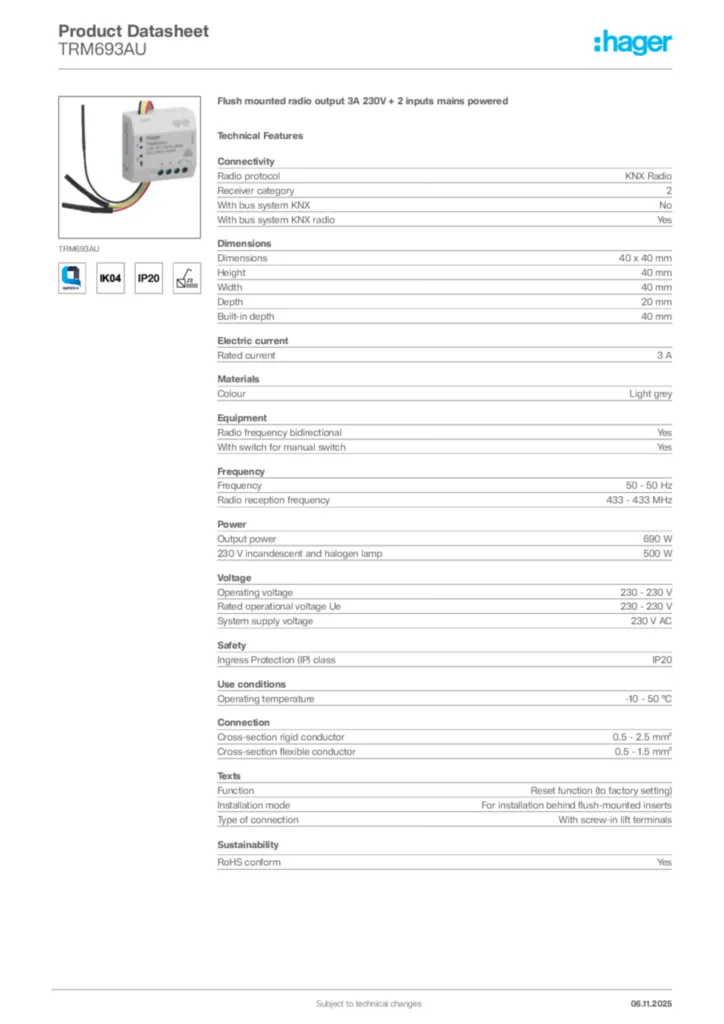

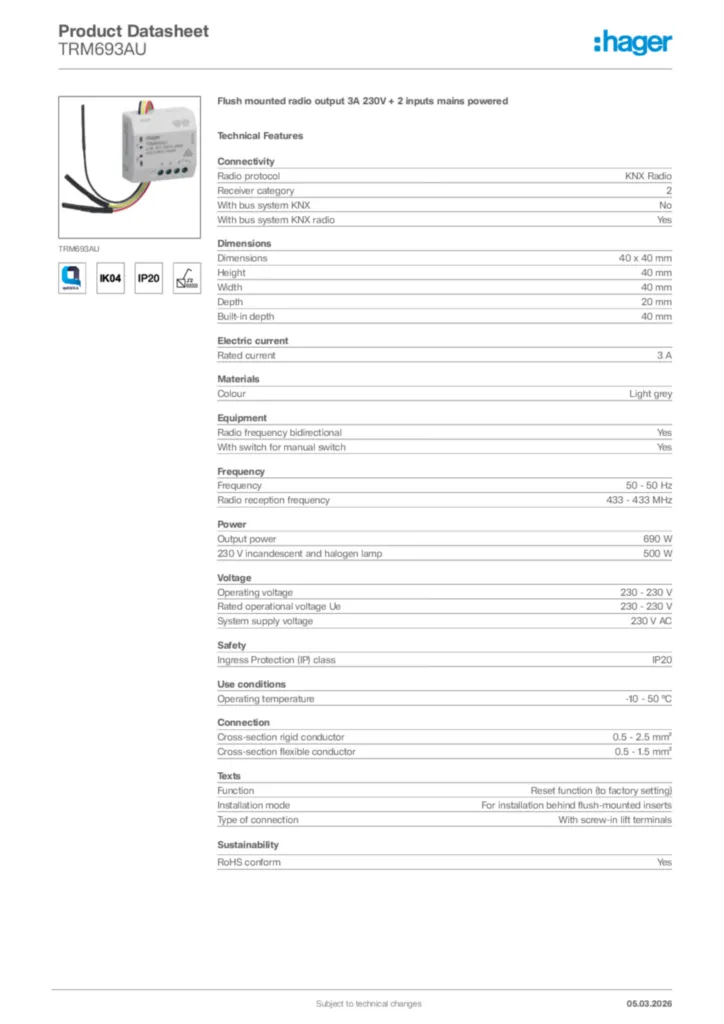

Download the data sheet

Technical properties

Radio protocol

KNX Radio
Receiver category

2
With bus system KNX

No
With bus system KNX radio

Yes

Height

40 mm
Width

40 mm
Depth

20 mm
Built-in depth

40 mm

Mounting on

Flush mounting

Colour

Light grey

Radio frequency bidirectional

Yes
With switch for manual switch

Yes

Max. switching current

3 A
Rated current IN

3 A

Frequency

50 - 50 Hz
Radio reception frequency

433 - 433 MHz

Output power

690 W
230 V incandescent and halogen lamp

500 W
Power incandescent lamp

500 - 500 W

Operating voltage

230 - 230 V
Rated operational voltage Ue

230 - 230 V
System supply voltage

230 V AC

Ingress Protection (IP) class

IP20

Operating temperature

-10 - 50 °C

Cross-section rigid conductor

0.5 - 2.5 mm²
Cross-section flexible conductor

0.5 - 1.5 mm²

Function

Reset function (to factory setting)
Installation mode

For installation behind flush-mounted inserts
Type of connection

With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
