    1 FLUSH MOUNTED OUTPUT 200W, 2 WIRES + 2 INPUTS KNX RF TRM690G

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    1 FLUSH MOUNTED OUTPUT 200W, 2 WIRES + 2 INPUTS KNX RF

    TRM690G

    • Technical properties
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Connectivity
    • Radio protocol
      KNX Radio
    • Receiver category
      2
    • With bus system KNX
      No
    • With bus system KNX radio
      Yes
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy, quick­link
    Dimen­sions
    • Height
      18 mm
    • Width
      40 mm
    • Depth
      18 mm
    • Built-in depth
      40 mm
    Mater­ials
    • Colour
      Light grey
    Equip­ment
    • Radio frequency bidirec­tional
      Yes
    • With switch for manual switch
      Yes
    Elec­tric current
    • Rated current
      0.85 A
    Frequency
    • Frequency
      50 - 50 Hz
    • Radio recep­tion frequency
      868.30 - 868.30 MHz
    Power
    • Output power
      200 W
    Voltage
    • Oper­ating voltage
      230 - 230 V
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • System supply voltage
      230 V AC
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -15 - 45 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      0.5 - 2.5 mm²
    • Cross-sec­tion flex­ible conductor
      0.5 - 1.5 mm²
    Texts
    • Func­tion
      Easy addi­tional func­tions: +6 scenes, Reset func­tion (to factory setting)
    • Install­a­tion mode
      For install­a­tion behind flush-­mounted inserts
    • Type of connec­tion
      With screw-in lift terminals

    Downloads

    • Image TRM690G | Hager Africa

      Product Image TRM690G

    • Product datasheet

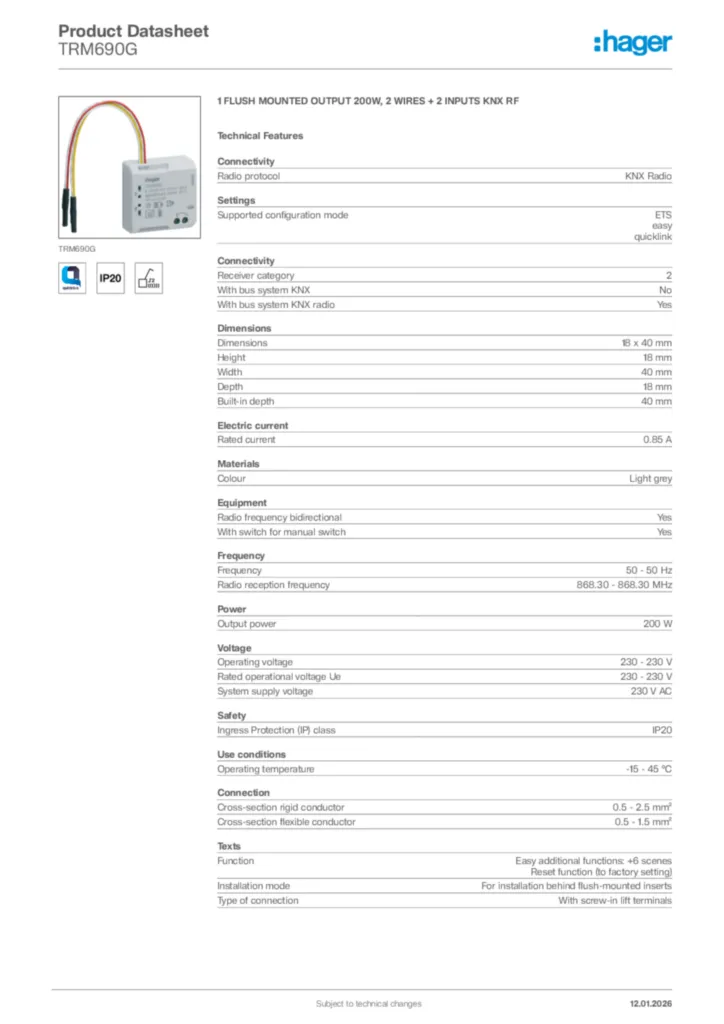

      Image Hager Product data sheet TRM690G | Hager Africa

      Hager Product data sheet TRM690G

      1 FLUSH MOUNTED OUTPUT 200W, 2 WIRES + 2 INPUTS KNX RF

      PDF

    • Declaration of conformity

      Image Declaration of conformity International 2022-10-04 | Hager Africa

      Declaration of conformity International 2022-10-04

      PDF
      114,06 kB
      Image Declaration of conformity International 2022-10-04 | Hager Africa

      Declaration of conformity International 2022-10-04

      PDF
      146,08 kB
