Hager BG 1034 bar/cable-through current transformer for accurate metering and protection: 2000/5 A ratio, 30 VA burden, Class 1 accuracy. Plug-in design with large 85 × 101 mm window for easy busbar/cable fit, DIN rail or plate mounting. Rated 50-60 Hz, up to 720 V, 3 kV withstand, IP10, class F. High fault endurance: Ith 60×Ipr, Idyn 2.5×Ith. Wire connections 1.5-6 mm². Ideal for LV switchboards.

EAN

4049857139460

Packaging

1 Piece

Bar/Cable-through CT 2500/5A 30VA Class 1 Plug-in BG1034 SRF20005

Technical properties
Environmental value
Documentations
More products

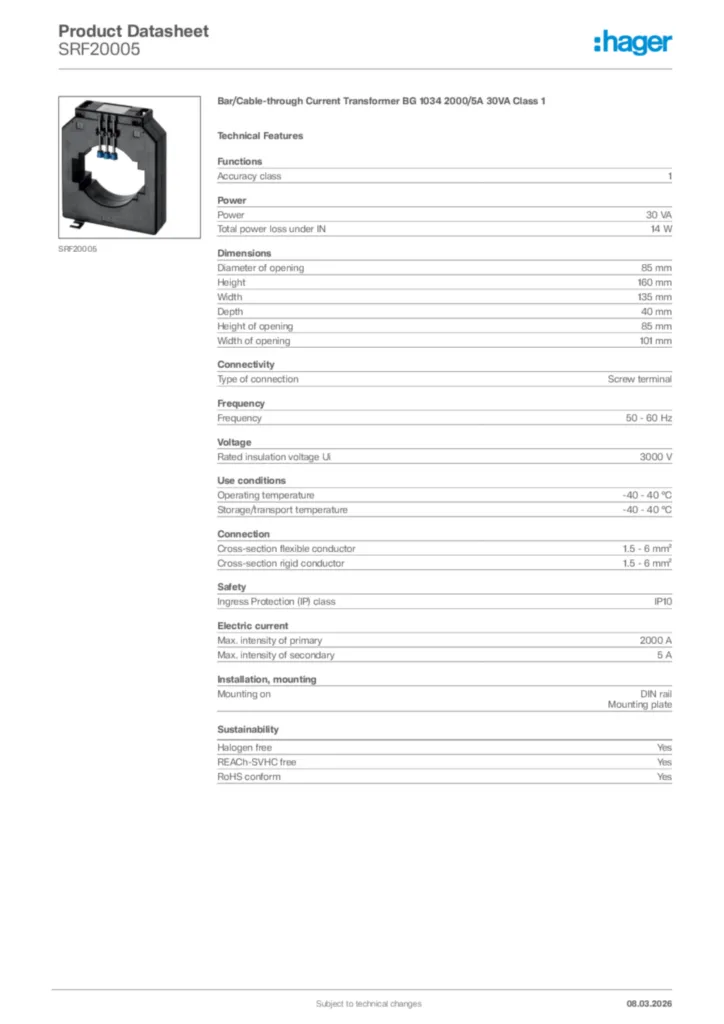

Download the data sheet

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

30 VA
Total power loss under IN

14 W

Diameter of opening

85 mm
Height

160 mm
Width

135 mm
Depth

40 mm
Height of opening

85 mm
Width of opening

101 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

F

Rated primary current (Ipr)

2000 A
Rated secondary current (Isr)

5 A
Rated current

2000 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
