The Hager BG814 bar/cable-through current transformer 1000/5 A, 15 VA, Class 1 provides accurate metering and protection in LV panels. Plug-in design with 60 mm window fits busbars or cables; screw terminals 1.5-6 mm². Durable: Ith 60xIpr, Idyn 2.5xIth, FS5, 3 kV withstand, 720 V max, Class E. DIN rail or plate mounting. Operating −40 to 40 °C, 50-60 Hz. Ideal for switchboards and energy monitoring.

EAN

4049857250080

Packaging

1 Piece

Plug-in bar/cable-through current transformer 400/5A 5VA Class 1 BG413 SRE100051

Technical properties
Environmental value
Documentations
More products

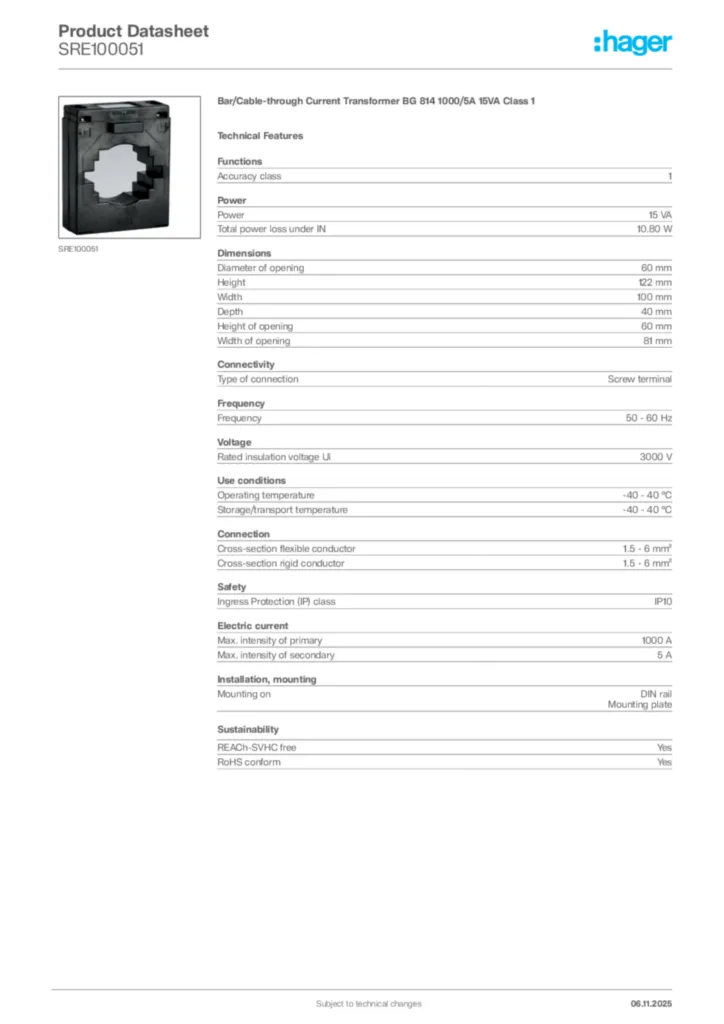

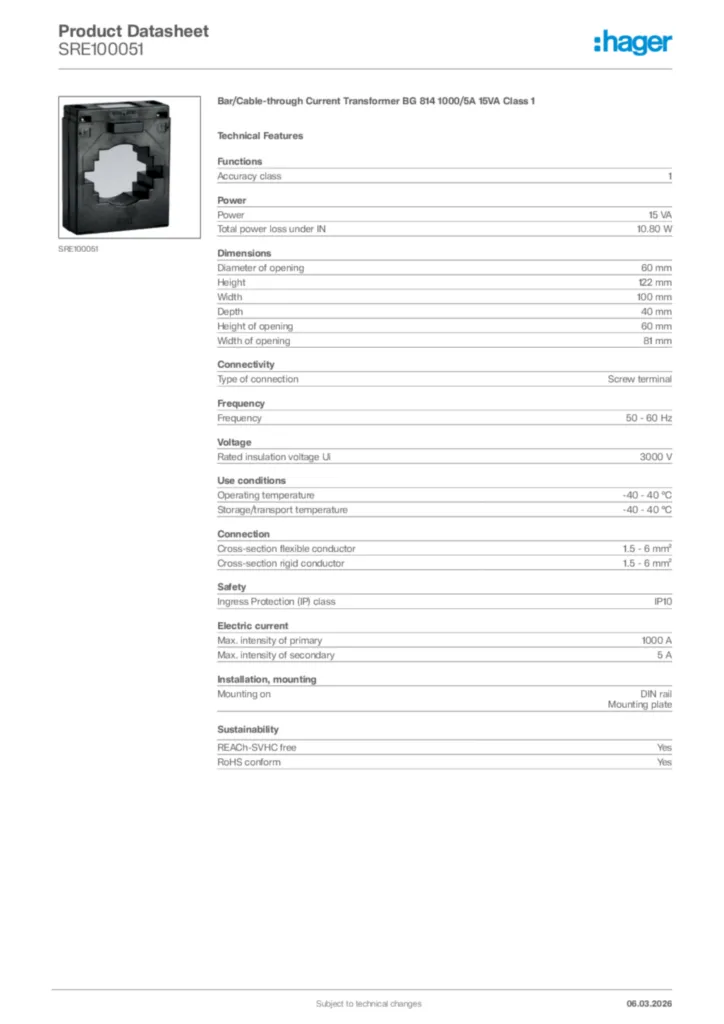

Download the data sheet

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

15 VA
Total power loss under IN

10.80 W

Diameter of opening

60 mm
Height

122 mm
Width

100 mm
Depth

40 mm
Height of opening

60 mm
Width of opening

81 mm

Type of connection

Screw terminal

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

1000 A
Rated secondary current (Isr)

5 A
Rated current

1000 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
