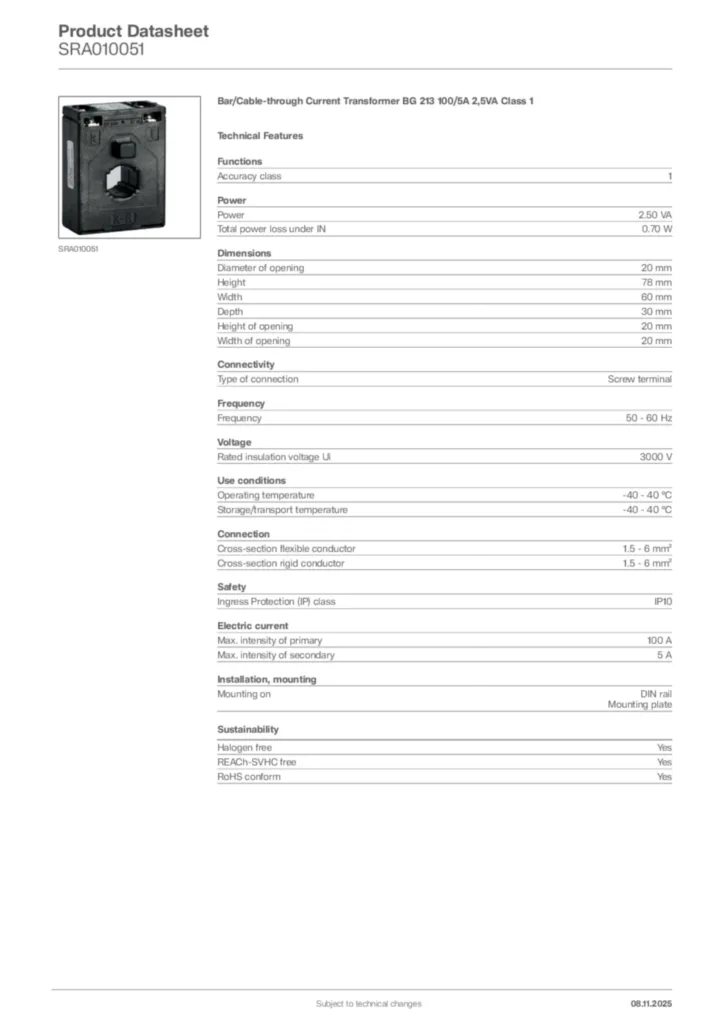

The Hager BG213 bar/cable-through current transformer 100/5 A, 2.5 VA, Class 1 provides accurate measurement for metering and protection on 50-60 Hz systems. Its 20 mm window fits bars or cables, with plug-in design and wire terminals for quick install on DIN rail or plate. High withstands (Ith 60×Ipr, Idyn 2.5×Ith, FS5) and -40 to 40 °C operation ensure reliability up to 720 V, 3 kV rms. Low loss 0.7 W.

EAN

4049857250035

VPE

1 piece

Current transformer bar/cable-through 1500/5A 5VA Class 1 45x65mm window SRA010051

Accessories
Technical characteristics
catalog.pageproduct.title_sustainability.h2
Documentations
More products

product.page.accessories.title

DIN rail adapter 1 product.page.accessories.products-available

Technical characteristics

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

2.50 VA
Power dissipation at IN

0.70 W

Diameter of opening

20 mm
Height

78 mm
Width

60 mm
Depth

30 mm
Height of opening

20 mm
Width of opening

20 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

100 A
Rated secondary current (Isr)

5 A
Rated current IN

100 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
