The Hager L‑N surge protection cartridge (Uc 275 V) shields AC networks from transient overvoltages. Type 2 per IEC 61643, it delivers In 20 kA and Imax 40 kA with a low Up 1.35 kV for effective limiting. Suitable for TN and TT systems at 240-415 V, 50/60 Hz. Its compact 1‑module size saves space. Operating -40 to 80 °C, it’s ideal for main and sub‑distribution boards to protect sensitive equipment.

EAN

3250615515346

Packaging

1 Piece

Surge Protection Device (SPD)

Surge arrester L-N Uc 275V In 5kA Imax 15kA Up 1.35kV T2 1 Module SPB040D

Technical properties
Environmental value
Documentations
More products

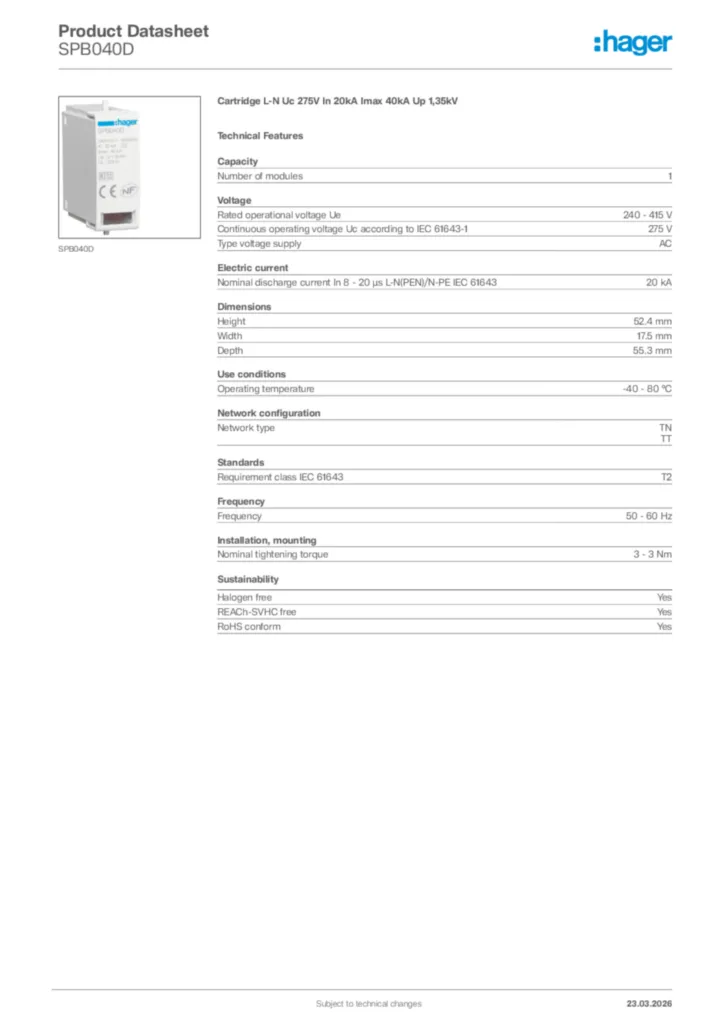

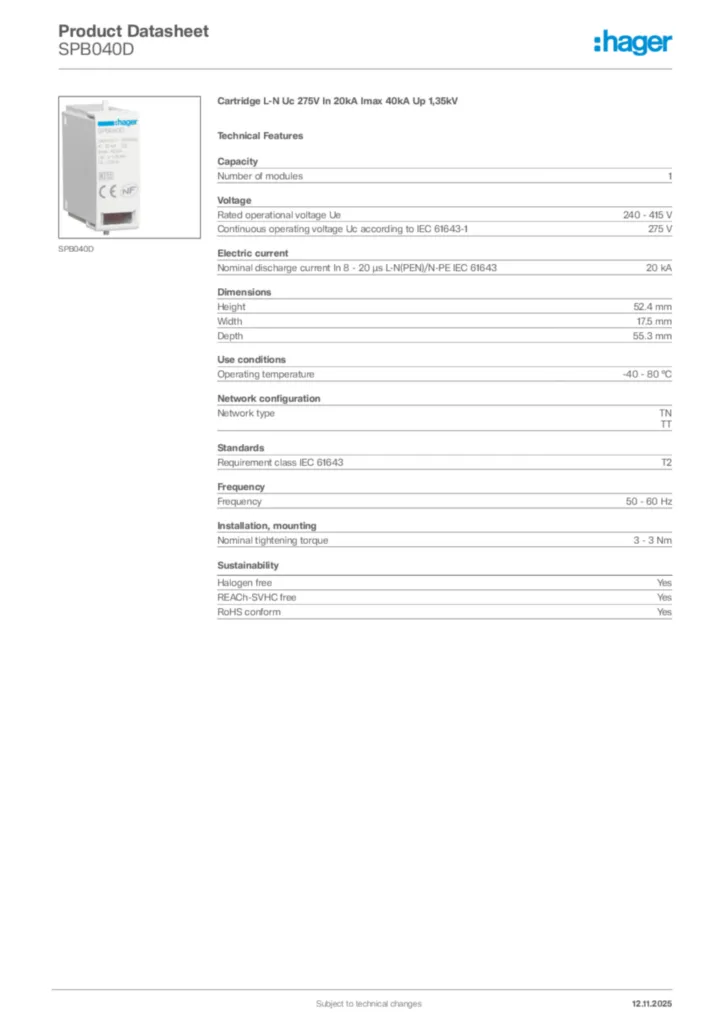

Download the data sheet

Technical properties

Number of modules

1

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

275 V
Type voltage supply

AC

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

20 kA

Height

52.4 mm
Width

17.5 mm
Depth

55.3 mm

Operating temperature

-40 - 80 °C

Network type

TN, TT

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 3 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
