Combined SPD T1+T2 4P Uc 350V Iimp 25kA Up 1.5kV TNS/TT with remote contact SPA801

Name: SPA801
Brand: Hager
SKU: SPA8011

EAN

3250615514844

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

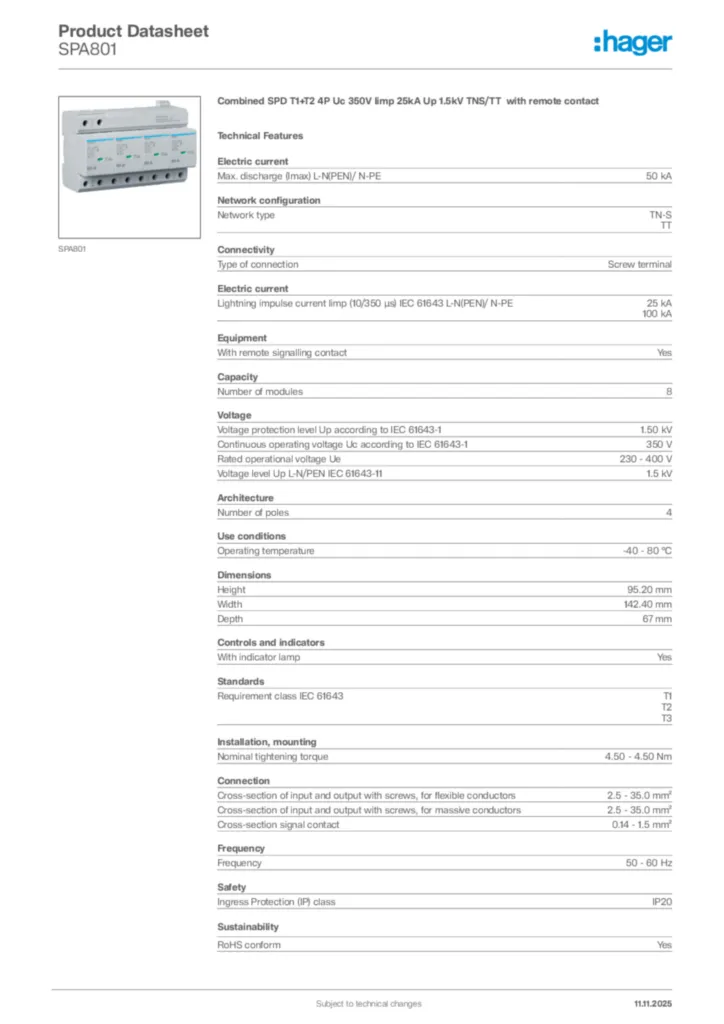

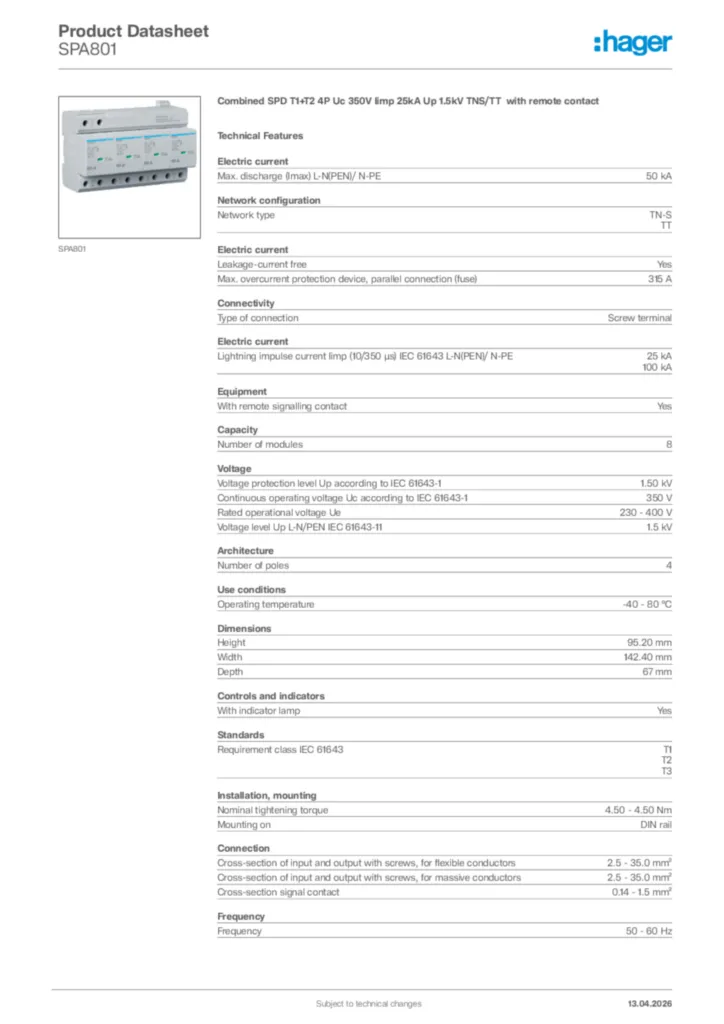

Download the data sheet

Complete your system

Modular phase busbar 1 products available

Technical properties

Max. discharge (Imax) L-N(PEN)/ N-PE

50 kA
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE

25 kA, 100 kA

Network type

TN-S, TT

Type of connection

Screw terminal

With remote signalling contact

Yes

Number of modules

8

Voltage protection level Up according to IEC 61643-1

1.50 kV
Continuous operating voltage Uc according to IEC 61643-1

350 V
Rated operational voltage Ue

230 - 400 V
Voltage level Up L-N/PEN IEC 61643-11

1.5 kV

Number of poles

4

Operating temperature

-40 - 80 °C

Height

95.20 mm
Width

142.40 mm
Depth

67 mm

With indicator lamp

Yes

Requirement class IEC 61643

T1, T2, T3

Nominal tightening torque

4.50 - 4.50 Nm

Cross-section of input and output with screws, for flexible conductors

2.5 - 35.0 mm²
Cross-section of input and output with screws, for massive conductors

2.5 - 35.0 mm²
Cross-section signal contact

0.14 - 1.5 mm²

Frequency

50 - 60 Hz

Ingress Protection (IP) class

IP20

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
