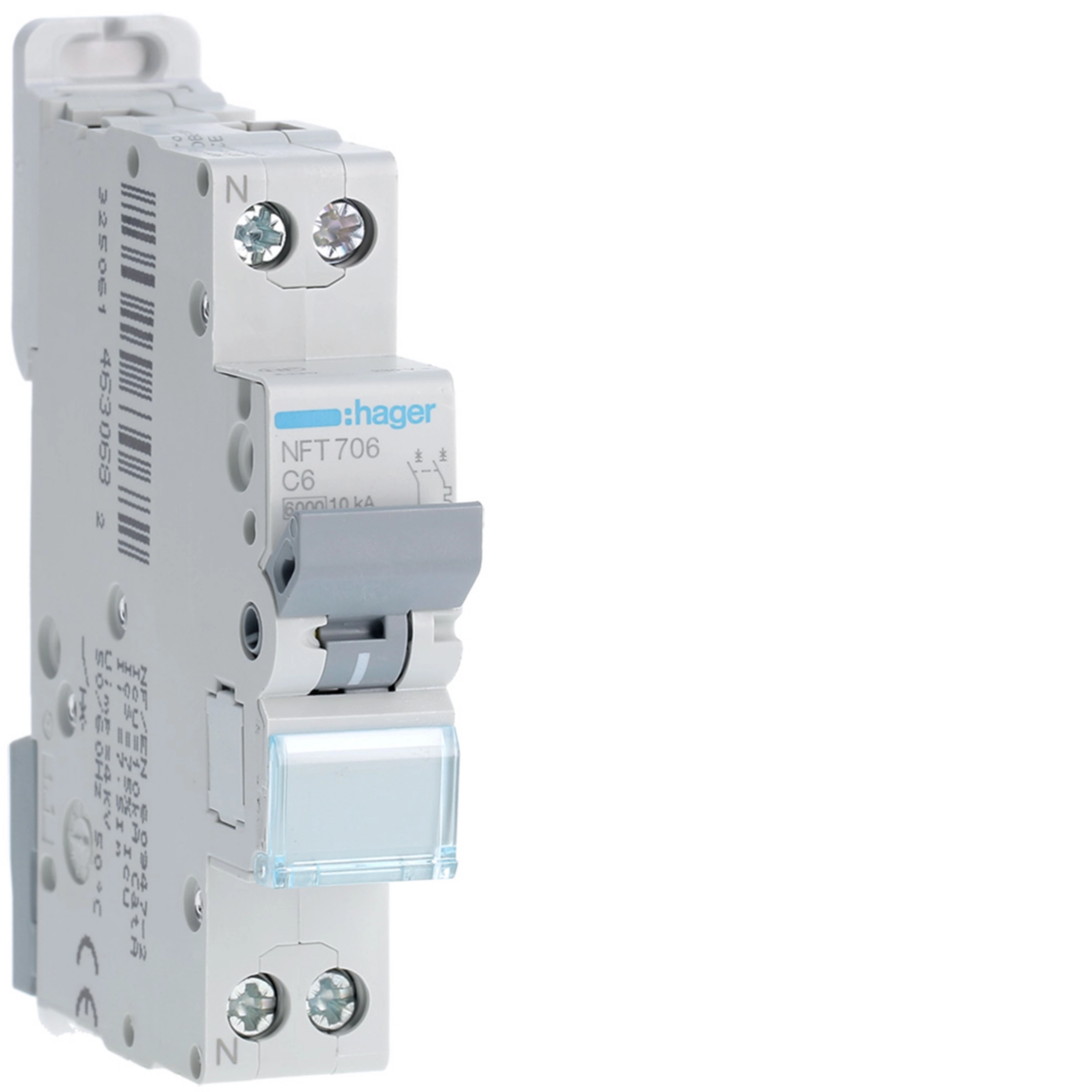

The Hager MCB 1P+N C-6A 1M miniature circuit breaker protects single-phase circuits against overloads and short circuits. Its C-curve and 6 A rating suit mixed residential/light commercial loads. Breaking capacity 6 kA (IEC 60898-1) and 10 kA Icu (IEC 60947-2). 230-240 V, 50/60 Hz. Compact 1-module (17.7 mm) with screw terminals. IP20, -25…60 °C. Ideal for space-saving, reliable protection in panels.

EAN

3250614630682

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

Modular switch 2P 63A 400V AC22A DIN rail 2 modules NFT706

Accessories
Technical properties
Environmental value
Documentations
More products

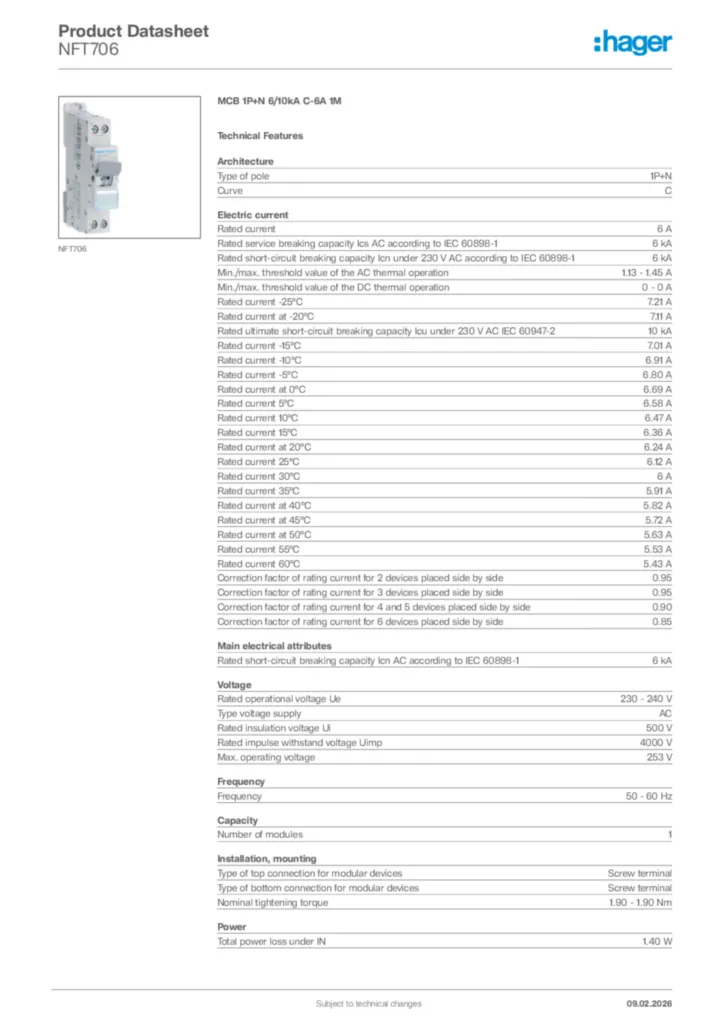

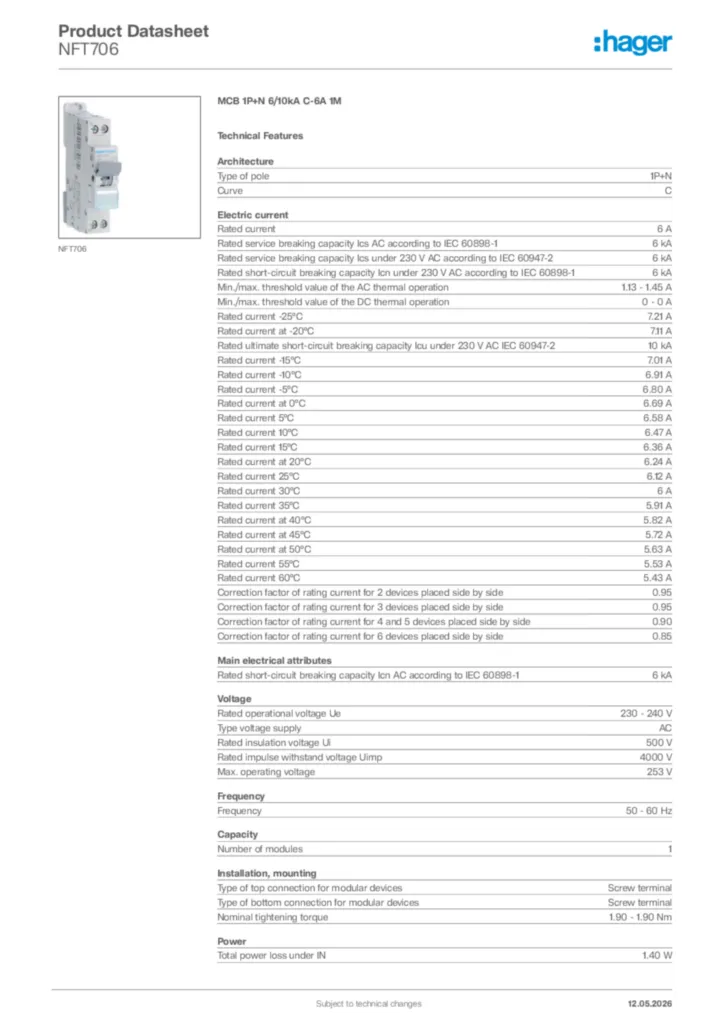

Download the data sheet

Complete your system

AOB type AC 2 products available

Technical properties

Rated current IN

6 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

6 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

10 kA
Rated current at -15°C

7.02 A
Rated current at -10°C

6.91 A
Rated current at -5°C

6.8 A
Rated current at 0°C

6.68 A
Rated current at 5°C

6.57 A
Rated current at 10°C

6.46 A
Rated current at 15°C

6.34 A
Rated current at 20°C

6.23 A
Rated current at 25°C

6.11 A
Rated current at 30°C

6 A
Rated current at 35°C

5.91 A
Rated current at 40°C

5.82 A
Rated current at 45°C

5.72 A
Rated current at 50°C

5.63 A
Rated current at 55°C

5.54 A
Rated current at 60°C

5.45 A
Rated current at 65°C

5.35 A
Rated current at 70°C

5.26 A
Rated service breaking capacity Ics AC according to IEC 60947-2

75 %
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

20 kA

Type of pole

1P+N
Curve

C

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque

1.90 - 1.90 Nm
Type of bottom connection for modular devices

Screw terminal
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

0.75 - 16.0 mm²
Cross-section of input and output with screws, for flexible conductors

0.75 - 10.0 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

1.40 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Shifted terminal
Down connection alignment for modular devices

Shifted terminal

Height

84.70 mm
Width

17.70 mm
Depth

70 mm
