MCB 1P+N 6kA C-6A 1M MLN706

Accessories
Technical properties
Environmental value
Documentations
More products

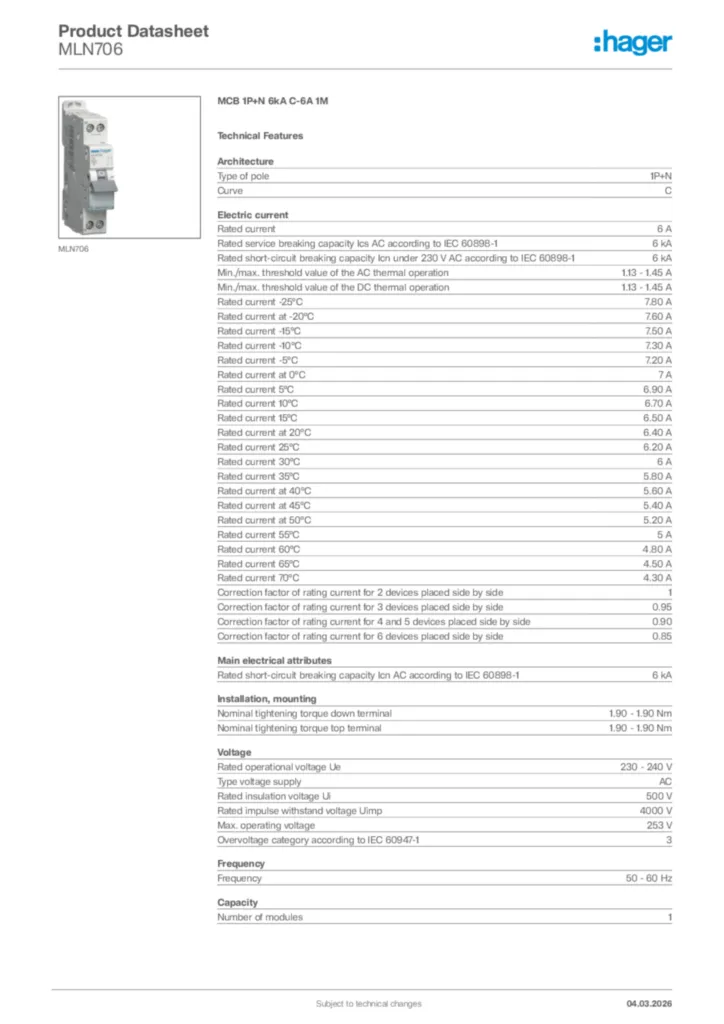

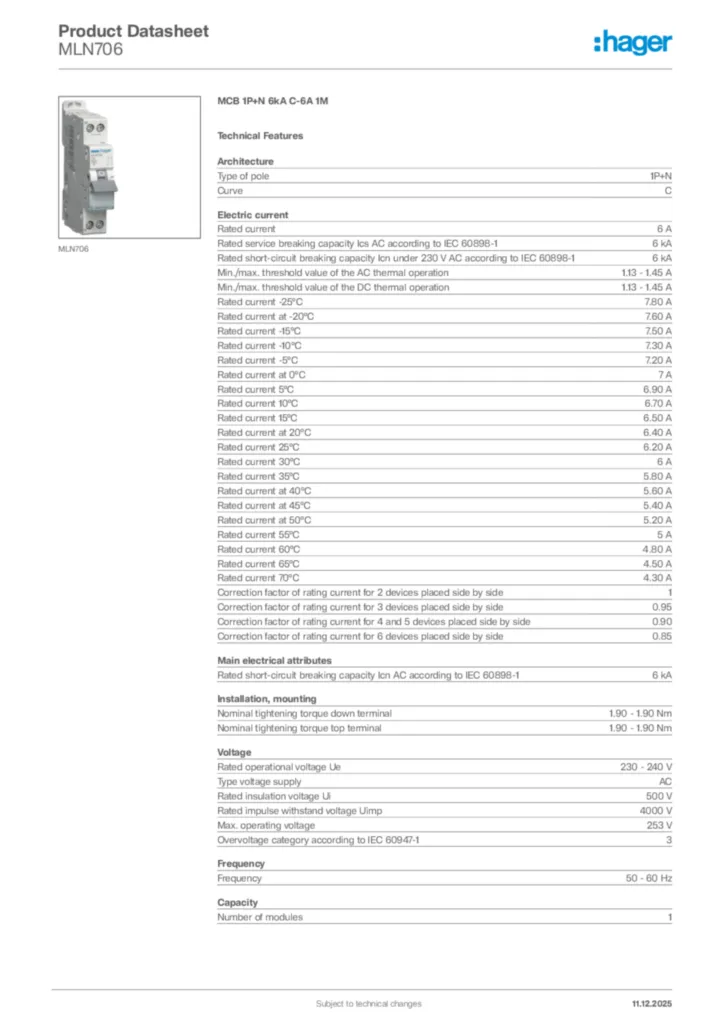

Download the data sheet

Complete your system

Protective cap/strip for phase busbar 1 products available
Modular phase busbar 4 products available

Technical properties

Type of pole

1P+N

Rated current

6 A
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Min./max. threshold value of the DC thermal operation

1.13 - 1.45 A
Rated current -25°C

7.80 A
Rated current at -20°C

7.60 A
Rated current -15°C

7.50 A
Rated current -10°C

7.30 A
Rated current -5°C

7.20 A
Rated current at 0°C

7 A
Rated current 5°C

6.90 A
Rated current 10°C

6.70 A
Rated current 15°C

6.50 A
Rated current at 20°C

6.40 A
Rated current 25°C

6.20 A
Rated current 30°C

6 A
Rated current 35°C

5.80 A
Rated current at 40°C

5.60 A
Rated current at 45°C

5.40 A
Rated current at 50°C

5.20 A
Rated current 55°C

5 A
Rated current 60°C

4.80 A
Rated current 65°C

4.50 A
Rated current 70°C

4.30 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque down terminal

1.90 - 1.90 Nm
Nominal tightening torque top terminal

1.90 - 1.90 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque

1.90 - 1.90 Nm

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V
Overvoltage category according to IEC 60947-1

3

Frequency

50 - 60 Hz

Number of modules

1

Total power loss under IN

1.30 W

Operating temperature

-25 - 70 °C
Max. Altitude

2000 m

Electric endurance in number of cycles

1000
Number of mechanical operations

20000

Ingress Protection (IP) class

IP20

Type of connection

Screw terminal
Top connection alignment for modular devices

Shifted terminal
Down connection alignment for modular devices

Shifted terminal

Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²

Height

84.70 mm
Width

17.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
