The Hager insulated 1P phase busbar (brown) streamlines power distribution across 13 modules. Rated 63 A, 415 V, with 4 kV impulse withstand, it offers robust, safe connections via 10 mm² pin prongs. At 228 mm, it fits standard boards and enables quick, tidy linking of MCBs/RCDs, improving assembly speed and reliability for residential and light commercial panels.
EAN
3250613720018
VPE
50 pieces
Insulated phase busbar 3P 63A pin 10mm² 12 modules KB163P
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles1
-
Type of pole1P
Dimensions
-
Length228 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules13
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

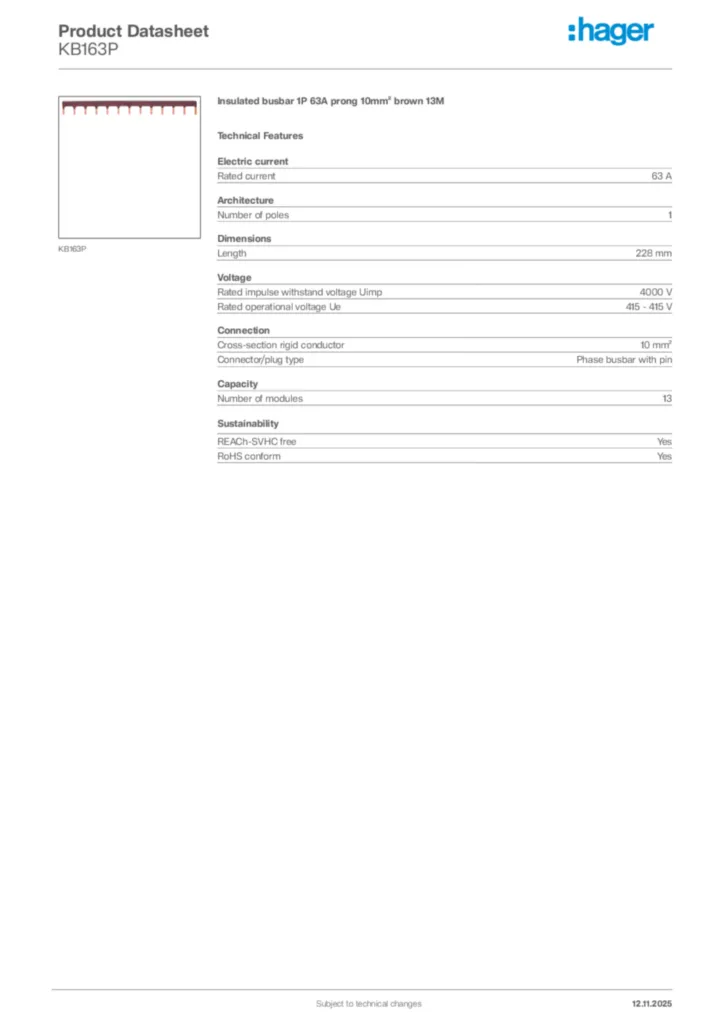

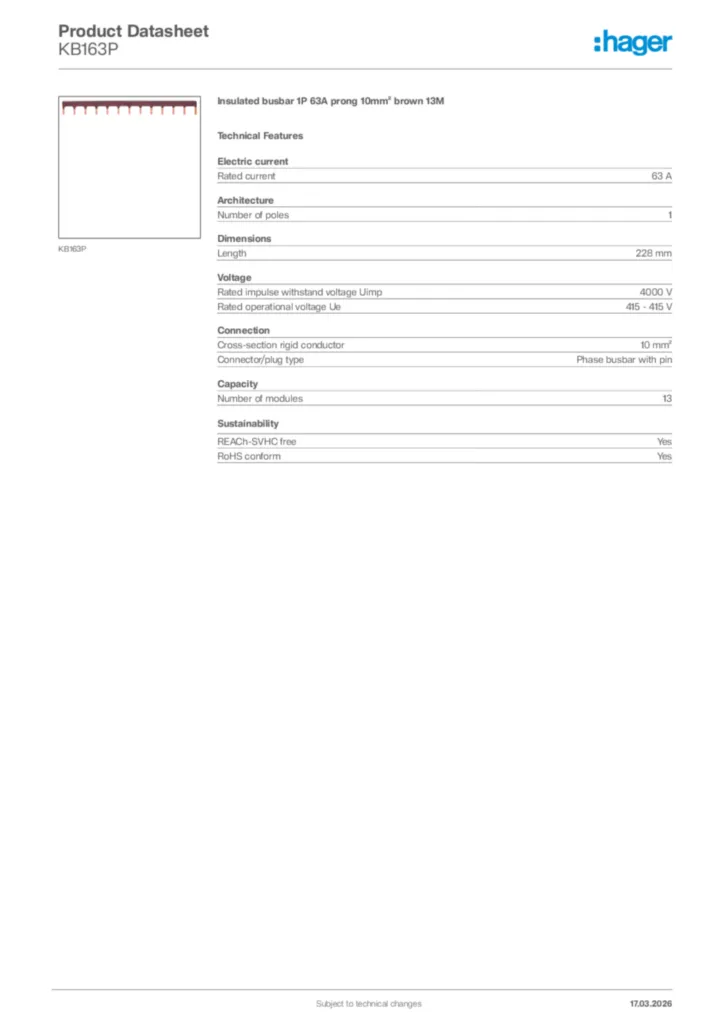

Hager Product data sheet KB163P
Insulated busbar 1P 63A prong 10mm² brown 13M
PDF -
ProductECDeclaration
Declaration of conformity en-US 2026-07-14
PDF261,74 kB
