The Hager MCB 3P 6kA B-40A 3M safeguards three-phase circuits against overloads and short circuits. Rated 40A with B-curve tripping, 6kA Icn (IEC 60898-1) and 10kA Icu at 400V (IEC 60947-2), it fits residential and light commercial boards. Compact 3 modules, 400V AC 50/60 Hz, Ui 500V, Uimp 4kV. Screw/bi-connect terminals, IP20, 360° mounting, -25 to +70°C.

EAN

3250614343537

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 2P 20A 6kA Curve C, 2 Modules, 400V AC MBN340A

Accessories
Technical properties
Environmental value
Documentations
More products

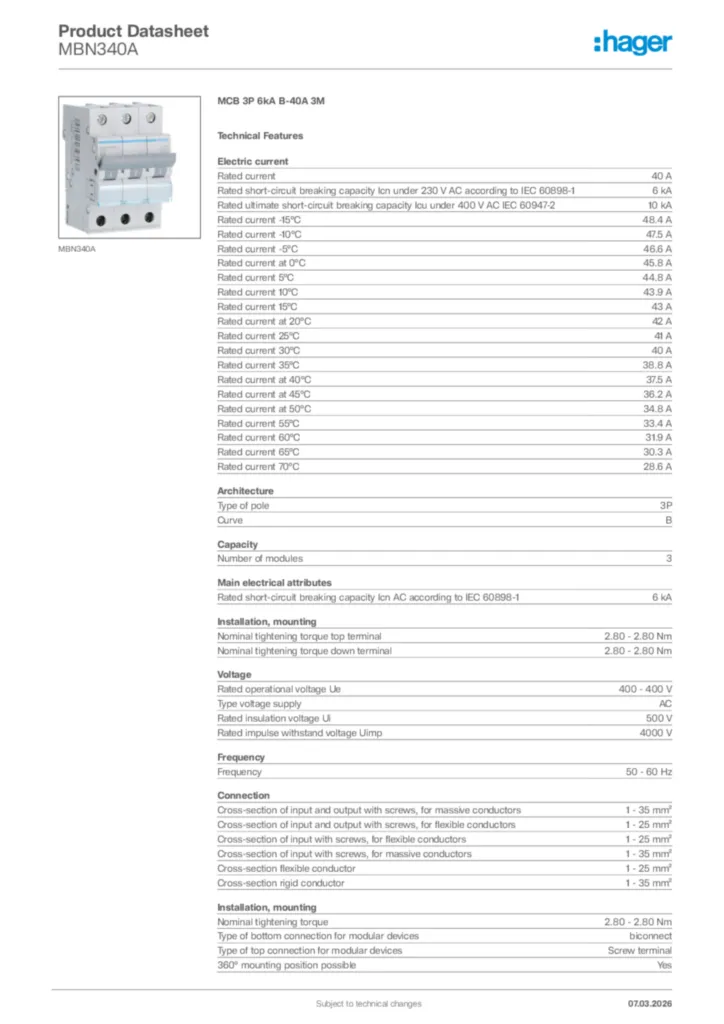

Download the data sheet

Complete your system

AOB type A-HI 1 products available
Modular phase busbar 3 products available
AOB type AC 1 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current IN

40 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

10 kA
Rated current -15°C

48.4 A
Rated current -10°C

47.5 A
Rated current -5°C

46.6 A
Rated current at 0°C

45.8 A
Rated current 5°C

44.8 A
Rated current 10°C

43.9 A
Rated current 15°C

43 A
Rated current at 20°C

42 A
Rated current 25°C

41 A
Rated current 30°C

40 A
Rated current 35°C

38.8 A
Rated current at 40°C

37.5 A
Rated current at 45°C

36.2 A
Rated current at 50°C

34.8 A
Rated current 55°C

33.4 A
Rated current 60°C

31.9 A
Rated current 65°C

30.3 A
Rated current 70°C

28.6 A

Curve

B

Number of modules

3

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - +70 °C

Power dissipation at IN

16.90 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

83 mm
Width

52.50 mm
Depth

70 mm
