The Hager flat 90° angle for LFS 60x100 trunking enables neat horizontal direction changes while maintaining cable capacity and protection. Made of varnished steel in traffic white (RAL9016), it delivers IK08 robustness and IP30 protection. The moulded piece ensures a precise fit (measurement a: 50 mm). Operating from -5 to 90°C and suitable for functional integrity per DIN 4102-12, it’s ideal for reliable indoor installations.

EAN

4012740007528

Packaging

Cable trunking systems - LF

External corner overlapping steel 90° LFS 60x100 RAL9016 IK08 IP30 LFS6010059016

Technical properties
Environmental value
Documentations
More products

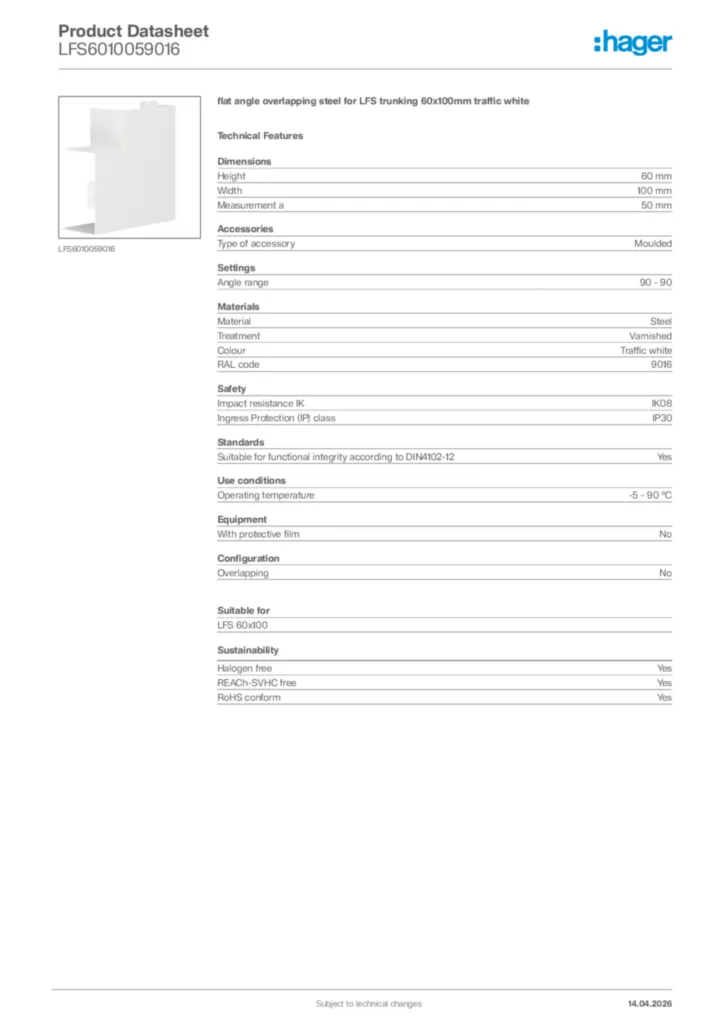

Download the data sheet

Technical properties

Height

60 mm
Width

100 mm
Measurement a

50 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Steel
Treatment

Varnished
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LFS 60x100

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
