The Hager LFS 60x100 external corner is an overlapping moulded fitting in varnished steel, traffic white RAL9016, for clean 90° trunking transitions. Dimensions 60×100 mm (A=50). Robust IK08 and IP30 protection, operating -5 to 90°C, and suitable for functional integrity per DIN 4102-12. Ideal for durable, discreet cable routing in residential and commercial installations.

EAN

4012740007504

Packaging

Cable trunking systems - LF

End cap Steel for LFS trunking 60x100mm Traffic white RAL9016 IK08 IP30 LFS6010039016

Technical properties
Environmental value
Documentations
More products

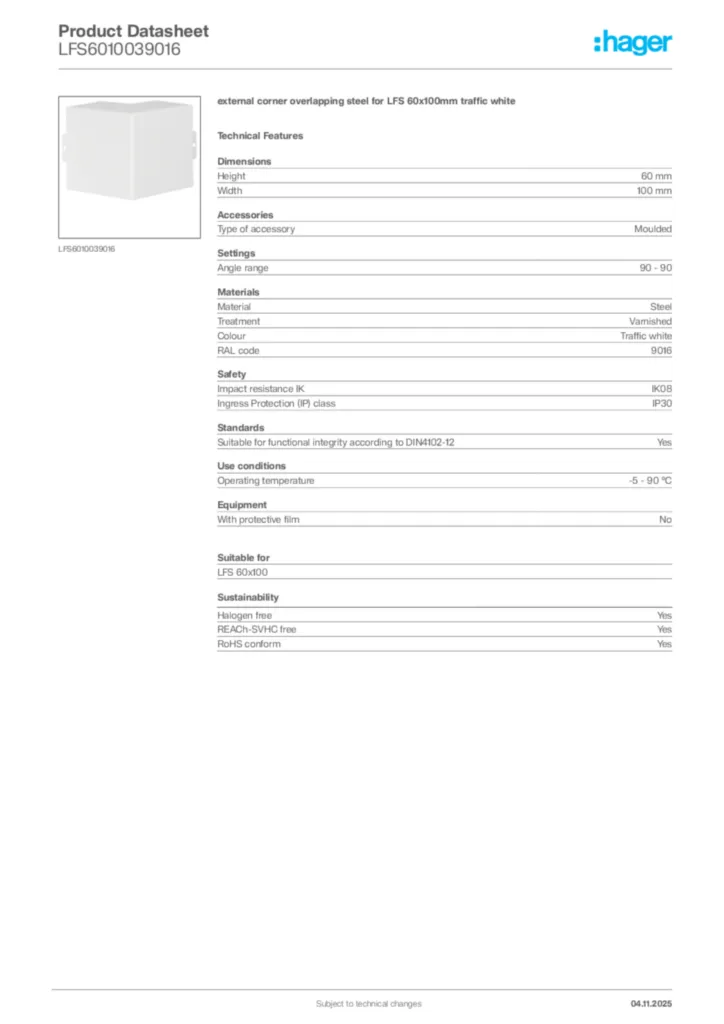

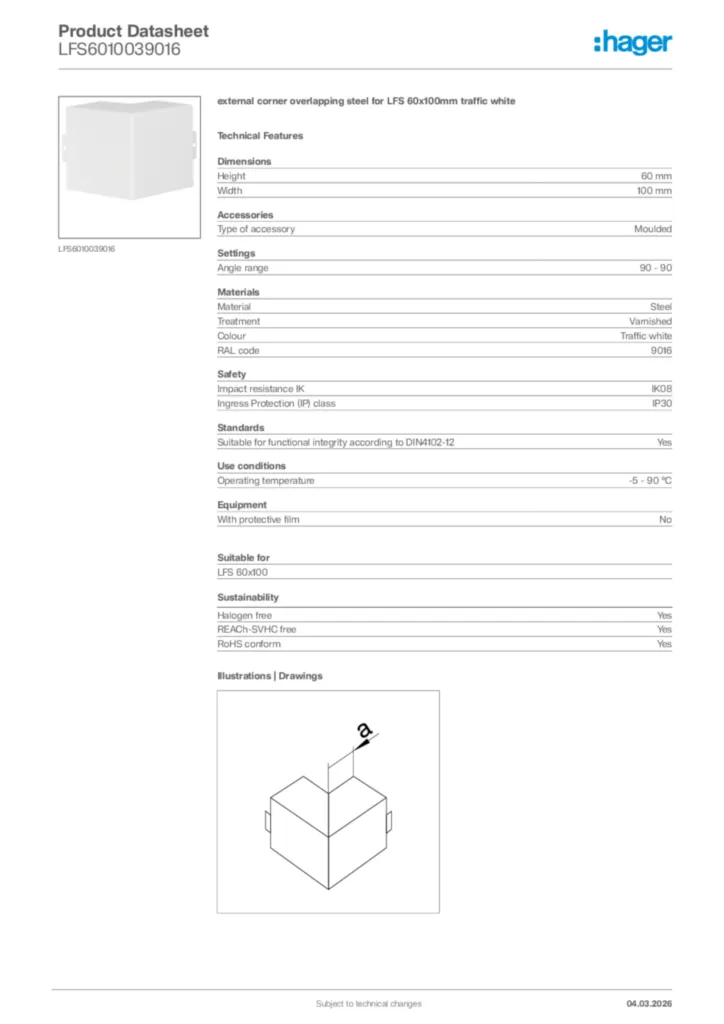

Download the data sheet

Technical properties

Height

60 mm
Width

100 mm
Measurement a

50 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Steel
Treatment

Varnished
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes

Related Series

LFS 60x100

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
