The Hager overlapping T-piece for LFS 40x60 trunking enables clean 90° branching in steel/plaster installations. Made of galvanized steel (zinc finish), it provides IK08 impact resistance and IP30 protection. The 200 mm overlap ensures secure, neat cable transitions. Suitable for functional integrity per DIN 4102-12 and operating from -5 to 60°C, it ensures reliable cable routing in demanding environments.

EAN

4012740023085

Packaging

Cable trunking systems - LF

End cap for LFS 40x60 trunking, galvanized steel, IK08, IP30 LFS400608VERZ

Technical properties
Environmental value
Documentations
More products

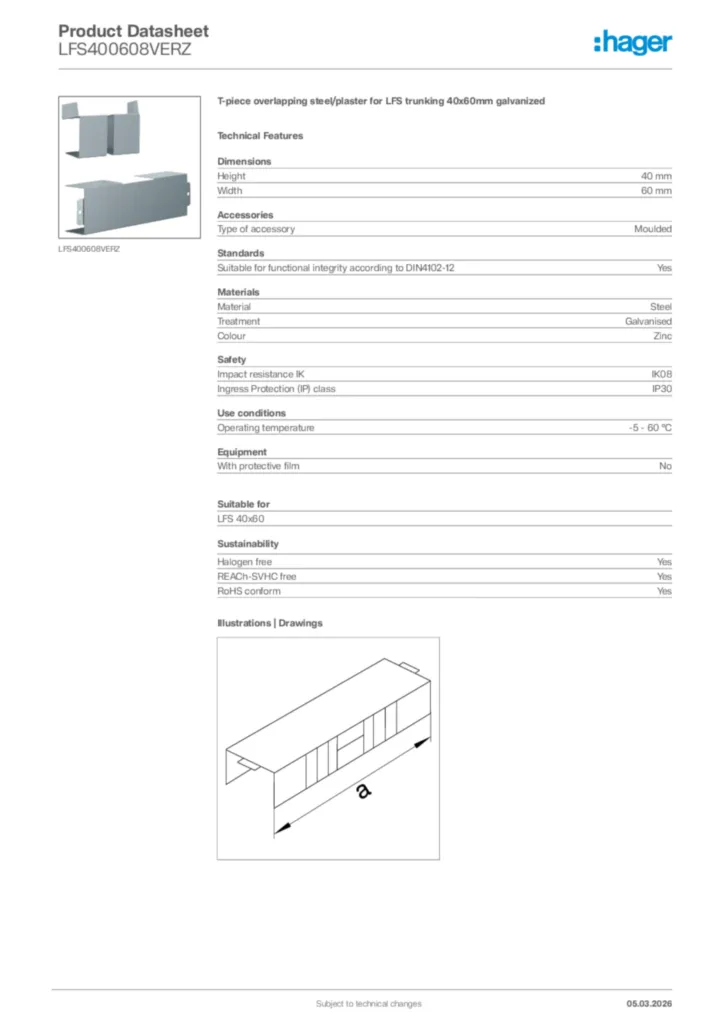

Download the data sheet

Technical properties

Height

40 mm
Width

60 mm
Measurement a

200 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

Yes

Material

Steel
Treatment

Galvanised
Colour

Zinc

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Related Series

LFS 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
