The Hager T-piece overlapping steel for LFS trunking 40x60mm, traffic white (RAL9016), enables neat T-branches in LFS 40x60 cable runs with an overlapping, moulded design for quick, aligned installation. Varnished steel ensures robustness (IK08), IP30 protection and functional integrity per DIN 4102-12. Dimensions 40x60 mm, 200 mm length. Operating temp -5 to 90 °C; ideal for commercial and residential containment.

EAN

4012740007436

Packaging

Cable trunking systems - LF

Flat angle overlapping steel LFS 40x60 trunking DIN4102-12 IK08 IP30 RAL9016 LFS4006089016

Technical properties
Environmental value
Documentations
More products

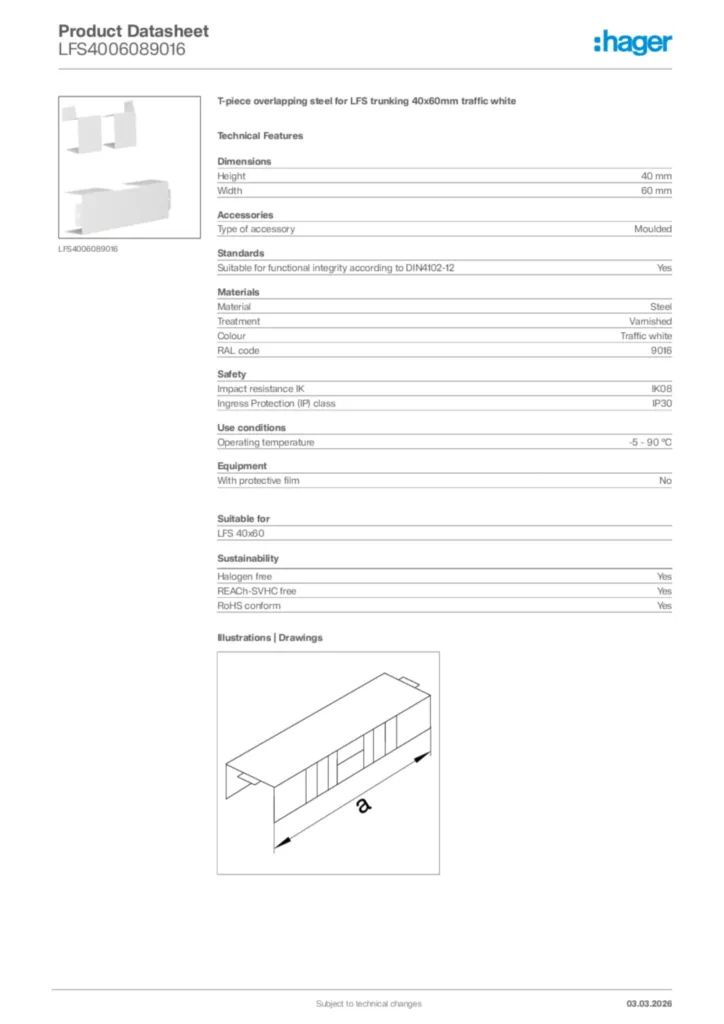

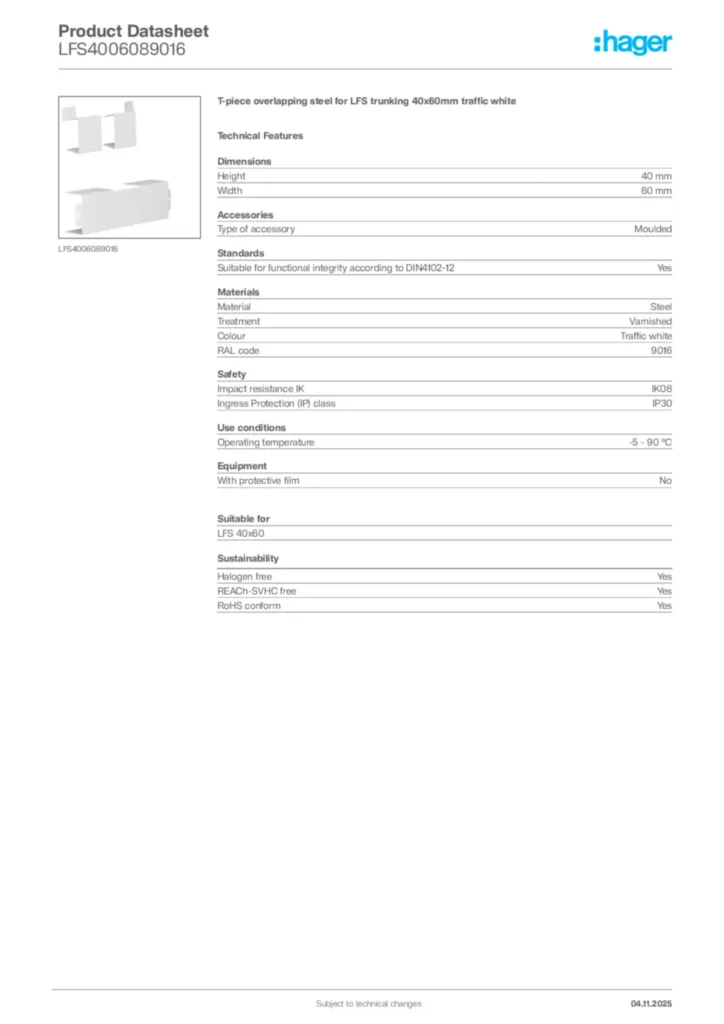

Download the data sheet

Technical properties

Height

40 mm
Width

60 mm
Measurement a

200 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

Yes

Material

Steel
Treatment

Varnished
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Related Series

LFS 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
