The Hager flat angle overlapping steel accessory for LFS 40x60 trunking enables neat 90° horizontal direction changes with a secure overlap for a clean, continuous finish. Varnished steel in traffic white (RAL9016) delivers IK08 impact resistance and IP30 protection, and is suitable for functional integrity per DIN 4102-12. Operating range -5 to 90°C. Moulded design, 40x60 mm, measurement a 50 mm—ideal for durable indoor cable routing.

EAN

4012740007405

Packaging

1 Piece

Cable trunking systems - LF

External corner 90° Overlapping Steel LFS 40x60 IP30 IK08 RAL9016 LFS4006059016

Technical properties
Environmental value
Documentations
More products

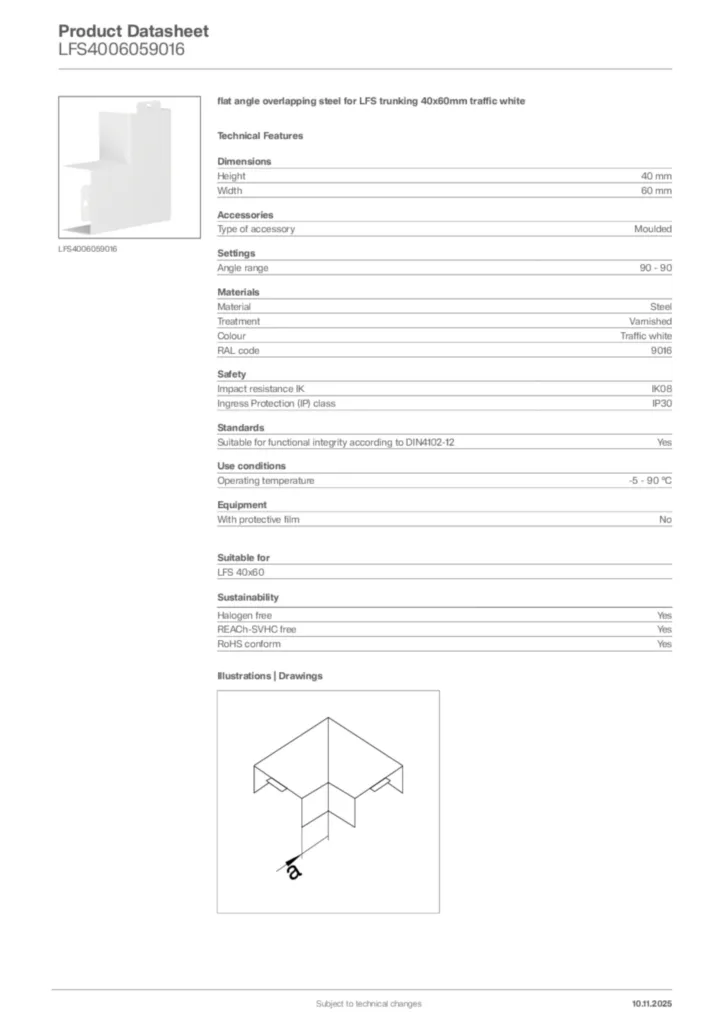

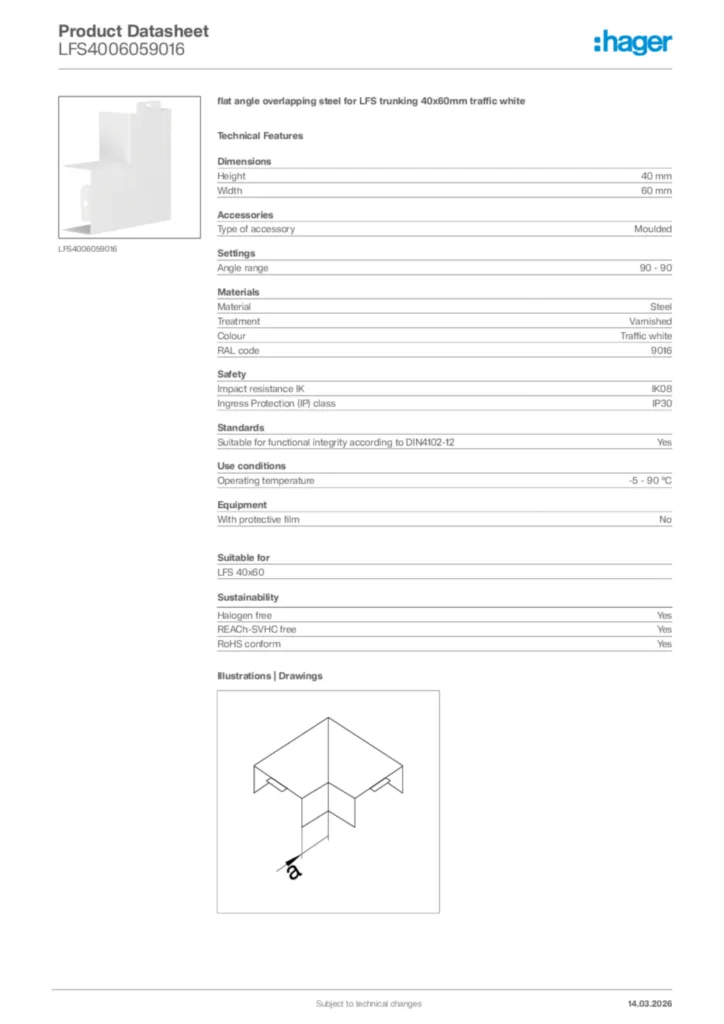

Download the data sheet

Technical properties

Height

40 mm
Width

60 mm
Measurement a

50 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Steel
Treatment

Varnished
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LFS 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
