The Hager internal corner for LFS 40x60 trunking delivers neat 90° inside bends in steel or plaster installations. This moulded, galvanized steel accessory (zinc finish) offers IK08 impact resistance and IP30 protection for robust cable routing. Sized 40x60 mm (a=50 mm), it fits the LFS 40x60 series and supports functional integrity per DIN 4102-12. Operating range -5 to 60°C. Non-overlapping design for a clean finish.

EAN

4012740023054

Packaging

1 Piece

Cable trunking systems - LF

Internal corner overlapping steel LFS 60x200 IP30 IK08 RAL9016 LFS400604VERZ

Technical properties
Environmental value
Documentations
More products

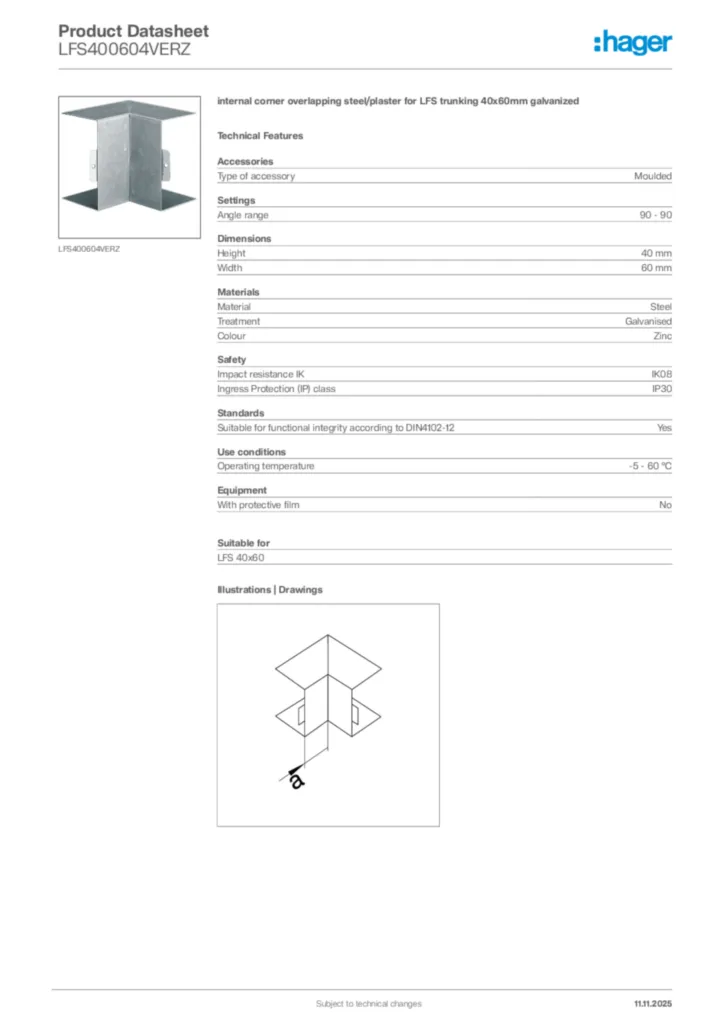

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

40 mm
Width

60 mm
Measurement a

50 mm

Material

Steel
Treatment

Galvanised
Colour

Zinc

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFS 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
