The Hager LFS 40x60 external corner for steel/plaster trunking delivers a clean 90° turn while protecting cables. Galvanized steel with zinc finish ensures durability, IK08 impact resistance, and IP30 protection. Suitable for functional integrity per DIN 4102-12. Dimensions 40×60 mm (a=50 mm). Operating −5 to 60 °C. A moulded accessory for LFS 40x60 runs in residential or commercial installations.

EAN

4012740023047

Packaging

Cable trunking systems - LF

Slotted panel trunking HA7 100x40 halogen-free UL94 V0 RAL7035 2m cover incl. LFS400603VERZ

Technical properties
Environmental value
Documentations
More products

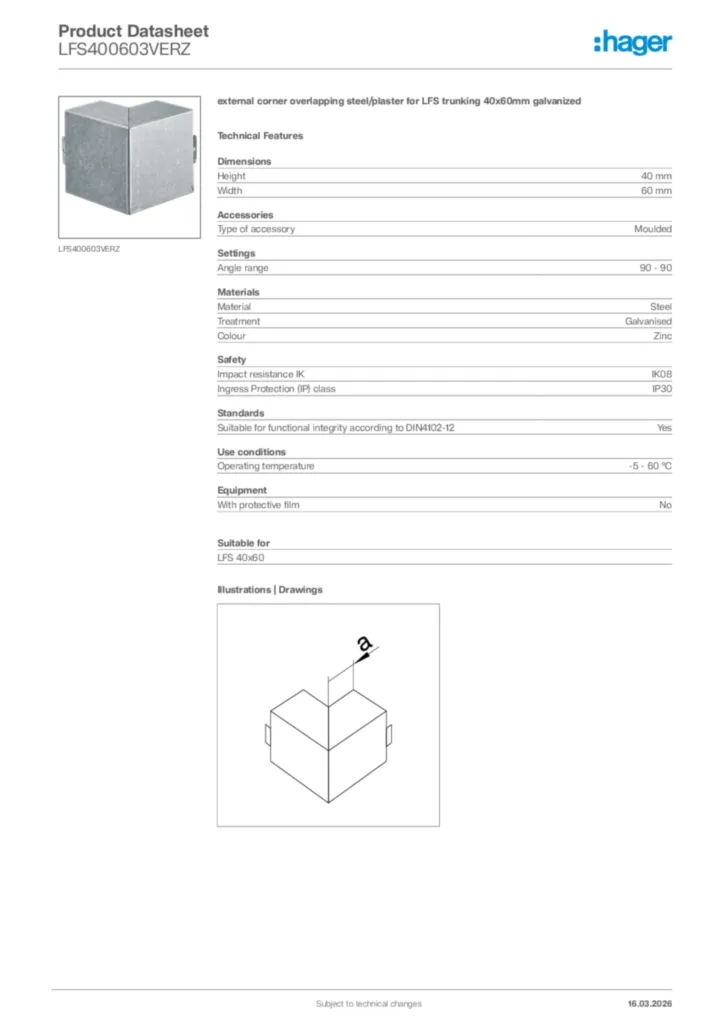

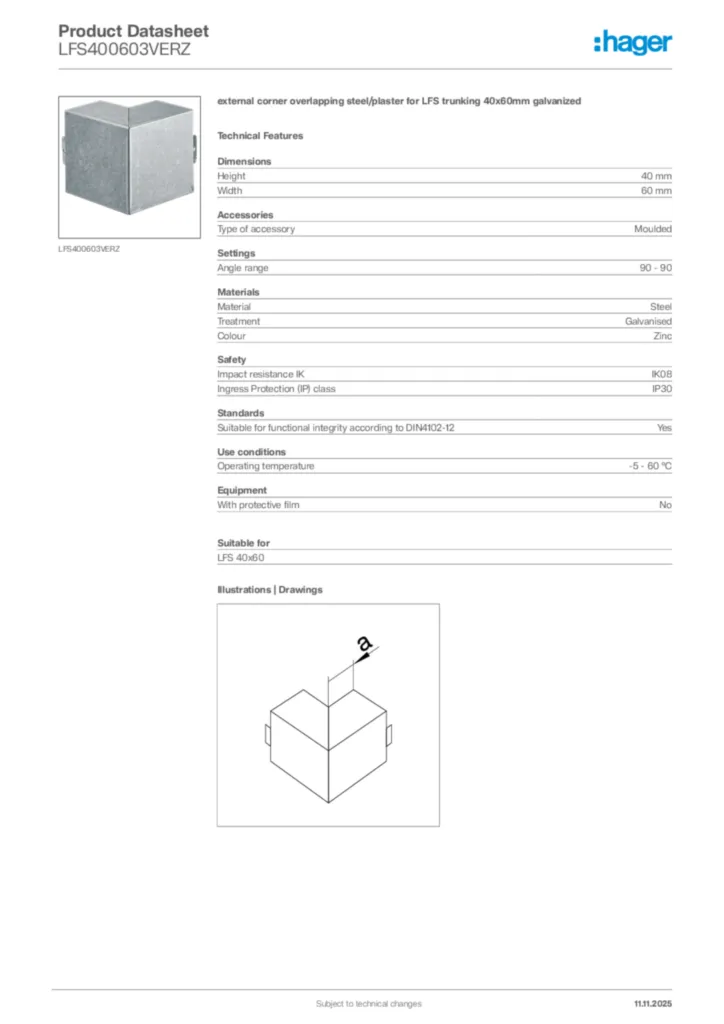

Download the data sheet

Technical properties

Height

40 mm
Width

60 mm
Measurement a

50 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Steel
Treatment

Galvanised
Colour

Zinc

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFS 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
