The Hager external corner overlapping steel for LFS 40x60 trunking in traffic white (RAL9016) forms neat 90° external bends while protecting cables. Varnished steel with IK08 impact resistance and IP30 rating suits robust indoor use. The overlapping design ensures a clean, gap-free finish and supports functional integrity per DIN 4102-12. Dimensions 40x60 mm (a=50 mm) for quick, durable, and aesthetic cable routing.

EAN

4012740007382

Packaging

Cable trunking systems - LF

Endcap Steel LFS Trunking 40x60 IP30 IK08 Traffic White RAL9016 LFS4006039016

Technical properties
Environmental value
Documentations
More products

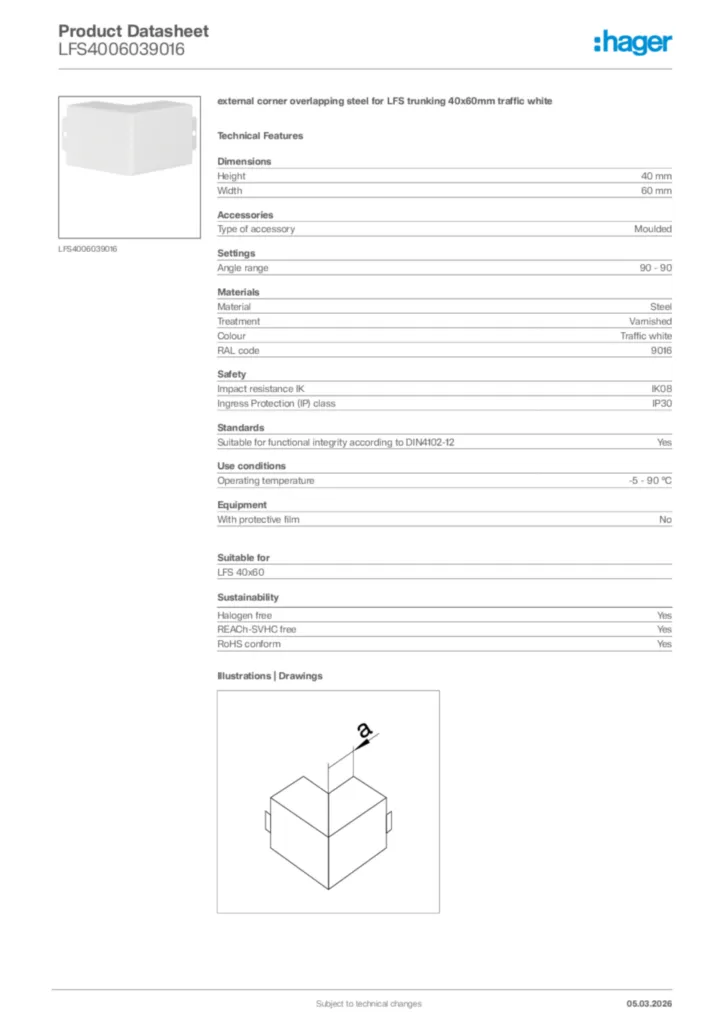

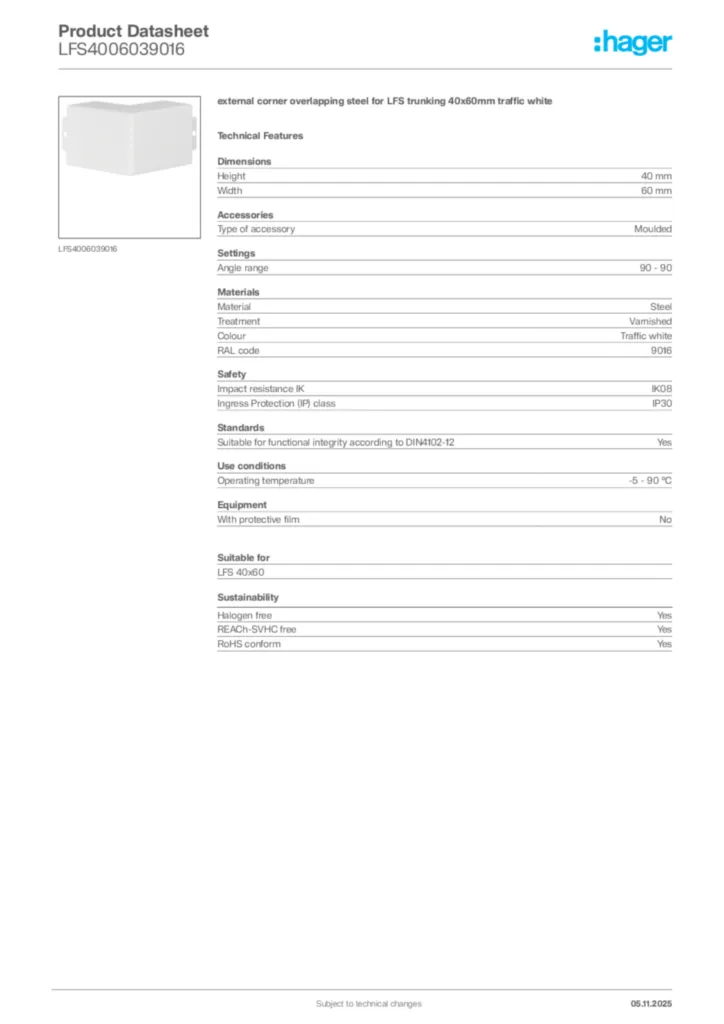

Download the data sheet

Technical properties

Height

40 mm
Width

60 mm
Measurement a

50 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Steel
Treatment

Varnished
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes

Related Series

LFS 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
