The Hager LFR 20x20 mm PVC trunking on coil with adhesive tape delivers neat, surface-mount cable routing for indoor use. Supplied in 20 m, it offers 342 mm² capacity (up to 2 × Ø11 mm cables), 1 compartment, and a RAL 9016 traffic white finish. Rated IK07 and IP40, operating -5 to 60°C. Fast, tool-light installation and easy cut-to-length make it ideal for residential and light commercial applications.

EAN

4012740013741

Packaging

20 Meters

Cable trunking systems - LF

Cable retainer 110mm Click-mount Black PC-ABS for LF/LFF/LFP LFR2002009016A

Accessories
Technical properties
Environmental value
Documentations
More products

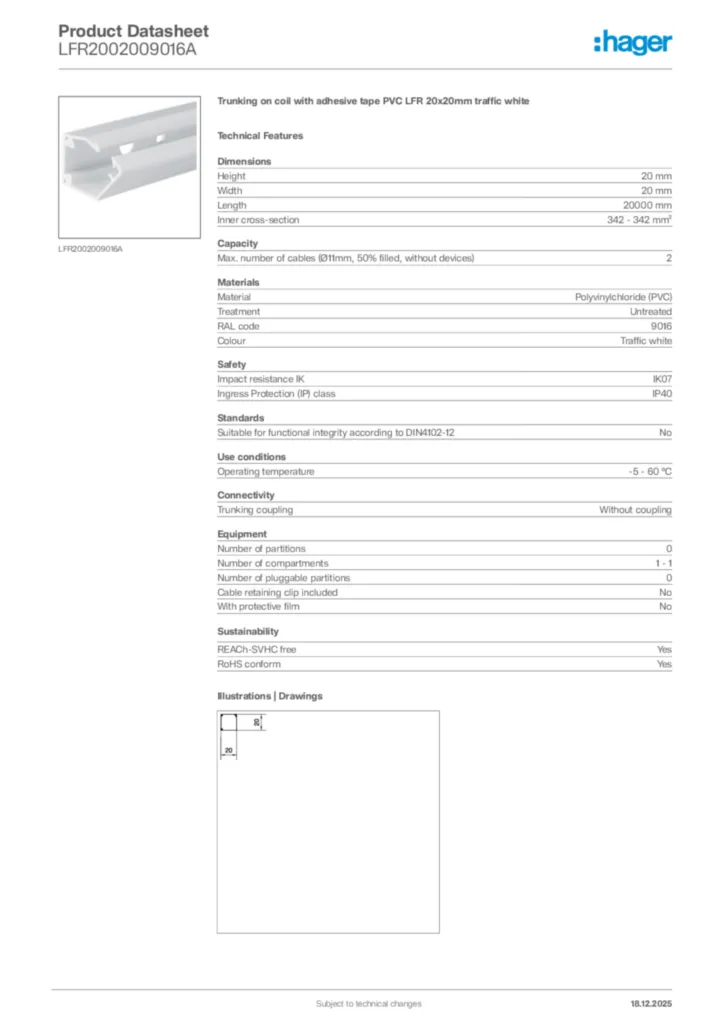

Download the data sheet

Complete your system

Shears for cutting trunking 1 products available

Technical properties

Height

20 mm
Width

20 mm
Length

20000 mm
Inner cross-section

342 - 342 mm²

Type of lid

Hinge

Max. number of cables (Ø11mm, 50% filled, without devices)

2

Material

Polyvinylchloride (PVC)
Treatment

Untreated
RAL code

9016
Colour

Traffic white
Transparent

No

Impact resistance IK

IK07
Ingress Protection (IP) class

IP40

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

Trunking coupling

Without coupling

Number of partitions

0
Number of compartments

1 - 1
Number of pluggable partitions

0
Cable retaining clip included

No
Number of cable retainers per meter

0
With protective film

No

With antibacterial treatment

No

Delivery on roll

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
