The Hager PVC LFR 15x15 mm trunking on coil with adhesive tape provides fast, clean surface cable routing for indoor installations. Supplied in 20 m length, traffic white (RAL9016), it offers 256 mm² capacity (up to one Ø11 mm cable at 50% fill), IP40, IK07 impact resistance, and -5…60°C operation. Single-compartment, no coupling, ideal for retrofit and aesthetic finish on walls or ceilings.

EAN

4012740013734

Packaging

20 Meters

Cable trunking systems - LF

PVC trunking on coil with adhesive tape 7x12mm 20m Traffic white IP40 IK07 LFR1501509016A

Accessories
Technical properties
Environmental value
Documentations
More products

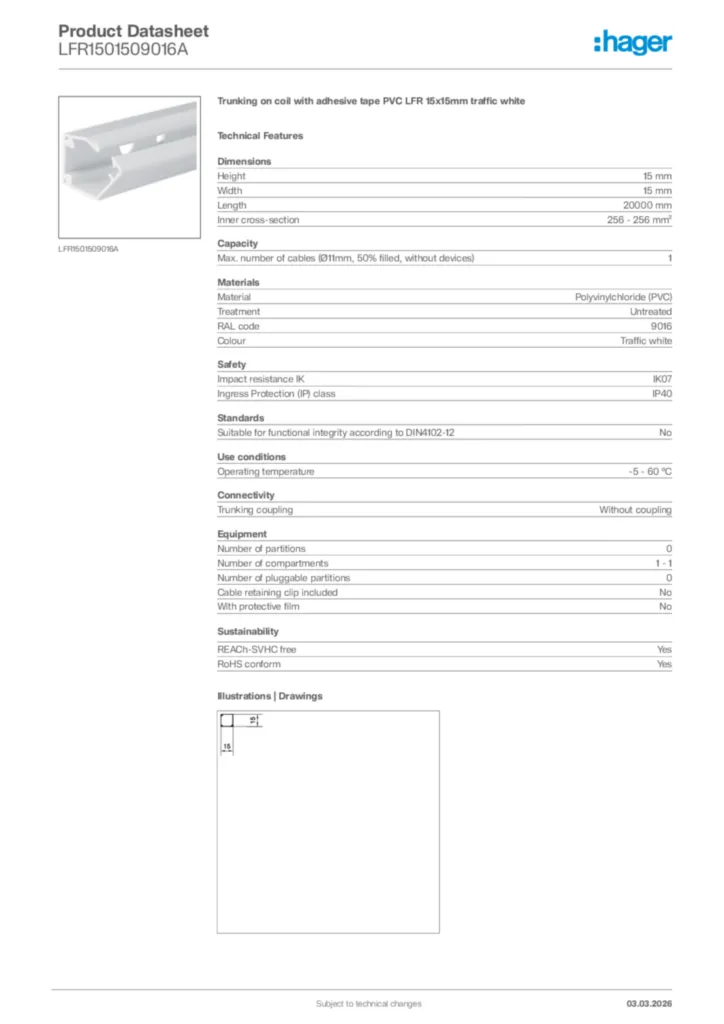

Download the data sheet

Complete your system

Shears for cutting trunking 1 products available

Technical properties

Height

15 mm
Width

15 mm
Length

20000 mm
Inner cross-section

256 - 256 mm²

Type of lid

Hinge

Max. number of cables (Ø11mm, 50% filled, without devices)

1

Material

Polyvinylchloride (PVC)
Treatment

Untreated
RAL code

9016
Colour

Traffic white
Transparent

No

Impact resistance IK

IK07
Ingress Protection (IP) class

IP40

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

Trunking coupling

Without coupling

Number of partitions

0
Number of compartments

1 - 1
Number of pluggable partitions

0
Cable retaining clip included

No
Number of cable retainers per meter

0
With protective film

No

With antibacterial treatment

No

Delivery on roll

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
