The Hager internal corner, halogen‑free, for LF 30x45 mm trunking in stone grey (RAL7030) creates a neat 90° inside bend while maintaining cable routing and low-smoke safety. Molded ABS with IK07 impact resistance ensures durability. Dimensions 30×45 mm, measure A 60 mm. Operating −5 to 60°C. Compatible with LFF 30×45 series for quick, clean installation in residential and commercial runs.

EAN

4012740021173

Packaging

1 Piece

Internal corner for trunking 60x150mm halogen free traffic white RAL9016 IK07 LF3004547030

Technical properties
Environmental value
Documentations
More products

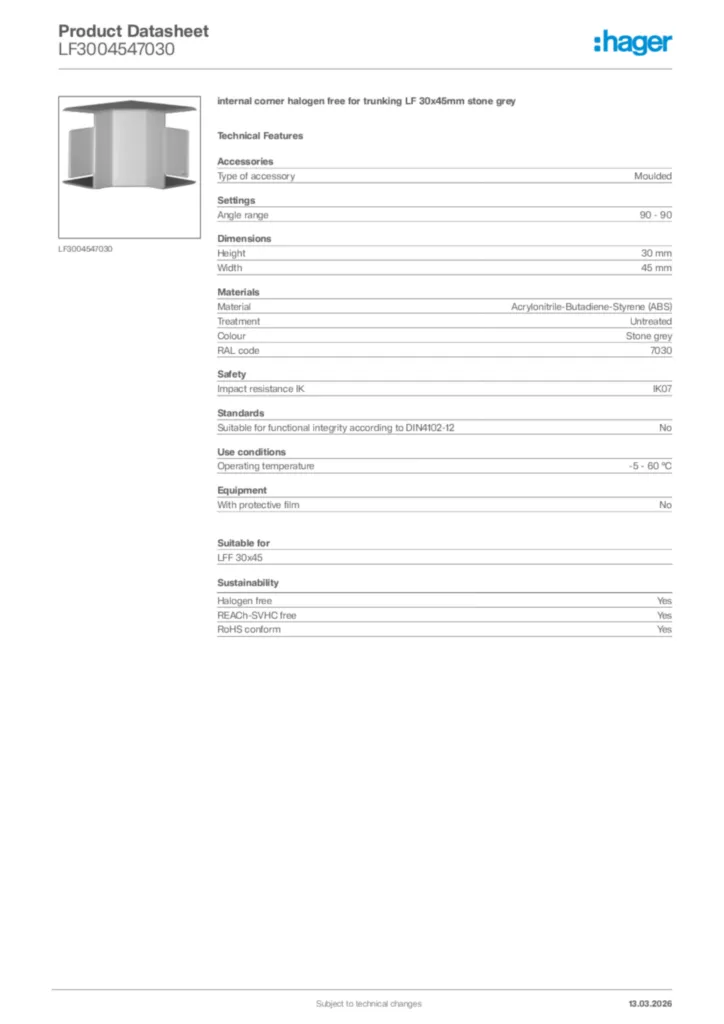

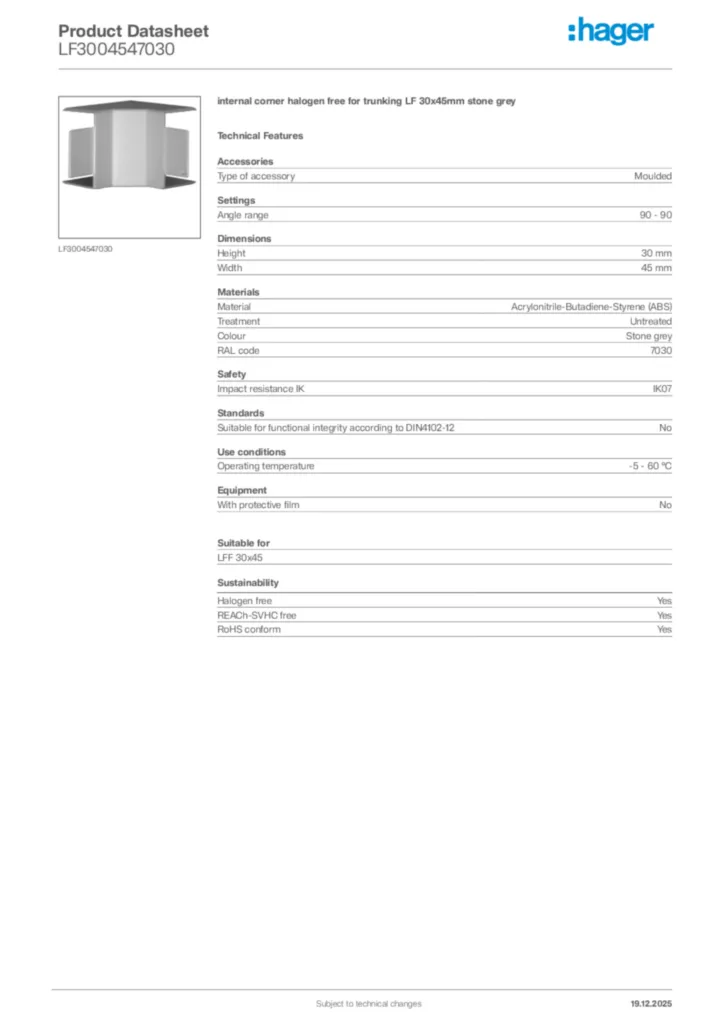

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

30 mm
Width

45 mm
Measurement a

60 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFF 30x45

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
