The Hager external corner, halogen‑free, for LF/LFF 30x45 mm trunking in stone grey (RAL7030) delivers a neat 90° transition while protecting and guiding cables. Moulded ABS with IK07 impact resistance ensures durability and safety from -5 to 60°C. Its precise 30x45 mm fit enables quick, clean installation and consistent aesthetics in residential and commercial runs.

EAN

4012740021135

Packaging

1 Piece

End cap for trunking 60x150 mm Halogen-free Stone Grey IK07 snap-on/screw LF3004537030

Technical properties
Environmental value
Documentations
More products

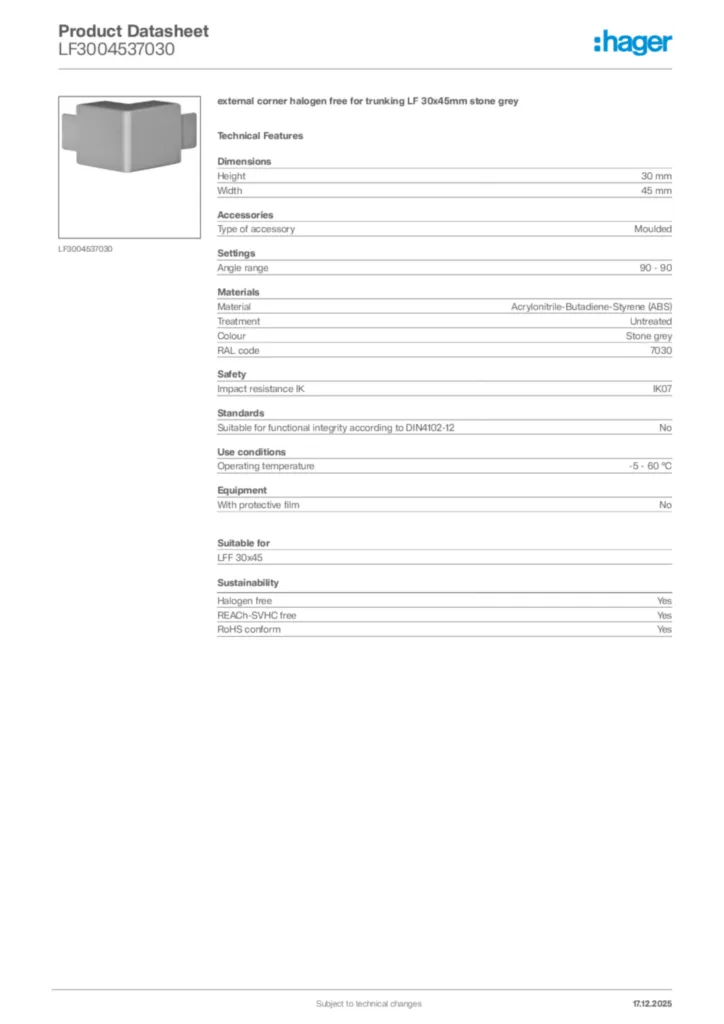

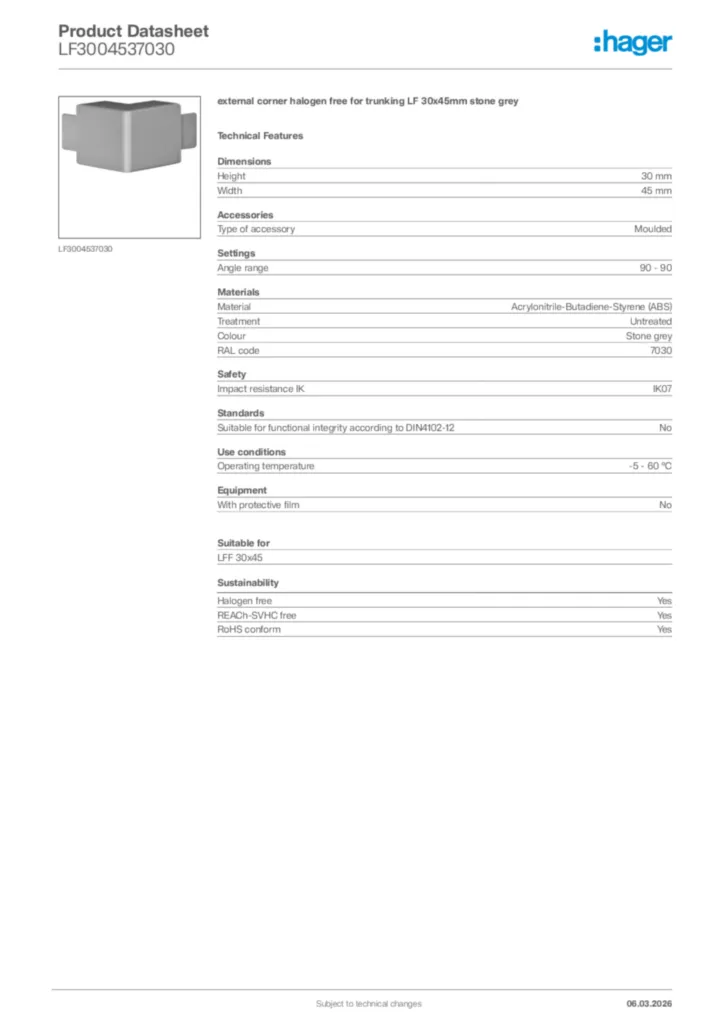

Download the data sheet

Technical properties

Height

30 mm
Width

45 mm
Measurement a

30 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFF 30x45

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
