    • KD190B
    EAN
    3250613740481
    VPE
    10 pieces
    • Busbar

    Insulated busbar 1P 100A fork 20mm² 57M KD190B

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Insulated busbar 1P 100A fork 20mm² 57M

    KD190B

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

    • Protective cap/strip for phase busbar 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Protective cap/strip for phase busbar
    • KZ059

      Protective cover fork KDN & KDS
      €0.00  / *

    Technical characteristics

    Elec­tric current
    • Rated current IN
      100 A
    Archi­tec­ture
    • Number of poles
      1
    Dimen­sions
    • Length
      1000 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4000 V
    • Rated oper­a­tional voltage Ue
      415 - 415 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      20 mm²
    • Connect­or/plug type
      Phase busbar with fork
    Capa­city
    • Number of modules
      57

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Insulated busbar 3P 63A fork 10mm² 12M (English)
    PDF
    470,84 kB
    REACH declaration KD190B
    PDF
    RoHS report KD190B
    PDF

    Downloads

    • Image KD190B | Hager UK

      Product Image KD190B

    • GeneratedProductDatasheet

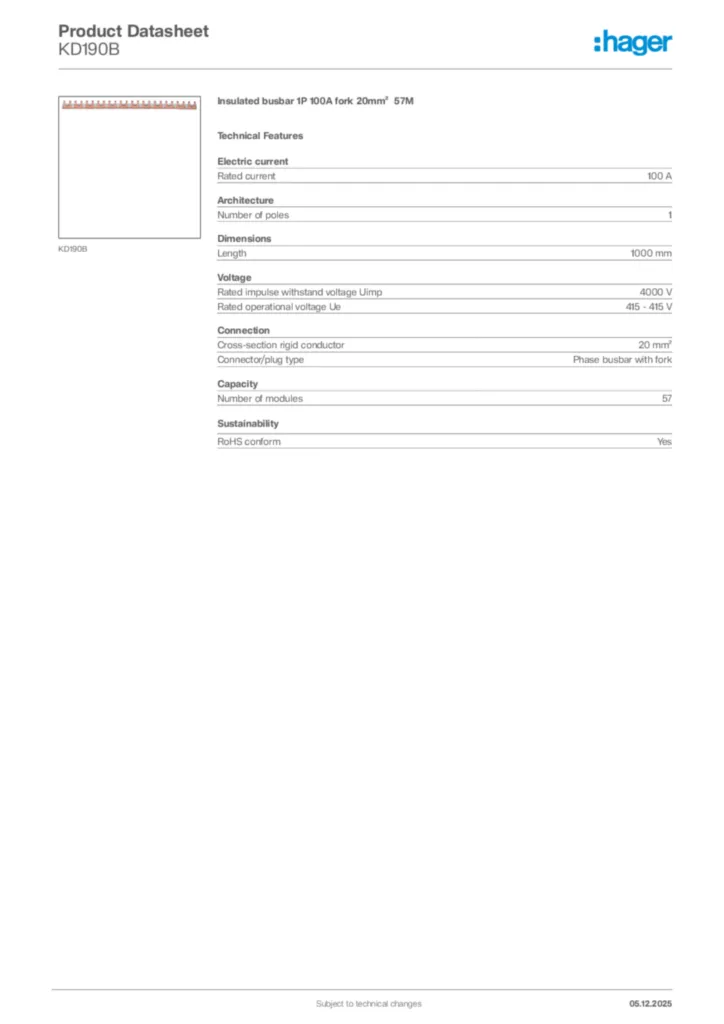

      Image Hager Product data sheet KD190B | Hager UK

      Hager Product data sheet KD190B

      Insulated busbar 1P 100A fork 20mm² 57M

      PDF

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-01-12 | Hager UK

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager UK

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
    More documentation
